For Sale by Arlington Machinery
Surplus Record Dealer Since 1998
Location: Lake Zurich, IL
Contact Chris / Garrett
Phone Number: 847...> Show Phone Number 847-957-9731
Let the seller know you found their listing on Surplus Record!
$2,750 USD
Description
Description

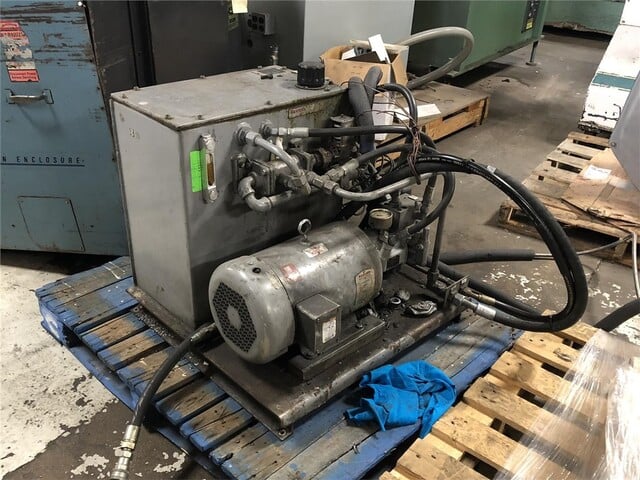

- 10 HP Rexroth Hydraulic Power Unit

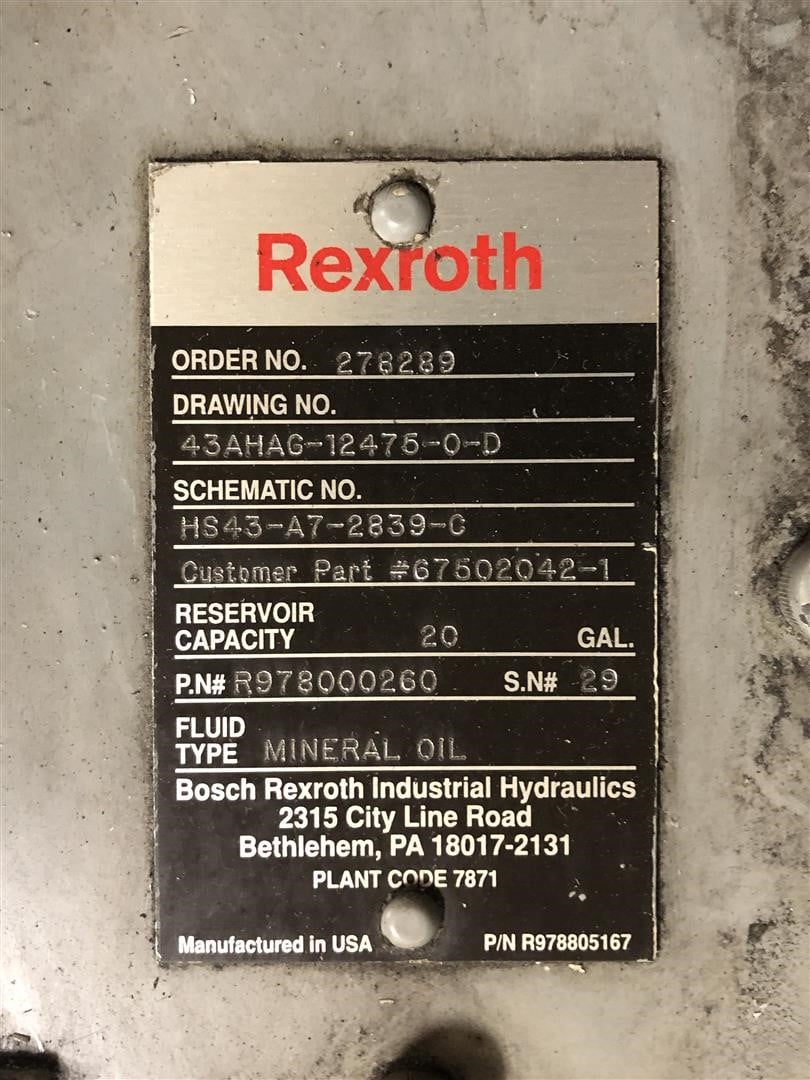

- Order Number: 278289
- Reservoir Capacity: 20 Gallons
- Fluid Type: Mineral Oil

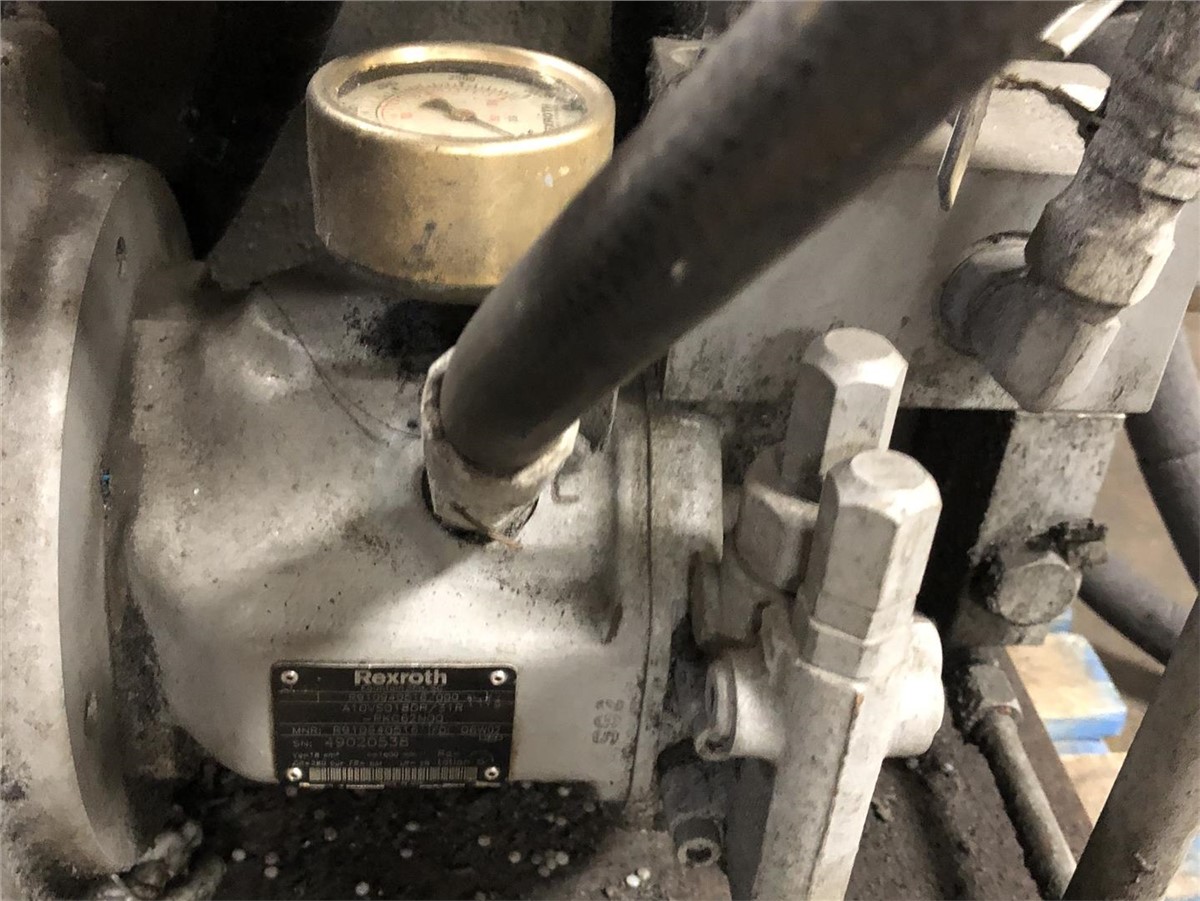

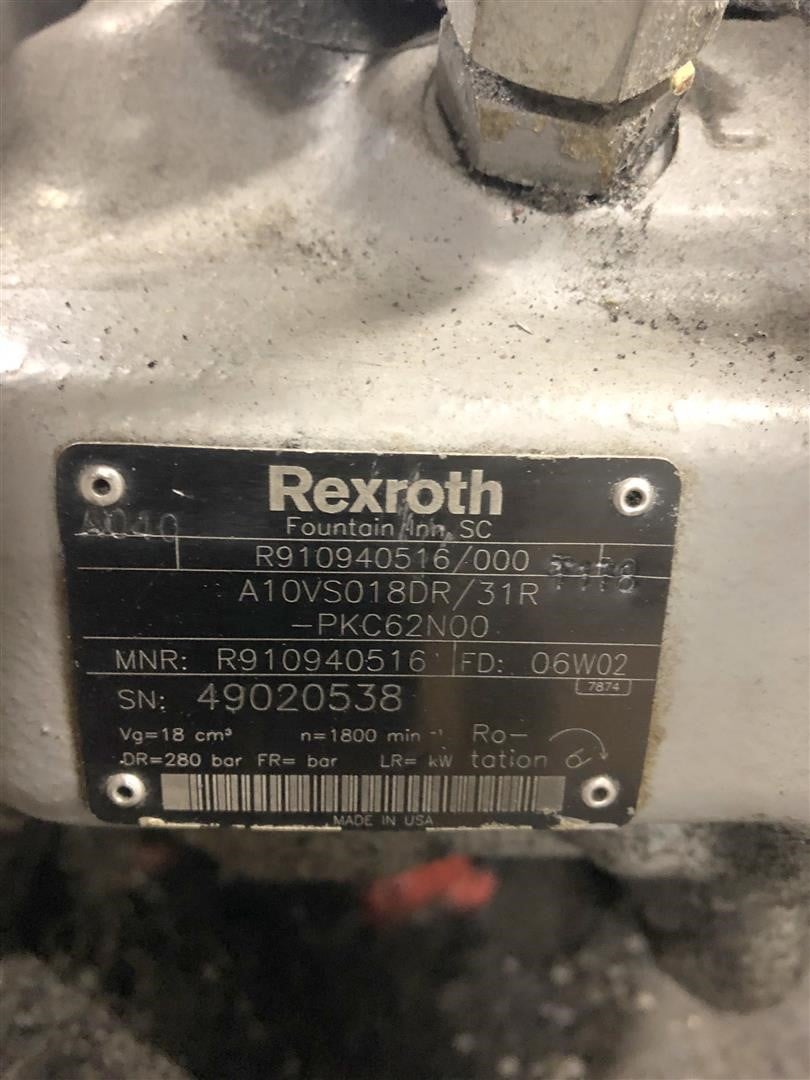

- Pump Specifications: Series: A A10VSO - Axial Piston Variable
- Pump Displacement Size: 18 - 1.10 cu-inch (18.0cc)
- Compensator Type: DR - Pressure Control Series: 31
- Shaft Rotation: R - Clockwise
- Seal Material: P - NBR
- Drive Shaft: K - Parallel shaft SAE with key, not for through drive
- Flow Rating: 8.50 GPM @ 1800 Speed Rating (Continuous): 3300 RPM

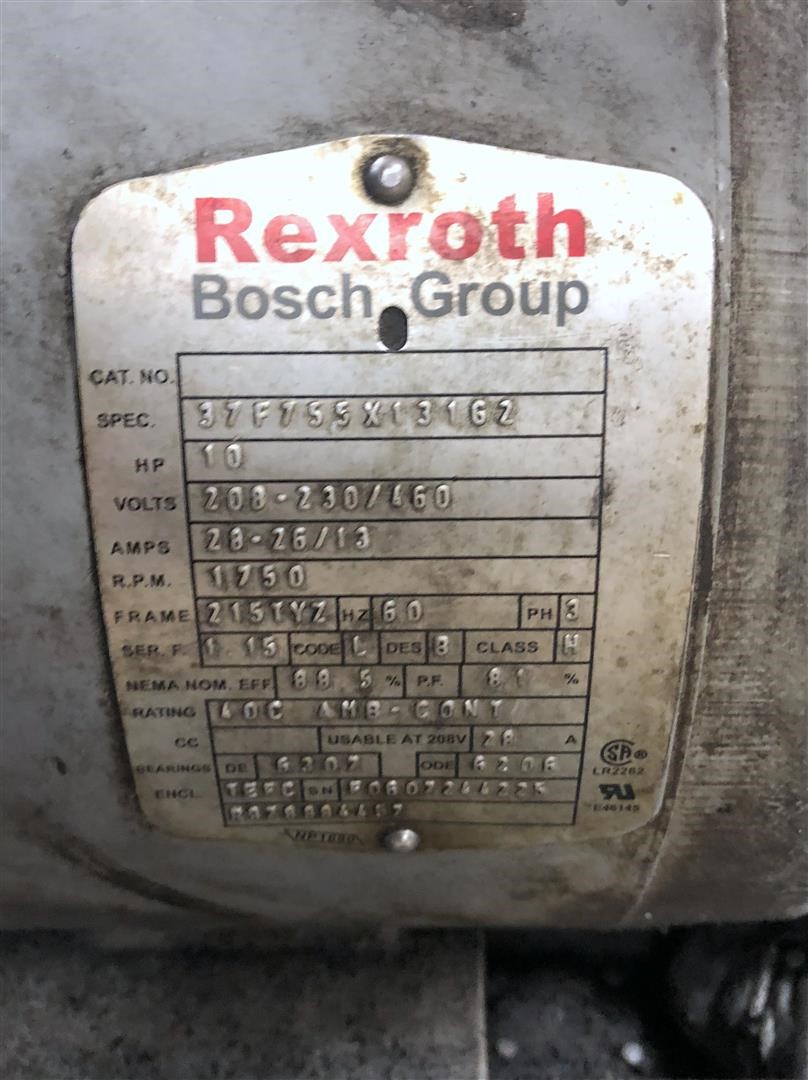

- Motor Specifications:
- 10 HP AC TEFC Motor
- 1750 RPM
- Voltage: 208-230/460
- AMPS: 28-26/13
- Frame: 215TYZ
- Spec: 37F755X131G2
- Approximate Dimensions: 36" L x 30" W x 30" H
Inquire Further with Arlington Machinery!
