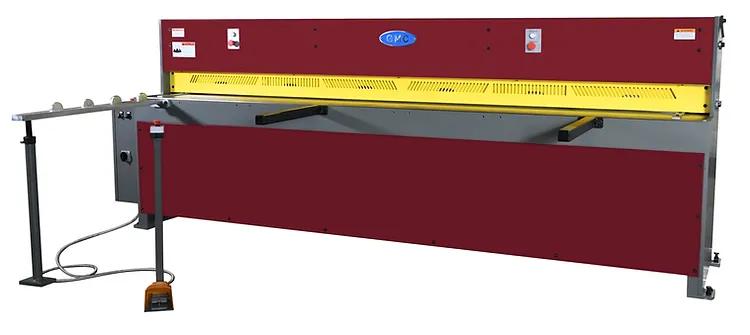

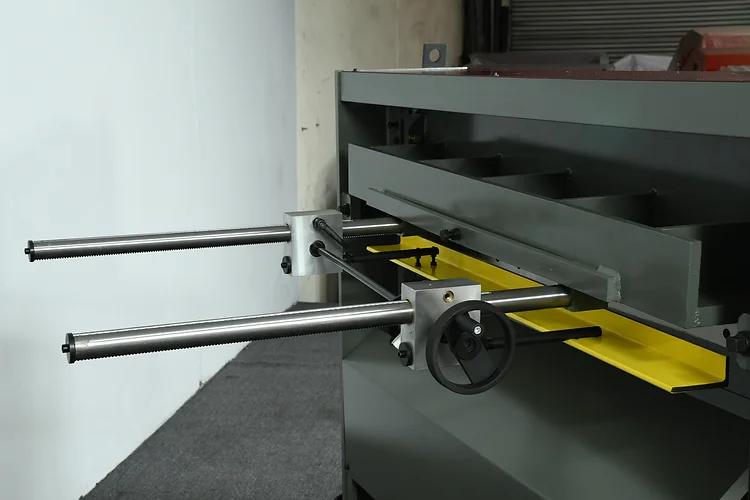

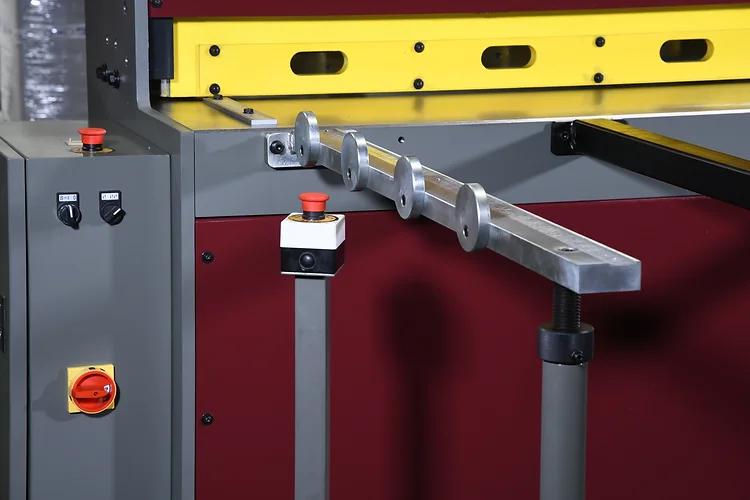

New GMC 6 Ft x 10 ga. Mechanical Shearing Machine - EPS-0610M Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop. ISO 9001 certified American design and Taiwan quality machine HD all steel construction for maximum rigidity Precision driven gearbox Full length 30 strokes per minute 60 long squaring arm with inch / mm scale spring hold-downs high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes One year warranty for parts 26 manual back gauge with one side handwheel 60 long squaring arm with inch / mm scale, mounted on right side of the table 2 each 24 front support arms full length finger guard Removable safety foot pedal control One set of upper & lower blades Cutting Capacity Mild Steel - HRS (tensile 60,000 PSI) Stainless Steel (tensile 85,000 PSI) Soft Aluminum (tensile 28,000 PSI) min. thickness 6' x 10Ga. 6' x 14Ga. 6' x 1/4" 22Ga Blade Lenght 80" Strokes per minute 28 Worktable height 32" Front support arm 36" Back gauge 26" Manual Back gauge Blade Rake Angle 2.5 Degree Main Motor 7-1/2HP, 3 Phase 25A Prewired: 220VAC (15A/440VAC optional) Machine weight Shipping weight 5,550 lbs. 5,650 lbs. Machine dimensions Shipping dimensions 100" x 43" x 68" 100" x 43" x 68"
6’ X 10 Gauge Hydraulic Shear with Foot Pedal Control and Power Backgauge., Cutting Length: 6’, Mild Steel: 7 Ga, Stainless Steel: 11 Ga, Blade Length: 6’ 10”, Stroke Speed: 32 - 50 SPM, Number of Hold Downs: 11, Hold Down Pressure: 5.6 Tons, Front Support: 40”, Back Gauge: 24” ...more
