Description

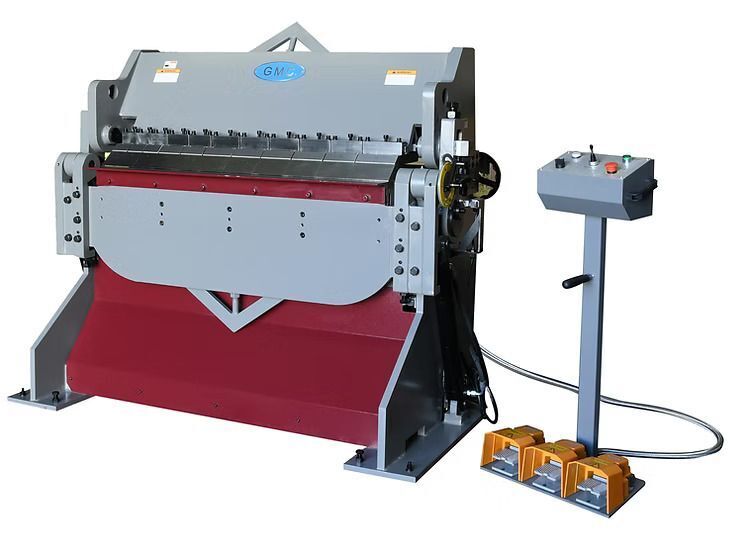

Our 4 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake. Taiwan Machines ISO 9001 certified Hydraulic adjustment for opening Hydraulic power clamping for workpiece 26 manual back gauge with handwheel 1 manual beam adjustment ( front and back ) Min. reverse bend is (20mm) Heavy welded all steel construction for maximum rigidity Germany Rexroth Hydraulic logic system centrally located and quiet A wide guidebody ensures strong, stable, smooth & accurate movement Total pieces fingers assortment: 3/ 3pcs, 4/2pcs, 5/5pcs and 6/1pc Central control panels on each side for convenient operation Jog and auto operation modes Overload protection and disconnect switch One year warranty for parts Standard Equipment: Assorted fingers 26 manual back gauge with one side handwheel operation Angle set up dial Hydraulic clamping system Foot pedal control for hydraulic clamping & auto mode Max Bending Length: 4 Bending Capacity: Mild Steel - HRS (tensile 60K PSI) Stainless Steel (tensile 85K PSI) Soft Aluminum (tensile 28K PSI) Minimum material thickness 10 Ga. 12 Ga. 1/4" 26Ga Opening hem max thickness Closing hem max thickness 16Ga x 4' 20Ga x 4' Bend Degree: 135 Degrees Max. Box & Pan Depth: 153mm=6.02 Large Beam Opening: 3" Manual go-to back gauge: 26 Oil tank capacity 10 gal. Hydraulic oil Shell #68 or equivalent Main Motor 5 HP, 3 Phase Prewired: 220V/15AMP Optional: 440V/10AMP Machine weight 4,050 lbs. Shipping weight 4,100 lbs. Machine dimensions 67" x 46" x 67" Shipping dimensions 80 x 40 x 65
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage., Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or ...more
