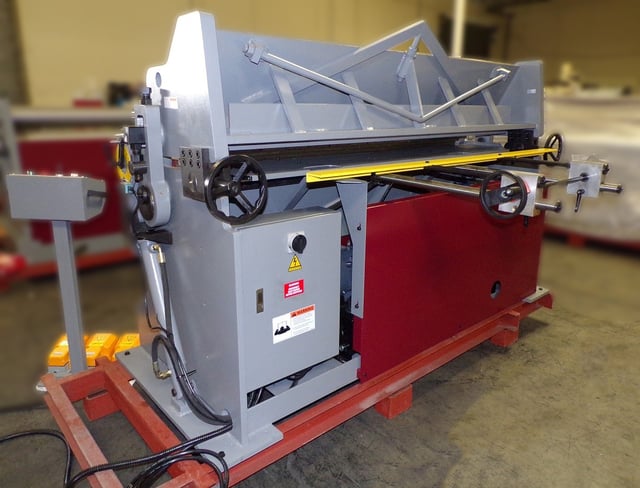

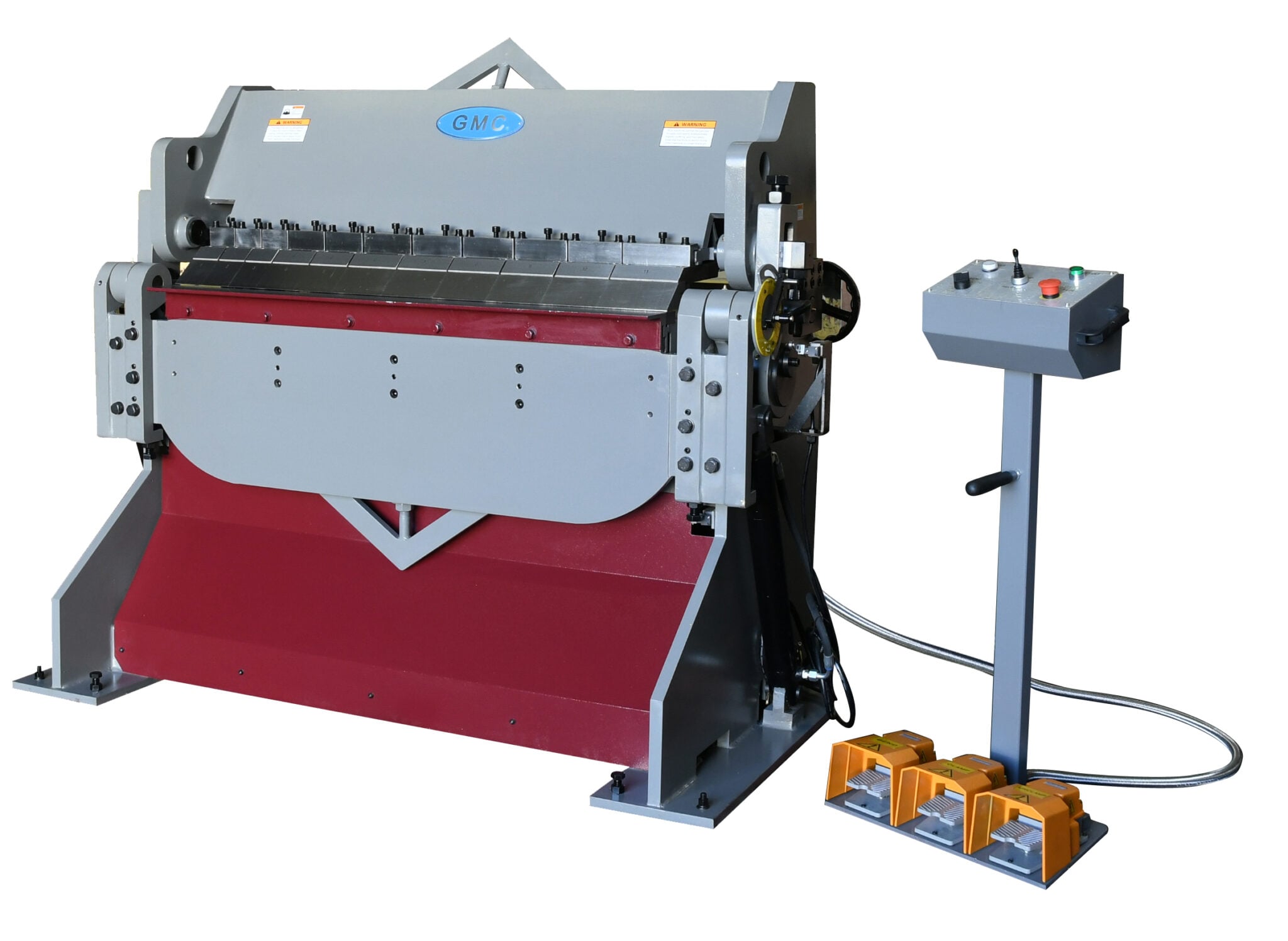

GMC 4′ x 10 Gauge Heavy Duty Hydraulic Box & Pan Brake
Inventory #7230
Model: HBB-0410
Specifications:
Capacity:
Bending Length: 4′
Mild Steel: 10 gauge
Stainless Steel: 12 gauge
Bend Angle: 135°
Box Depth: 6″
Large Beam Opening: 3″
Oil Tank: 10 gallons
Motor: 5 hp / 220v, 440v / 3 ph
Standard Features:
Iso 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping of workpiece
1″ manual beam adjustment (front and back)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Wide guidebody ensures strong, stable, smooth, and accurate movement
Assorted fingers (3″, 4″, 5″, 6″)
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:
Assorted fingers
Angle set up dial
Back Gauge
Hydraulic clamping system
(2) Safety protection side guards
Foot pedal control for hydraulic clamping
Mechanical Specifications:
Overall Dimensions: 88″ L x 51″ W x 67″ H
Overall Weight: 4,150 lbs.
FOB Factory – Contact us for availability
Optional Equipment:
One-piece straight clamping bar finger instead of assorted fingers
Extra one-piece straight clamping bar finger
NC Control angle set up with miniki nc controller
