Description

SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included

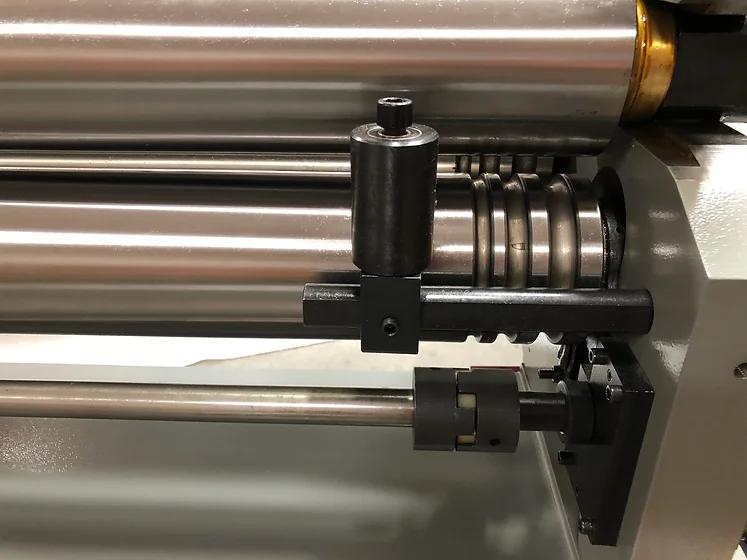

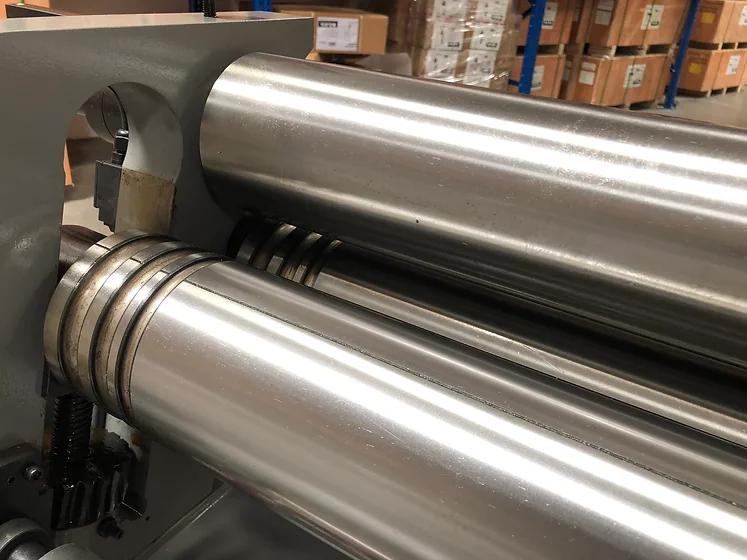

3/8, and 5/8 grooves on rollers

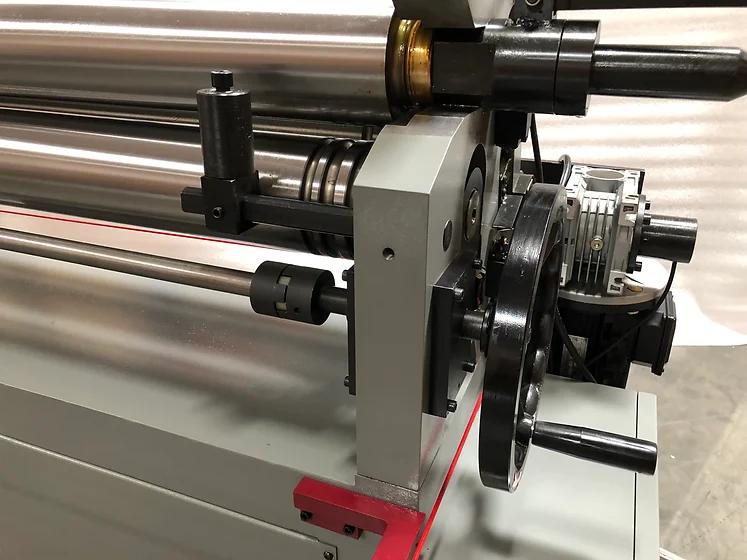

One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Capacity:
Mild Steel
Stainless Steel
soft aluminum
min. thickness
8'2" x 10Ga.
8'2" x 14Ga.
8'2" x 1/4"
26Ga.
Roll Dia. 6"Min. Bending Dia. Inch8"Pre-bend inch0.12"Rolls Speed ft/min17Rolls Opening 1/2"Main Motor4HP 3PH 220V or440VWeight4,550 lbs. Overal Dimensions 132" x 35" x 56"
Length of Rolls: 8'
Max Thickness (gauge): 10 gauge
# Rolls: 3
Roll Diameter: 6"

Inquire Further with Wheeler Machinery Sales!
