Description

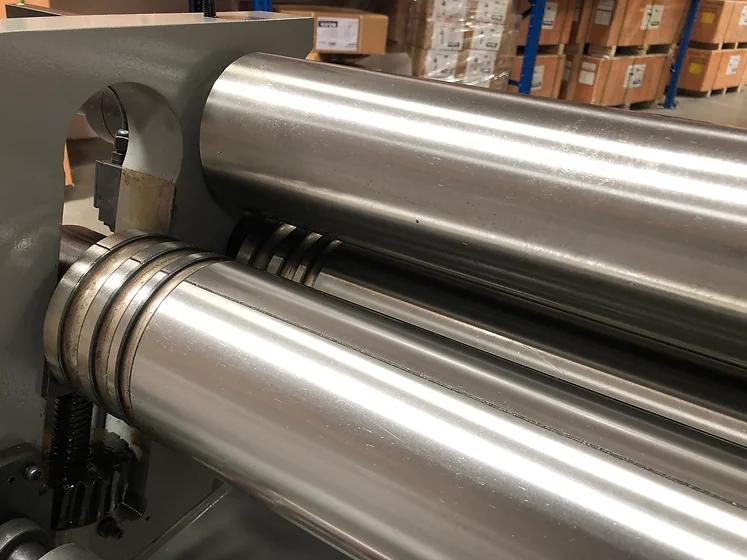

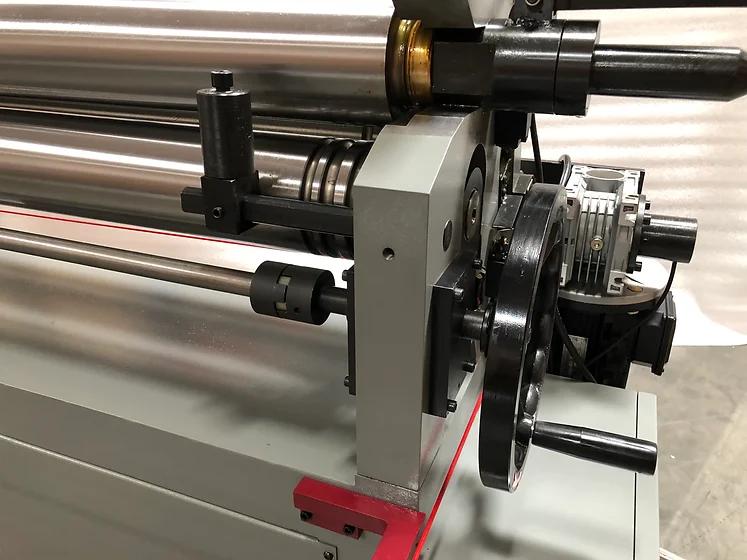

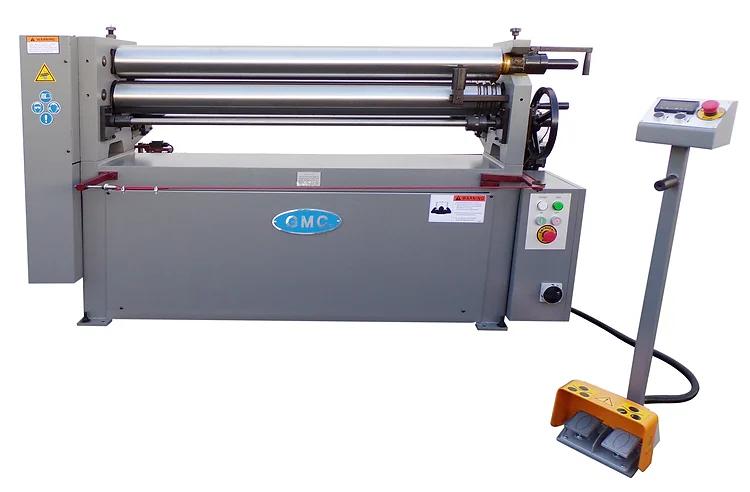

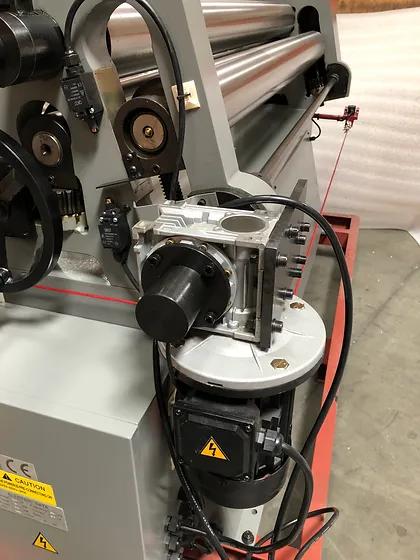

SO 9001 certified Taiwan machines All (3) rolls are hardened rolls, up to 50-52 HRC 3-rollers are driven to perform high accuracy Adjustable cone attachment included 3/8, and 5/8 grooves on rollers One wheel one-side operated for bending roll One wheel one-site operated for pinch roll (E model is powered) Heavy duty casting frame Heavy duty all steel welded construction 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance. Quiet running operation Easy swing-out top roller Safety line all around the machine for emergency stop All rolls run forward and reverse Safety type forward/reverse foot pedal Power source 220V, (option: 440V, 3 phase) One year industrial warranty for parts Capacity: Mild Steel Stainless Steel soft aluminum min. thickness 10' x 10Ga. 10' x 14Ga. 10' x 1/4" 26Ga Roll Dia. 6.70"Min. Bending Dia. Inch9"Pre-bend inch0.12"Rolls Speed ft/min17Rolls Opening 1/2"Main Motor7 1/2HP 3PH 220V or 440VWeight5,150 lbs. Overal Dimensions 152" x 35" x 56"
THE ROLSHEAR 3D5 PLATE BENDER/ROLL IS A MECHANICAL FABRICATION MACHINE THREE ROLLS AND CONFIGURED WITH AN INIT PINCH SYSTEM. THIS PLATE ROLL IS RATED FOR A MAXIMUM CAPACITY OF 10 GAUGE MILD STEEL OVER A 60-INCH LENGTH. THE MACHINE S 5-FOOT LONG ROLLS, EACH WITH A 6-INCH DIAMETER. ROLL ADJUSTMENT FUNCTIONALITY IS SPLIT ...more
