For Sale by Frain Industries
Surplus Record Dealer Since 1991
Location: Carol Stream, IL
Contact Katie Frain
Phone Number: 630...> Show Phone Number 630-629-9900
Let the seller know you found their listing on Surplus Record!
Description

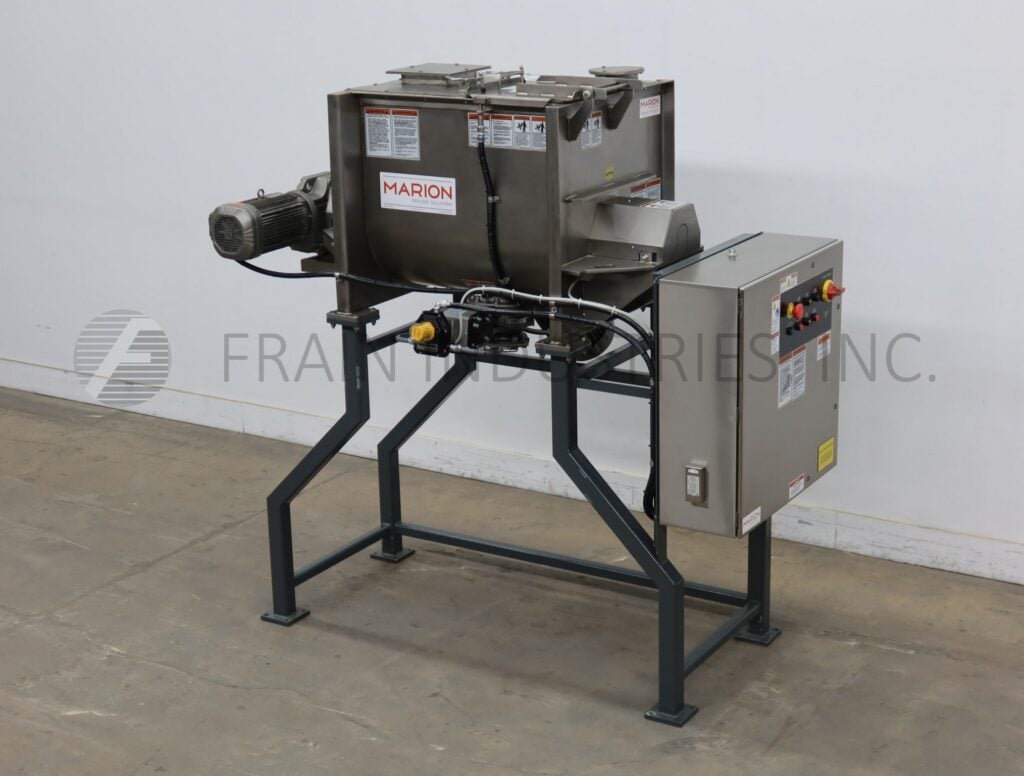

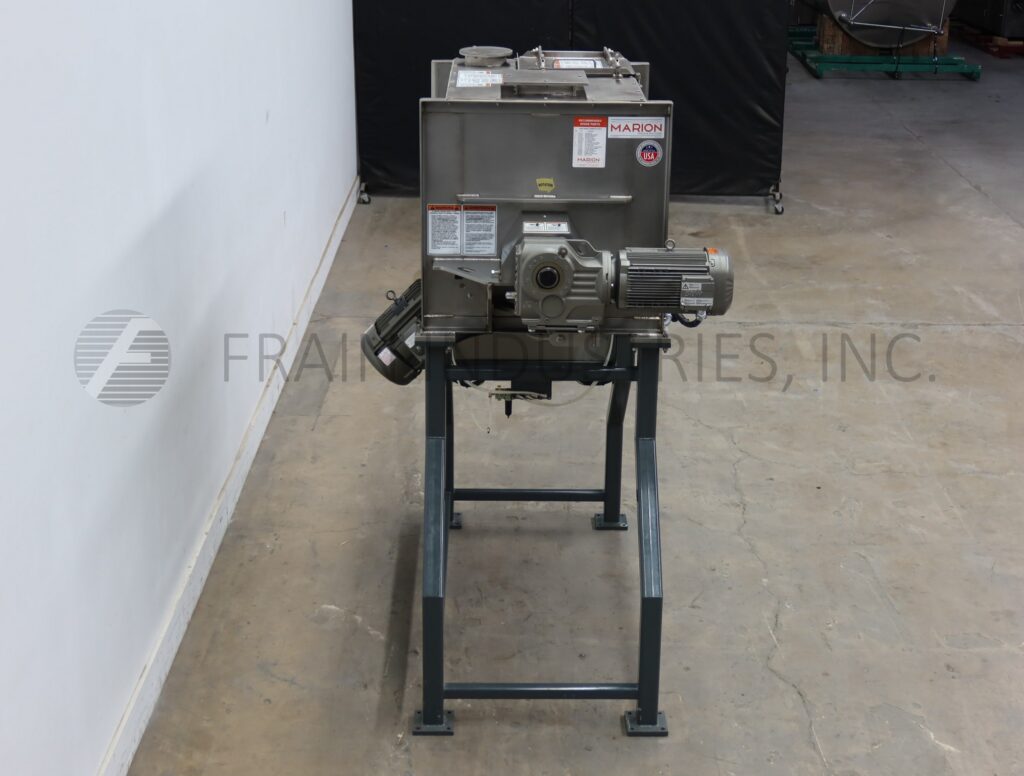

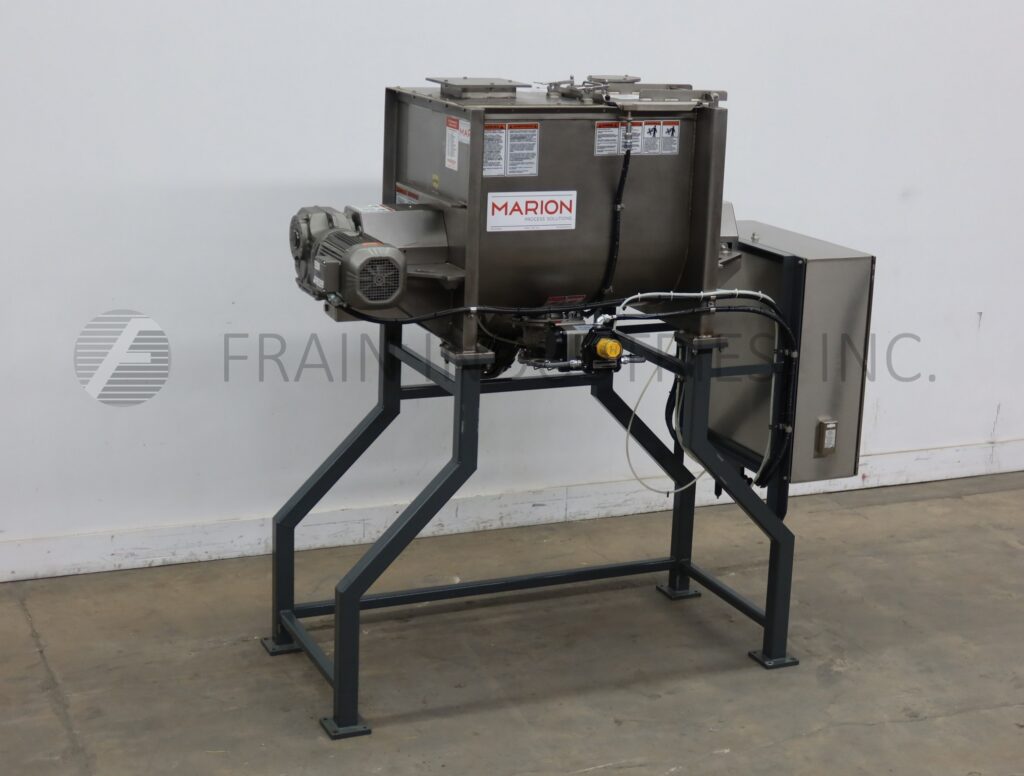

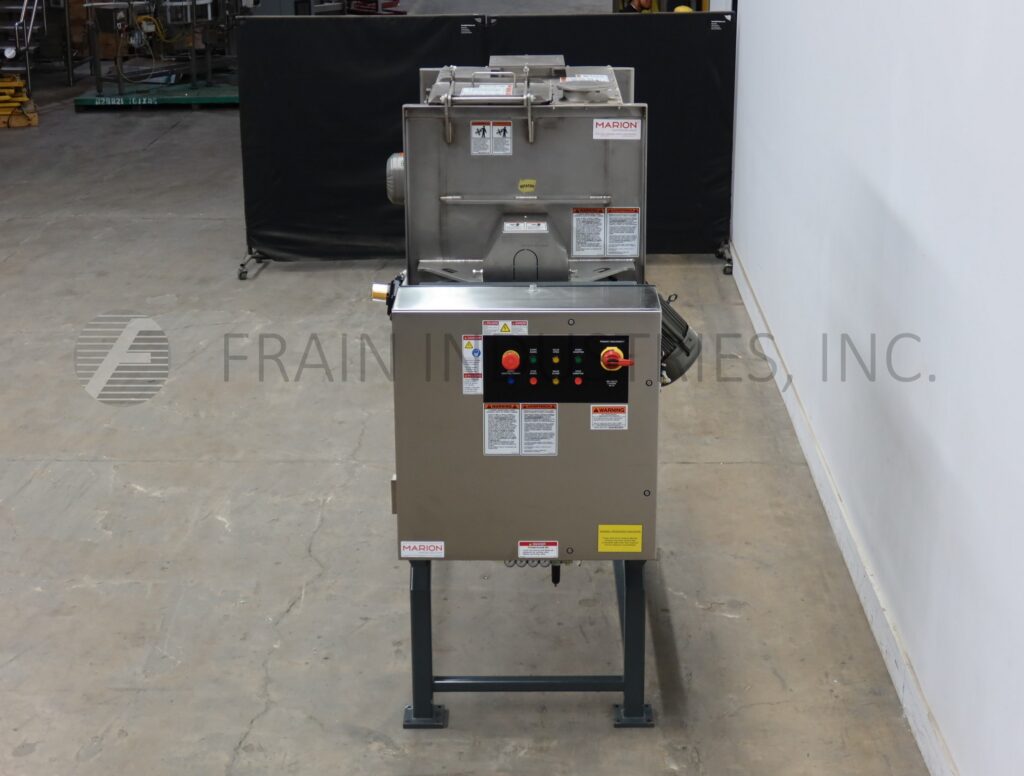

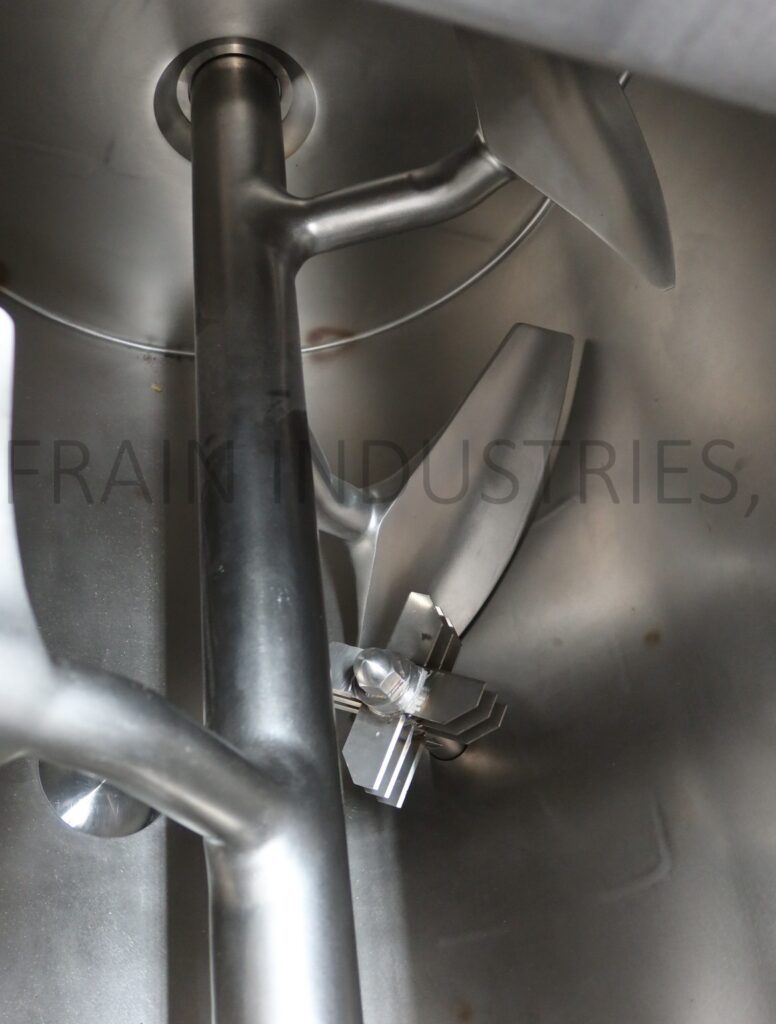

Marion, model BP4-2436-UW40, 10 ft³, 304 stainless steel paddle mixer with lbs of product per hour – depending on materials, application and machine configuration. Inner chamber dimensions: 36" in Length x 24" In Width x 29" in Depth. Equipped with 14" long x 14" wide clamp down cover with a 90" infeed height, 3" OD shaft with 14" long x 6" wide paddles powered by a 7½ hp drive, high speed chopper powered by a direct drive 10 hp motor, 4" diameter center bottom discharge with pneumatic slide gate valve and 47" floor clearance, EXPO Type Z MiniPurge Dust Protection for pressurizing control cabinet. Mounted on (4) leg painted frame.
Top ports:
(1) 8" x 8" ID / 12" x 12" OD flange
(1) 6" ID / 8½" OD flange
OAD: 90" L x 57" W x 94" H
Get Your Price from Frain Industries!
