Description

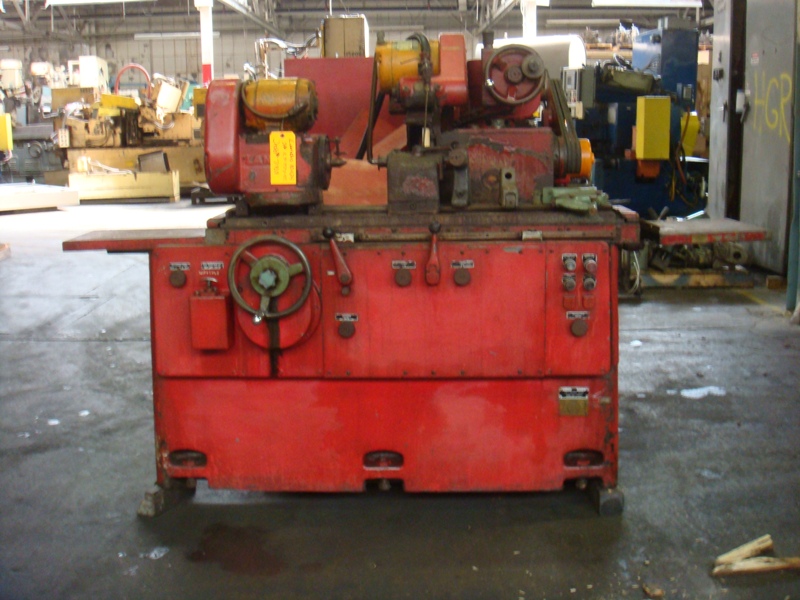

10" x 24" R Landis Universal Cylindrical Grinder, Hyd. Traverse Table with Traverse Rate Control, R.H. & L.H. Tarry, I.D. Spindle, In Base Coolant Pump, As Is
10 x 24 R LANDIS UNIVERSAL CYLINDRICALGRINDER
PRIVATE
S/N LT-777-05 Year: 1962
STANDARD CATALOG SPECIFICATIONS
CAPACITY
Maximum swing over table........................... 10 15/16
Nominal distance between centers................... 25 9/16
Swivel table graduated to an angle of:
Toward wheel head.................................. 8 Degrees
Away from wheel head............................... 3 Degrees
Swivel table graduated taper per foot:
Toward wheel head..................................4 1/2
Away from wheel head............................... 2
GRINDING WHEEL HEAD
Grinding wheels regularly supplied:
(Diameter x Face x Hole).......................... 12 x 5 x 1.5
Swivel range: Lower swivel, right left.......... 220 Degrees
Upper swivel, right left.......... 180 Degrees
HEAD STOCK FOOT STOCK
Head stock spindle taper........................... Jarno No. 10
Foot stock spindle taper........................... Jarno No. 6
Number of work rotation speeds..................... Infinite
Range of work speeds............................... 30 to 600 RPM
Head stock spindle nose(American Lathe Std)....... 5
MISCELLANEOUS
Number of table traverse speeds.................... Infinite
Range of table traverse speeds in/per/min.......... 3 to 280
Accuracy of table reversal at all traverse rates... .001
Table tarry adjustment -Infinite (LH RH)........ 0 to 5 Sec
Mechanical hand table traverse:(Rate per revolution at
hand wheel) Slow:.... 1/10 Rapid................ 1
Distance from floor to work centers................ 46 1/2
Automatic in feed at table reversal:(Diameter reduction)
Minimum............... .0001 Maximum............ .0025
Minimum movement necessary to reverse the table.... 1/16
Wheel head movement per turn of hand wheel:
Minimum............... .0005 Maximum............ .050
Minimum in feed increment in terms of diameter reduction:
....................................................0001
POWER REQUIREMENTS
Wheel head motor ..... 2 HP Head stock motor...... 1/3 HP
Wheel head motor...... 1760 R.P.M.
Hydraulic pump motor.. 2 HP Coolant pump motor.... 1/8 HP
EQUIPPED WITH
Hydraulic traverse table with traverse rate control.
R.H. L.H. Tarry.
In base coolant pump.
I.D. spindle.
Attached panel.
FLOOR SPACE REQUIRED......................... 59 1/2 x 144 1/2
WEIGHT.......................................6,000 Lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
10 x 24 R LANDIS UNIVERSAL CYLINDRICALGRINDER
PRIVATE
S/N LT-777-05 Year: 1962
STANDARD CATALOG SPECIFICATIONS
CAPACITY
Maximum swing over table........................... 10 15/16
Nominal distance between centers................... 25 9/16
Swivel table graduated to an angle of:
Toward wheel head.................................. 8 Degrees
Away from wheel head............................... 3 Degrees
Swivel table graduated taper per foot:
Toward wheel head..................................4 1/2
Away from wheel head............................... 2
GRINDING WHEEL HEAD
Grinding wheels regularly supplied:
(Diameter x Face x Hole).......................... 12 x 5 x 1.5
Swivel range: Lower swivel, right left.......... 220 Degrees
Upper swivel, right left.......... 180 Degrees
HEAD STOCK FOOT STOCK
Head stock spindle taper........................... Jarno No. 10
Foot stock spindle taper........................... Jarno No. 6
Number of work rotation speeds..................... Infinite
Range of work speeds............................... 30 to 600 RPM
Head stock spindle nose(American Lathe Std)....... 5
MISCELLANEOUS
Number of table traverse speeds.................... Infinite
Range of table traverse speeds in/per/min.......... 3 to 280
Accuracy of table reversal at all traverse rates... .001
Table tarry adjustment -Infinite (LH RH)........ 0 to 5 Sec
Mechanical hand table traverse:(Rate per revolution at
hand wheel) Slow:.... 1/10 Rapid................ 1
Distance from floor to work centers................ 46 1/2
Automatic in feed at table reversal:(Diameter reduction)
Minimum............... .0001 Maximum............ .0025
Minimum movement necessary to reverse the table.... 1/16
Wheel head movement per turn of hand wheel:
Minimum............... .0005 Maximum............ .050
Minimum in feed increment in terms of diameter reduction:
....................................................0001
POWER REQUIREMENTS
Wheel head motor ..... 2 HP Head stock motor...... 1/3 HP
Wheel head motor...... 1760 R.P.M.
Hydraulic pump motor.. 2 HP Coolant pump motor.... 1/8 HP
EQUIPPED WITH
Hydraulic traverse table with traverse rate control.
R.H. L.H. Tarry.
In base coolant pump.
I.D. spindle.
Attached panel.
FLOOR SPACE REQUIRED......................... 59 1/2 x 144 1/2
WEIGHT.......................................6,000 Lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
