Description

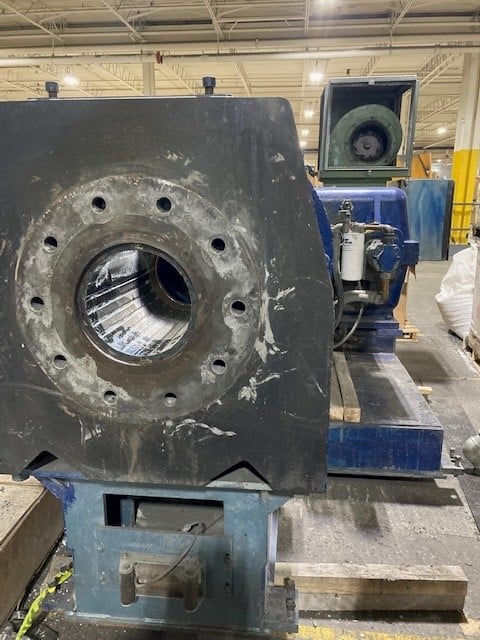

10/165mm Davis Standard Dual Dia. Pelletizing Line
DESCRIPTION
DAVIS STANDARD DUAL DIAMETER VENTED EXTRUDER 10/165 mm NEW 1990
FEEDING SECTION:
FROM 10 INCHES DIAMETER DOWN TO 165 MM DIAMETER (CONICAL) GROOVED TYPE
GEAR BOX MODEL 165-1000 HP 500 OR KW 372, SAFETY FACTOR 1.32
GEAR RATIO 28:1 DYNAMIC THRUST 1035000 LBS
EXTRUDER RPM 62

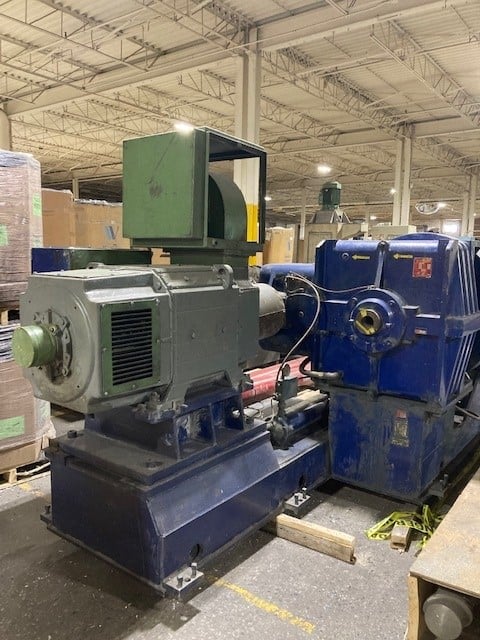

DC MOTOR RELIANCE
RATING 500 HP
ARMATURE VOLTAGE 500 VDC ARMATURE AMPS 791 ADC
SHUNT VOLTAGE300 VDC SHUNT AMPS 6.07/4.22 ADC
FRAME 8508ATZ, DPFC SPEED 1750/2000 RPM
DIRECT DRIVRE TO THE GEAR BOX

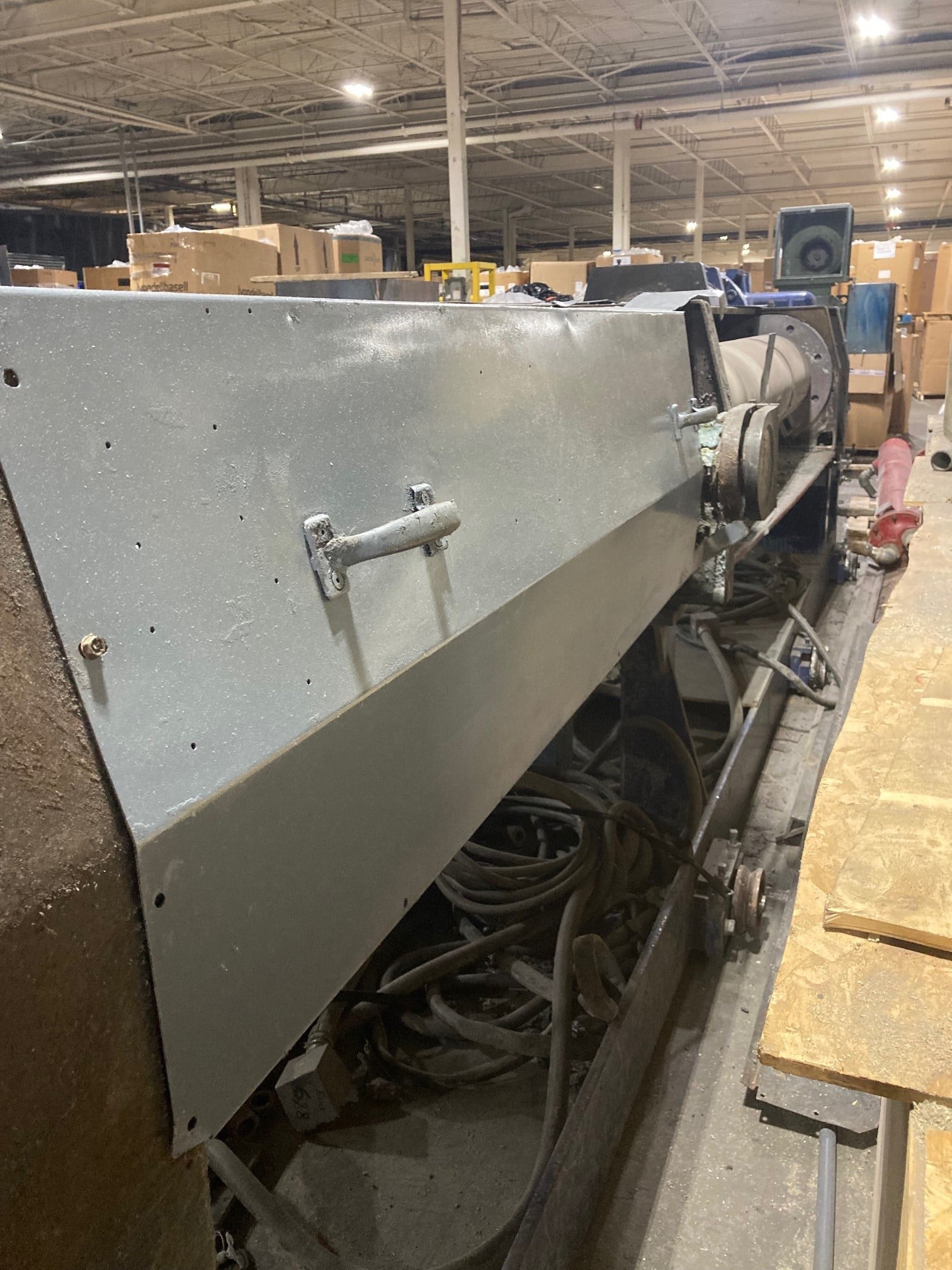

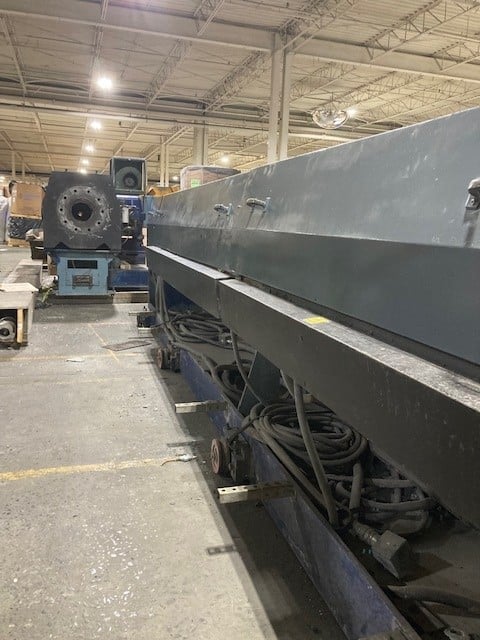

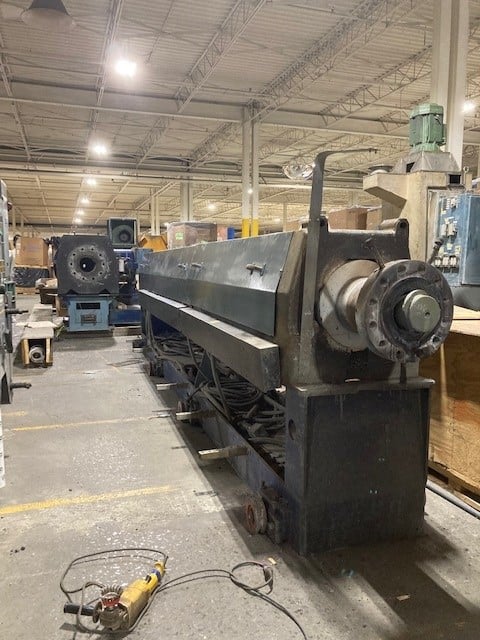

BARREL 165 MM DIAMETER (VENTED)
L/D 35/1
BI-METALLIC
SCREW (TWO SECTION)
FIRST PIECE 10.00 INCHES DIAMETER GOING CONICAL
SECOND PIECE 165 MM DIAMETER DOUBLE STAGE

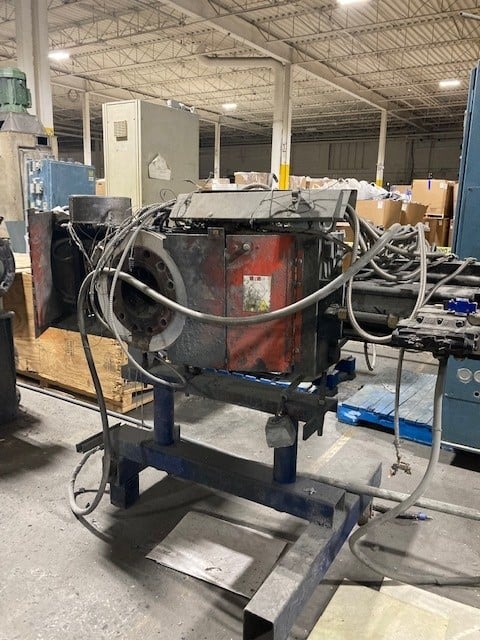

SCREEN CHANGER (BERINGER) 8 1/4
SLIDE TYPE WITH HYDRAULIC PISTON
SLIDE WITH TWO BREAKERS 8,250 INCHES DIAMETER

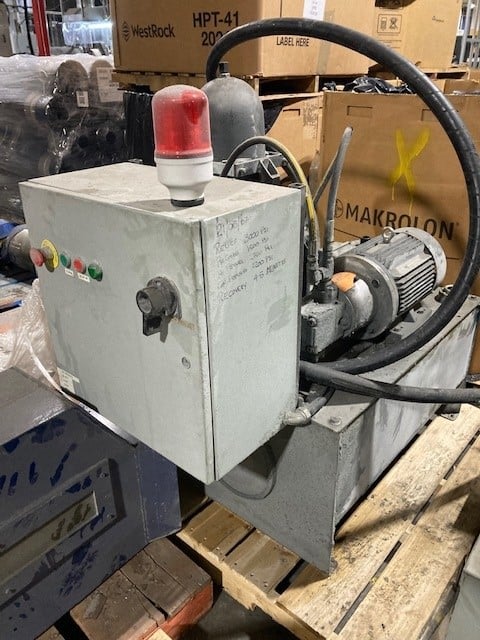

HYDRAULIC POWER UNIT 2500 PSI WITH ACCUMULATOR BERRINGER MOTOR 5 HP 6 PH 60 HZ
DC DRIVE MODEL DC6-800-4
INPUT 480 VOLT, 3 PHASE 50/60 HZ 656 AMPS OUTPUT 0-500 VDC, 800 AMPS, 500 HP
DC DRIVE
HEATERS (8 ZONES) CERAMIC TYPE

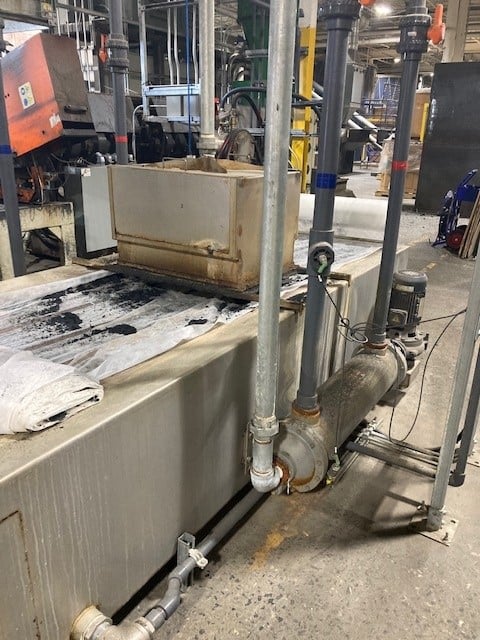

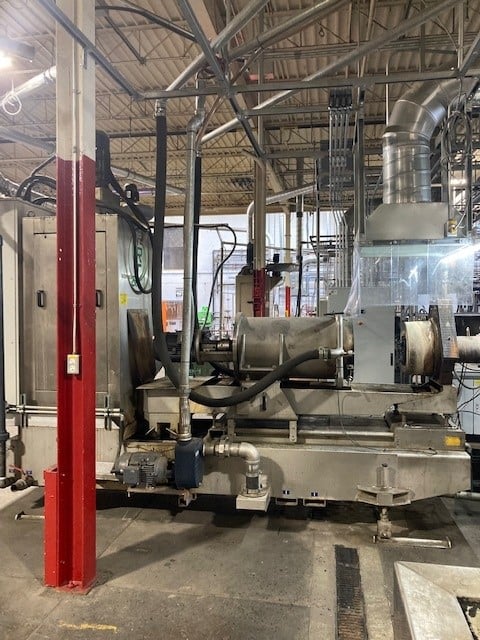

PELLETIZER PRT ITALY
NOTE; COMES WITH SPARE NEW SCREW * BARREL
COMES WITH SPARE 500 HP DC MOTOR (REBUILT 2 YEARS AGO)
NOTE: ALL NEW ELECTRICS NEW
NOTE: COMPANY WAS PROCESSING LDPE FILM (2000 POUNDS/PER/HOUR)
DESCRIPTION
DAVIS STANDARD DUAL DIAMETER VENTED EXTRUDER 10/165 mm NEW 1990
FEEDING SECTION:
FROM 10 INCHES DIAMETER DOWN TO 165 MM DIAMETER (CONICAL) GROOVED TYPE
GEAR BOX MODEL 165-1000 HP 500 OR KW 372, SAFETY FACTOR 1.32
GEAR RATIO 28:1 DYNAMIC THRUST 1035000 LBS
EXTRUDER RPM 62
DC MOTOR RELIANCE
RATING 500 HP
ARMATURE VOLTAGE 500 VDC ARMATURE AMPS 791 ADC
SHUNT VOLTAGE300 VDC SHUNT AMPS 6.07/4.22 ADC
FRAME 8508ATZ, DPFC SPEED 1750/2000 RPM
DIRECT DRIVRE TO THE GEAR BOX
BARREL 165 MM DIAMETER (VENTED)
L/D 35/1
BI-METALLIC
SCREW (TWO SECTION)
FIRST PIECE 10.00 INCHES DIAMETER GOING CONICAL
SECOND PIECE 165 MM DIAMETER DOUBLE STAGE
SCREEN CHANGER (BERINGER) 8 1/4
SLIDE TYPE WITH HYDRAULIC PISTON
SLIDE WITH TWO BREAKERS 8,250 INCHES DIAMETER
HYDRAULIC POWER UNIT 2500 PSI WITH ACCUMULATOR BERRINGER MOTOR 5 HP 6 PH 60 HZ
DC DRIVE MODEL DC6-800-4
INPUT 480 VOLT, 3 PHASE 50/60 HZ 656 AMPS OUTPUT 0-500 VDC, 800 AMPS, 500 HP
DC DRIVE
HEATERS (8 ZONES) CERAMIC TYPE
PELLETIZER PRT ITALY
NOTE; COMES WITH SPARE NEW SCREW * BARREL
COMES WITH SPARE 500 HP DC MOTOR (REBUILT 2 YEARS AGO)
NOTE: ALL NEW ELECTRICS NEW
NOTE: COMPANY WAS PROCESSING LDPE FILM (2000 POUNDS/PER/HOUR)
Get Your Price from Plastic Machinery Of New York Inc!
