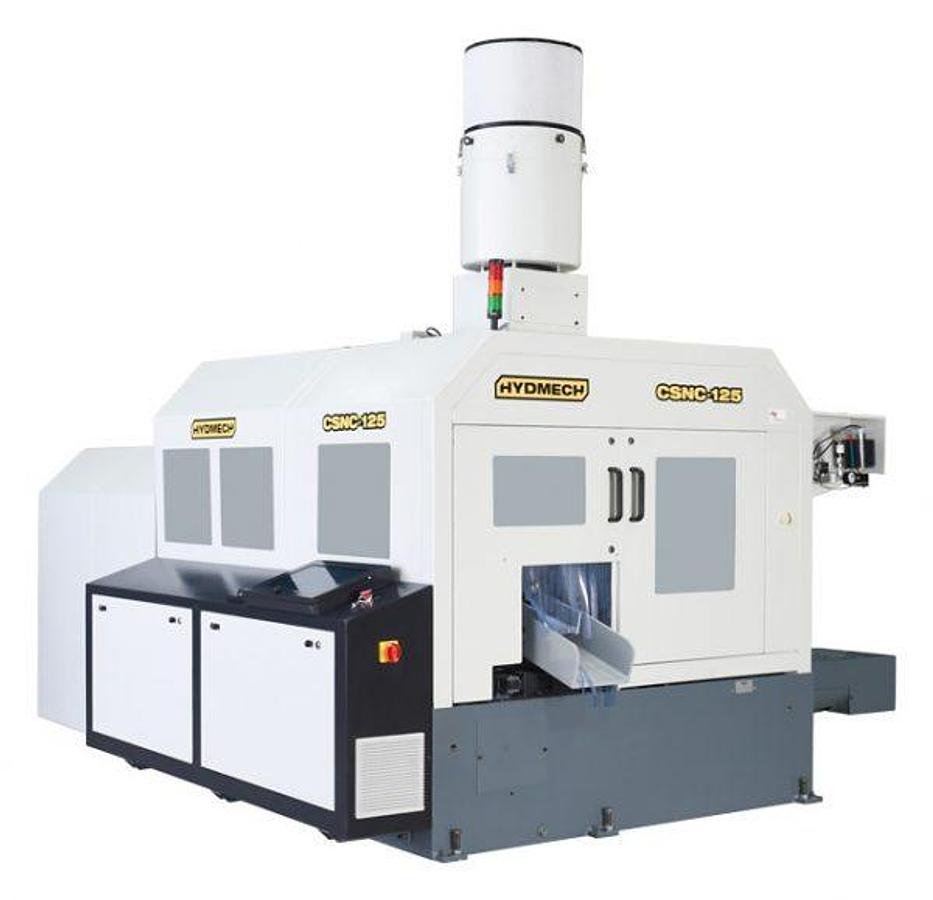

1" x 5" Hyd-Mech #CSNC-125, carbide circular saw, 39" stroke, Mitsubishi PLC

Equipped with:
Mitsubishi PLC controller allows for 200 programs to be saved
Job monitoring w/cycle time, job duration, parts count and AMP load setting to protect the saw blade.
Material library w/US steel grades menu w/ability to add custom material grades
Bar feed and roller table w/a material gripper feed carriage indexing via ball screw and AC servo drive.
Shuttle speed: 7.87 per second
Heavy duty saw head is driven by ball screw and AC servo drive w/a patent pending counterbalance feature
Mist exhaust system
Patent pending blade cooling system
Air moisture separator
Bar retracts automatically for contact free return stroke of the saw blade
Universal bar loader for round and square material w/hydraulic incline pitch adjustment and safety guard
sheets provide storage width of 42 (1070 mm) for rounds. Capacity: 10,360 lbs.
PLC controller, automatic oil lubrication of all moving parts
Output sorting ensure trim cuts and remnant pieces are sorted automatically from good parts
Variable vise pressure control w/dial gauge two stations
Cooling nozzle
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will
alarm to alert the operator.
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
Status light indicating tower
Chip auger
Air cooled electric magnetic head break removes all backlash
Built in hydraulic tank and power pack
Tool steel hardened saw guide plates
Power transformer
4 blade starter package
Optional features for additional cost:
PLC program modification
Maintenance kit
Strap style bundle loaders max weight 4 tons
Chain chip conveyor
Long cut bar out-feed conveyor table and guiding in the following lengths 1000 mm, 2000 mm and
3000 mm
