Description

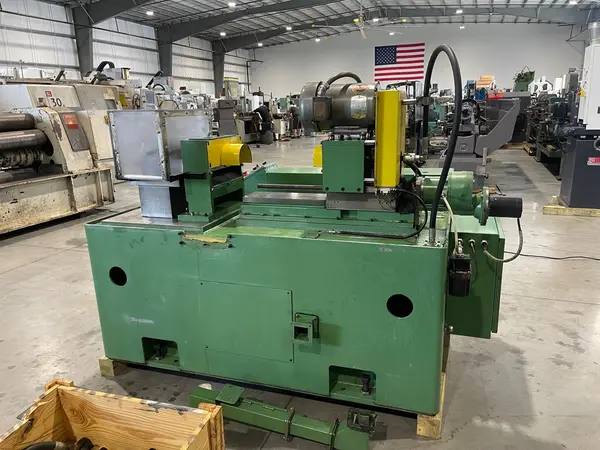

Description DEHOFF 1” x 18” Gun Hole Gun Drill USA Specifications

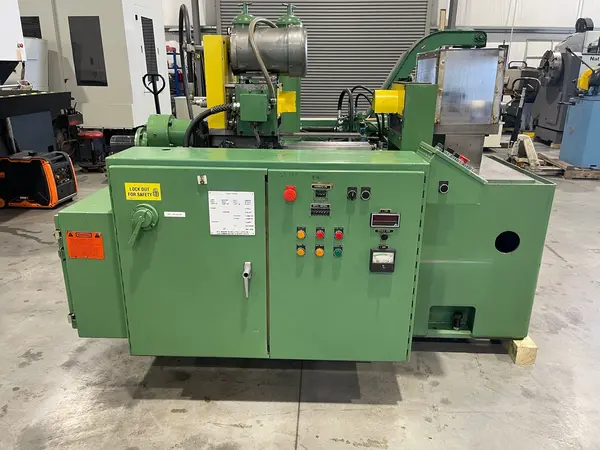

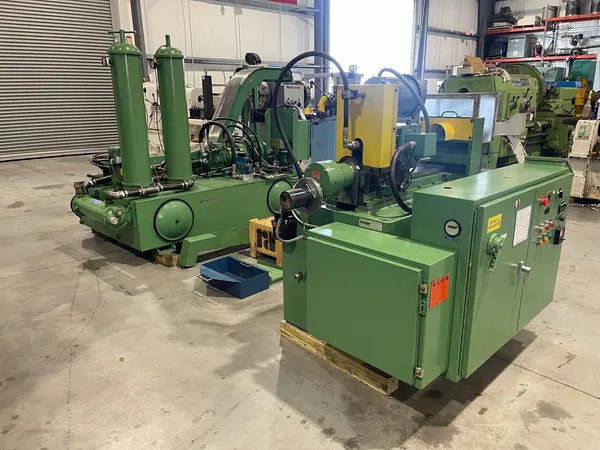

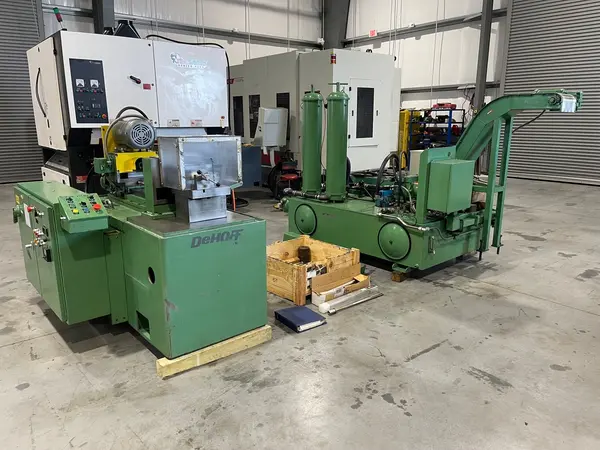

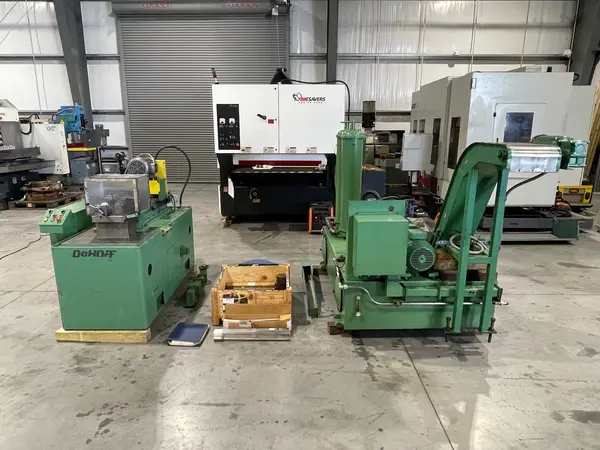

DEHOFF 1” x 18” Gun Hole Gun Drill USA #6748 Reference #6748 Model # Axis 1018 Serial # DH1825N Maximum drill capacity- 1” Drill head stroke- 18” Feed rate- .1 – 30.00 I.P.M. Rapid retraction of drill head- 100 I.P.M. Spindle speeds- 1,000 – 8,000 R.P.M. Spindle C-line parallel to slideway- .0005” per foot

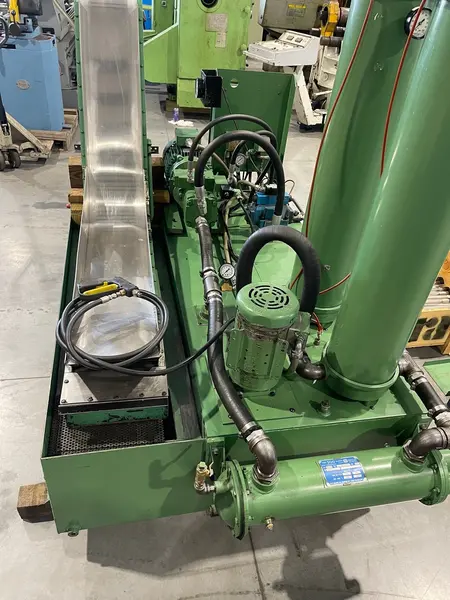

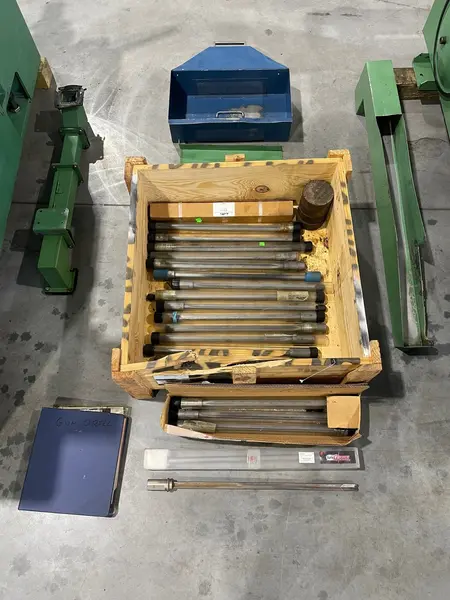

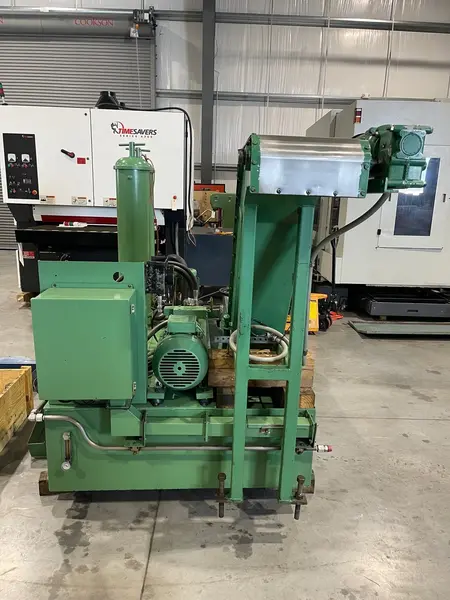

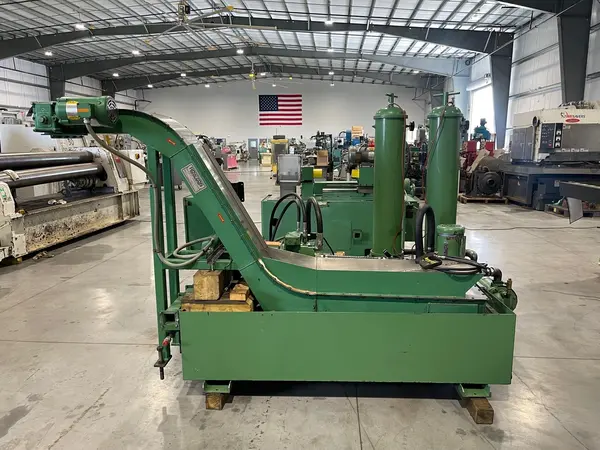

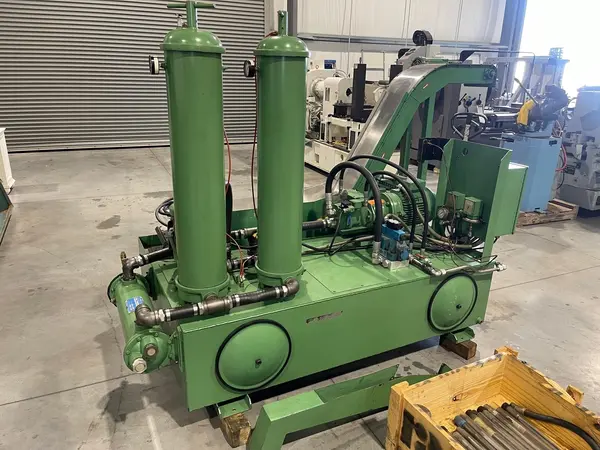

Equipped With Coolant tank (150) Gallon High pressure pump 20 G.P.M. / 1500 Max P.S.I. Hugh pressure pump 10 H.P. ‘Transfer pump 2 H.P. Extra filters Large assortment of gun drills Manual & Schematics Machine is wired for 460 volt / 3 phase / 60 H.Z. Machine weight- 8,500 Lbs. Machine dimensions- 75” L x 60” x 58” H ( machine only)
