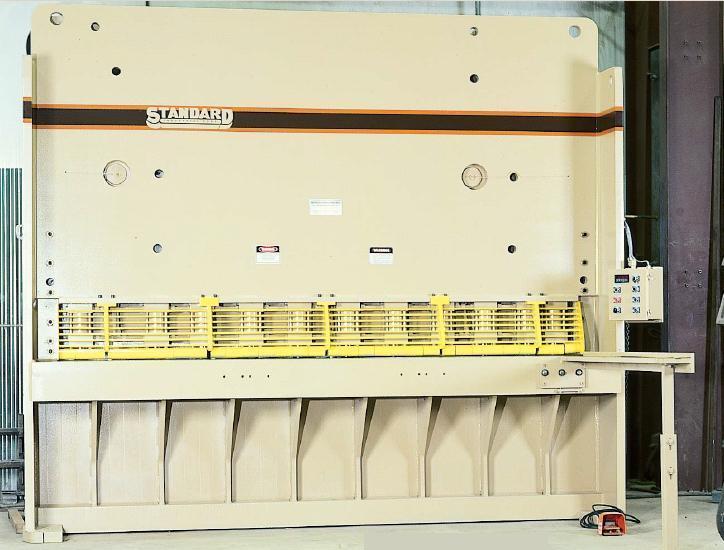

For Sale by Smith Machinery Co
Description
| Capacity to Mild Steel | 1 x 10 |
| SHEARING TONS AVAILABLE | 275 |
| RAKE (IN INCHES PER FOOT) | .62 |
| SHIPPING HEIGHT | 136 inches |
| WIDTH | 164 inches |
| DEPTH | 98 inches |
| NUMBER OF HOLD DOWN CYLINDERS | 11 |
| BORE OF HOLD DOWN CYLINDERS | 4 inches |
| HOLD DOWN TONS OF FORCE | 165 |
| BLADE SIZE | 1 1/2x 5 1/2 |
| Weight | 80000 pounds |
| Horsepower | 75 |
| Below Grade | no |
| STROKES PER MINUTE | FULL WIDTH CUT: 5-8, 12 WIDE CUT: 17 |
| RAM SPEED IN INCHES PER MINUTE-DOWN | 109/48 |
| RAM SPEED IN INCHES PER MINUTE-UP | 300 |
Equipped With
Equipped With
FEATURES:
« ALL COMPONENTS READILY AVAILABLE FROM YOUR LOCAL SUPPLIERS
« PRECISION GUILLOTINE DRIVE PROVIDING THE BEST SHEARING SYSTEM AVAILABLE
« EXTREMELY HEAVY DUTY 48" TRAVEL, PRECISION BACKGAUGE WITH MANUAL SWING-AWAY BACKSTOP, X-RETRACT AND PROGRAMMABLE DEPTHS VIA CYBELEC CONTROL.
« OFF THE SHELF CYBELEC SHEAR CONTROL WITH 200 JOB PROGRAMMABILITY
« AUTOMATIC BLADE POSITIONING WITH INFINITELY VARIABLE POWER BLADE GAP ADJUSTMENT.
« 80,000 PSI CAPACITY RATED
« 5 YEAR PARTS WARRANTY
« 5 YEAR LIMITED ONSITE LABOR WARRANTY
« LIFETIME TELEPHONE SUPPORT AT NO CHARGE
« HEAVY DUTY BALL TRANSFERS IN TABLE
« 4’ SQUARING ARM WITH SCALE
« (2) HAND SLOTS IN THE TABLE
« (2) T-SLOTS IN SHEAR TABLE
« T-SLOT ACROSS FRONT EDGE OF SHEAR TABLE
OPTIONAL FEATURES:
November 2024 Model AS Shears Options --All Sizes.pdf
DELIEVERY:
30-32 WEEKS
