For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description
Spec
Specifications & Configurations May Vary Depending on EVO BEND 250 Model & Automation Level
Maximum Mild Steel Tube Capacity: 25 x 3 mm
Maximum Stainless Steel Tube Capacity: 20 x 2 mm
Maximum Aluminum/Copper Tube Capacity: 30 x 3 mm
Maximum Bending Radius: 180 mm
Useful Length on Clamp: 2,100 mm
Useful Length on Mandrel: 3,500 mm
Maximum Bar Passage Diameter: 28 mm
Head Clearance Radius: 90 mm
Power Supply: 400/800 V
Operating Frequency: 50/60 Hz
Maximum Power: 10/15 kW
Approximate Machine Weight: 2,900 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System
Description

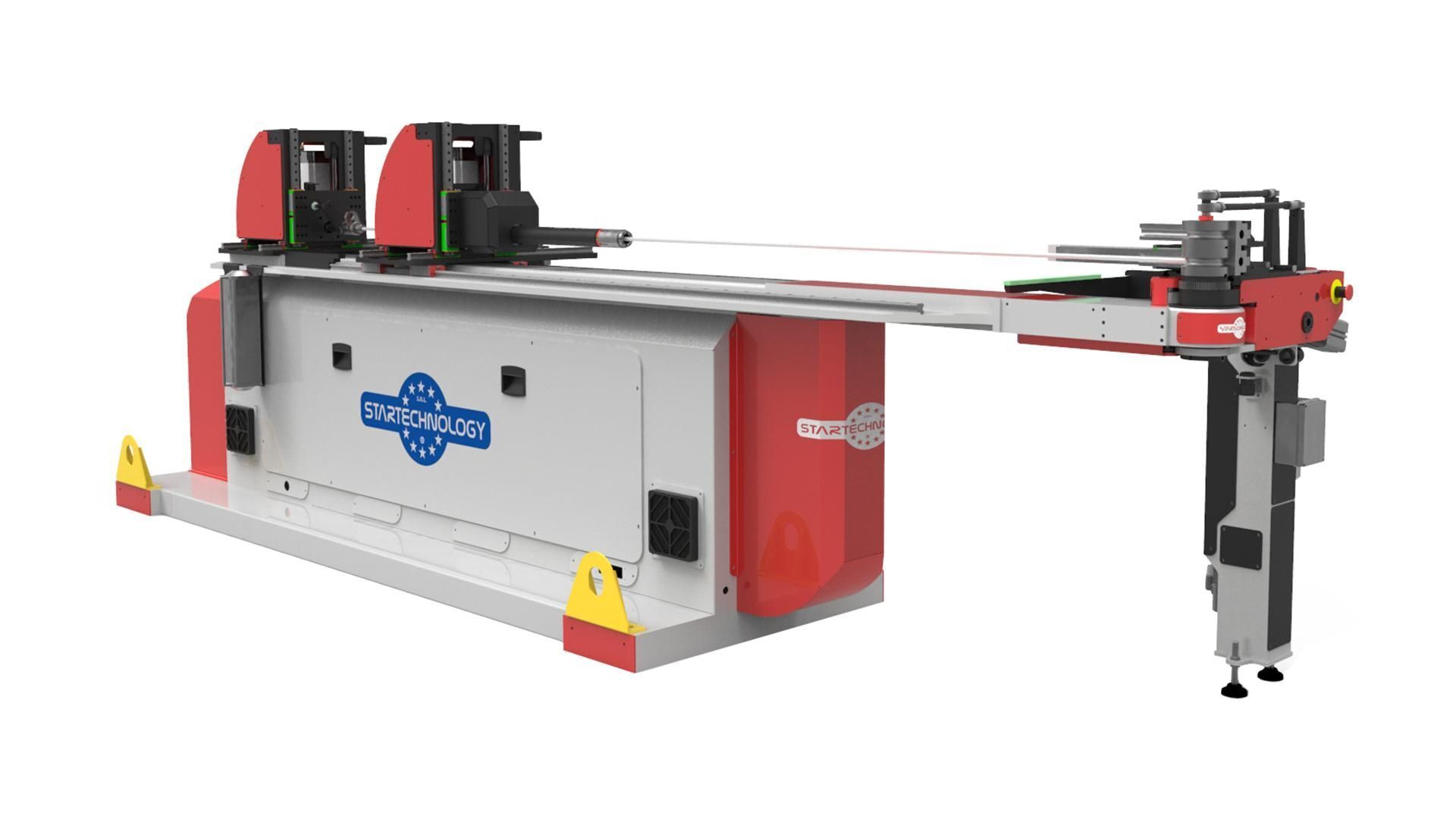

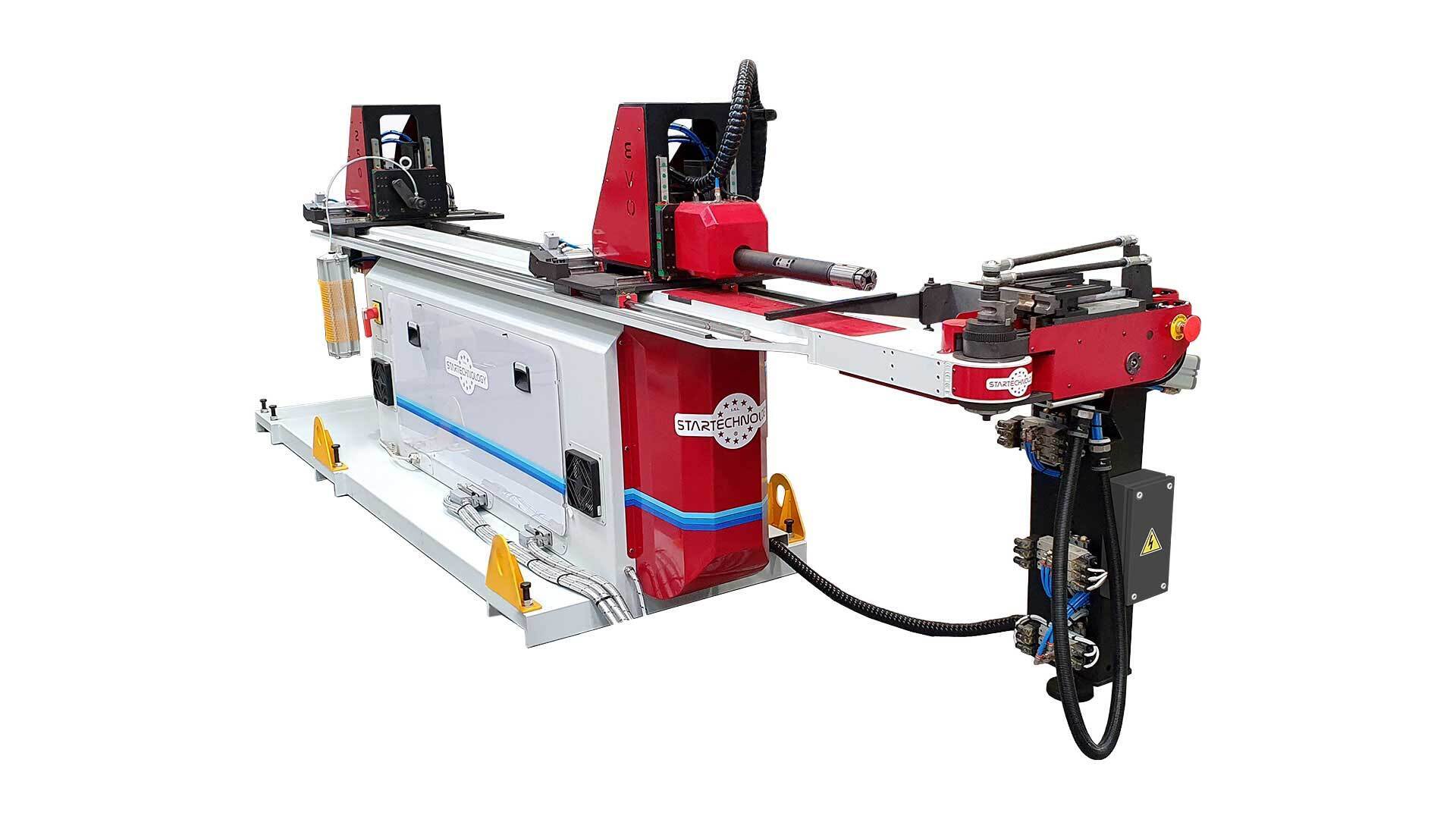

The Star Technology EVO BEND 250 series is a high-performance line of CNC tube and pipe bending machines designed to deliver precision, flexibility, and efficient production for a wide range of tube bending applications. Engineered and manufactured in Italy, the EVO BEND 250 series offers multiple configurations and automation levels to support varying production requirements and bending applications
Get Your Price from Machine Tool Technologies!
