1 kW Schneider Electric Servo Motor SH31003P12A2000 - 6000 RPM

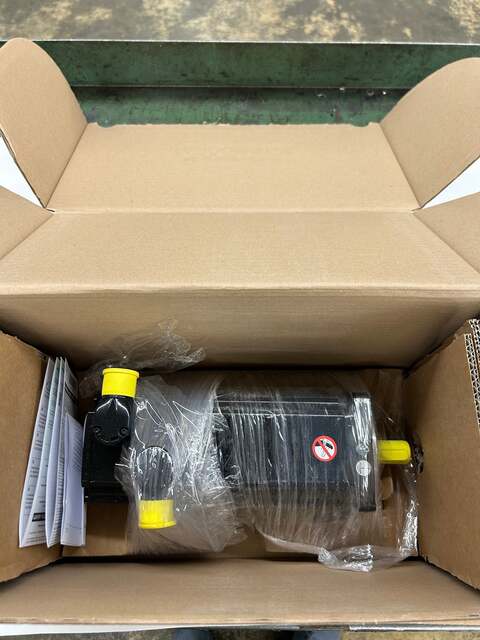

The Schneider Electric SH31003P12A2000 is a brushless AC servo motor from the Lexium SH3 series, designed for use in PacDrive 3 motion control systems and compatible PacDrive automation platforms. The motor features a maximum mechanical speed of 6000 RPM and a rated supply voltage range of 115V to 480V AC, making it compatible with a broad range of drive configurations. At 480V, the motor delivers continuous power of 790W with a maximum output torque of 5.1 Nm and a nominal stall torque of 8 Nm. Feedback is provided by an absolute multi-turn SinCos Hiperface encoder with 128 periods resolution, enabling high-precision positioning in demanding automation applications. The shaft end features a parallel key (6mm key width) with 19mm diameter and 40mm length. The electrical connection is made via a rotatable right-angle connector, with the connector housing visible in shipping configuration with yellow protective plugs installed. Enclosure rating is IP54 for the shaft bushing without shaft seal ring and IP65 for the motor body and sealed shaft bushing, conforming to EN/IEC 60034-5. The motor carries CE marking and was manufactured in Germany, as indicated on the box label, with a QD date of 07.05.2020. Unit weight per nameplate is 8.1 kg. This unit is present in its original factory carton with accompanying documentation. MPN SH31003P12A2000, internal configuration code SH100/40080/0/1/00/00/00 10/00.

Stock # 0326-1011
