1 kW Schneider Electric Servo Motor SH30701P12F2000 - 6000 RPM

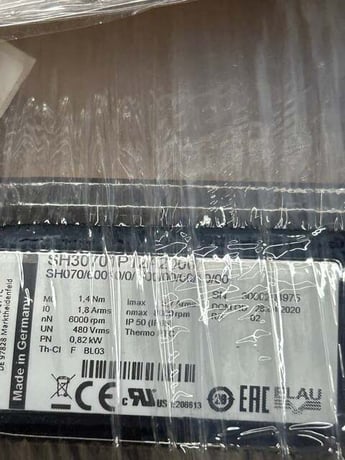

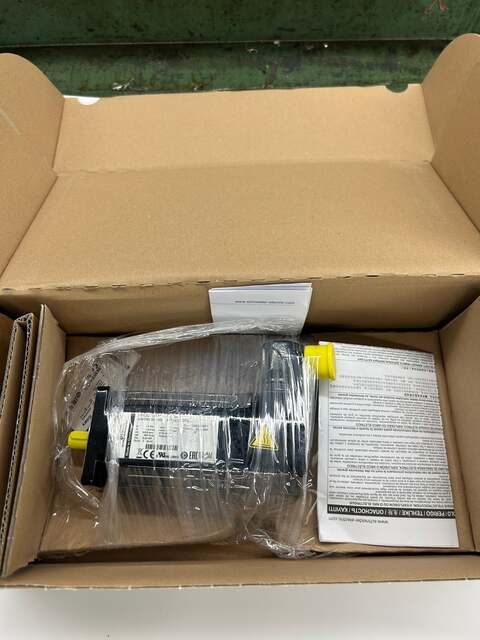

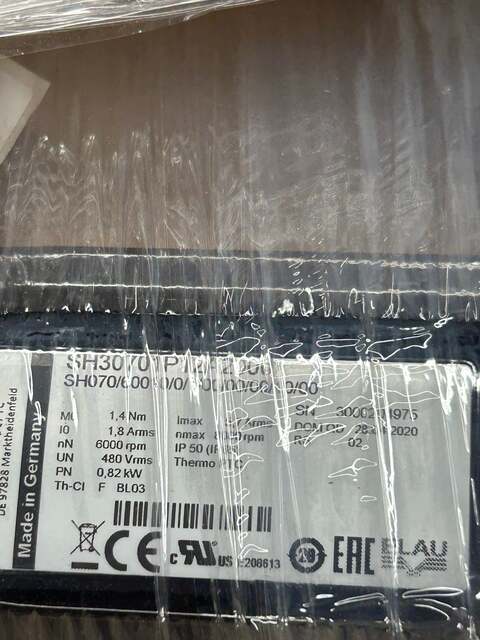

Used in PacDrive 3 automation systems, the Schneider Electric SH30701P12F2000 is a Lexium SH3 series AC servo motor built on the compact SH070 flange frame. Rated at 0.82 kW continuous power with a nominal speed of 6000 RPM and maximum mechanical speed of 8000 RPM, it is well suited to production machinery, packaging equipment, material handling, and assembly systems requiring precise motion control. Rated voltage is 480 Vrms, continuous stall torque is 1.4 Nm, and continuous stall current is 1.8 Arms. The motor is equipped with an absolute multi-turn SinCos Hiperface encoder, a holding brake, and a keyed shaft end with rotatable right-angle connector. Protection rating is IP54 at the shaft end and IP65 at the housing. Thermal protection via Thermo PTC is included, and the brake supply is 24 VDC at 11 W with a holding torque of 2 Nm. This unit carries CE, EAC, ELAU, and cULus certifications and was manufactured in Germany. Serial number 3000195567, DOM QD 23.04.2020, revision 02. The motor is presented new in its original Schneider Electric green retail box with factory plastic wrap intact, consistent with a new surplus condition. Compatible with Lexium 52 and Lexium 62 servo drives. Part number SH30701P12F2000, secondary configuration code SH070/60010/0/1/00/00/00/11/00.

Stock # 0326-1009
