1 HP 1725 RPM Reliance Electric AC Motor 436273-WC / P56C

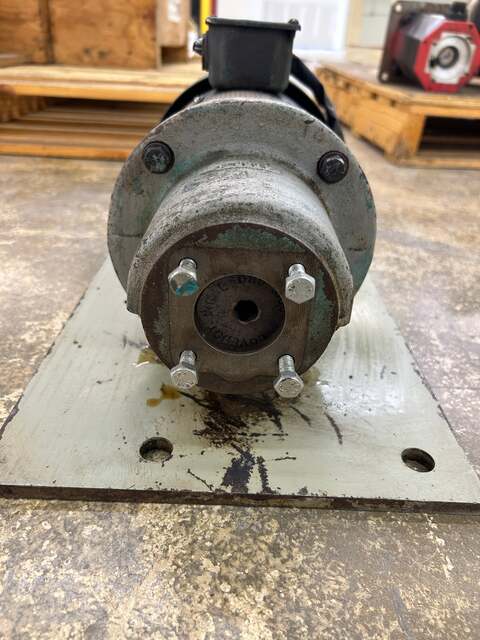

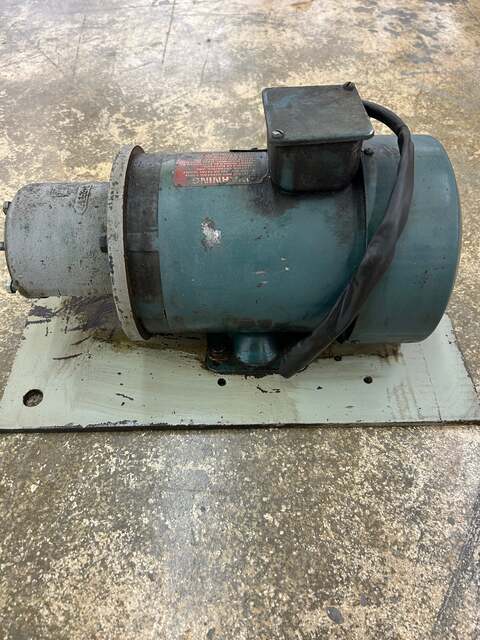

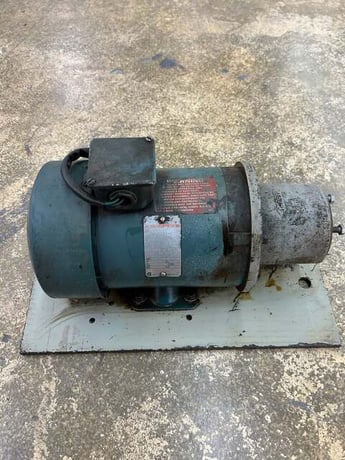

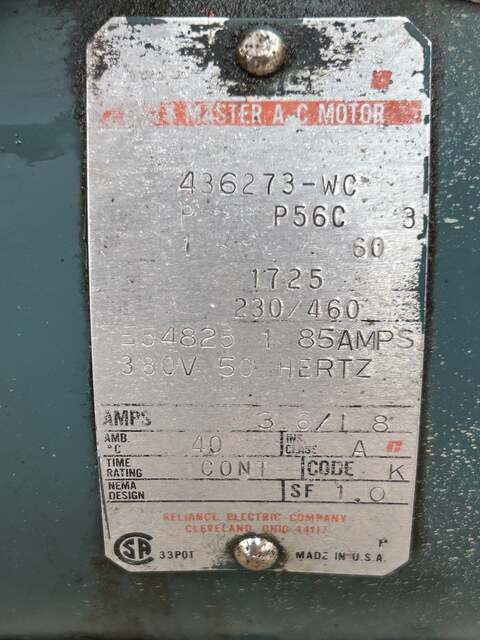

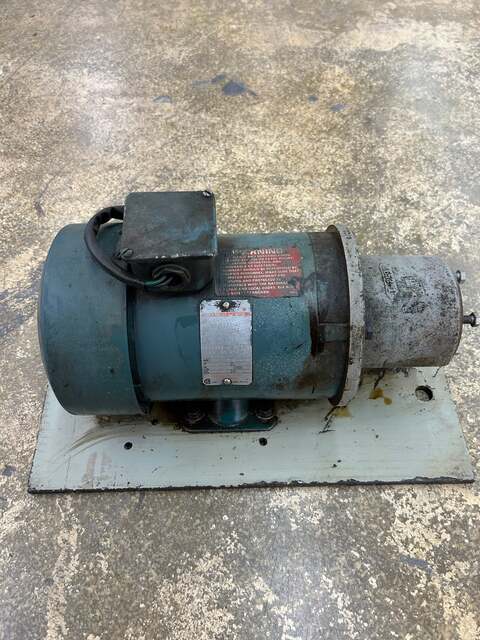

The Reliance Electric 436273-WC is a Duty Master A-C Motor manufactured by Reliance Electric Company, Cleveland, Ohio. The nameplate identifies it as a P56C frame, three phase induction motor rated for 1725 RPM at 60 Hz. Dual voltage operation is supported at 230/460V, with corresponding full load amperage of 3.6/1.8 amps. The motor includes a 50 Hz rating of 380V, allowing international compatibility. Identification number E54825 and CSA certification 33P0T are stamped on the rating plate. Service factor is 1.0, ambient temperature rating is 40 degrees Celsius, insulation class A, NEMA Code K, with continuous time rating. The frame configuration is a C face flange mount design suitable for direct coupling to gear reducers, pumps, conveyors, and other driven equipment. A coupled component is attached to the C face output side of the motor, secured with four bolts. Markings on the front mounted accessory could not be confirmed from the available views. Buyer should verify the front mounted component during inspection prior to integration. The motor housing is finished in standard Reliance blue paint and shows typical surplus condition wear including paint chips, surface oxidation on machined surfaces, and dust accumulation. Manufactured in the U.S.A. by Reliance Electric Company, this motor is suited for general industrial applications including machine tool spindle drives, pump drives, fan applications, and conveyor systems requiring a 56C frame three phase motor at 1 HP class output.

Stock # 0226-124
