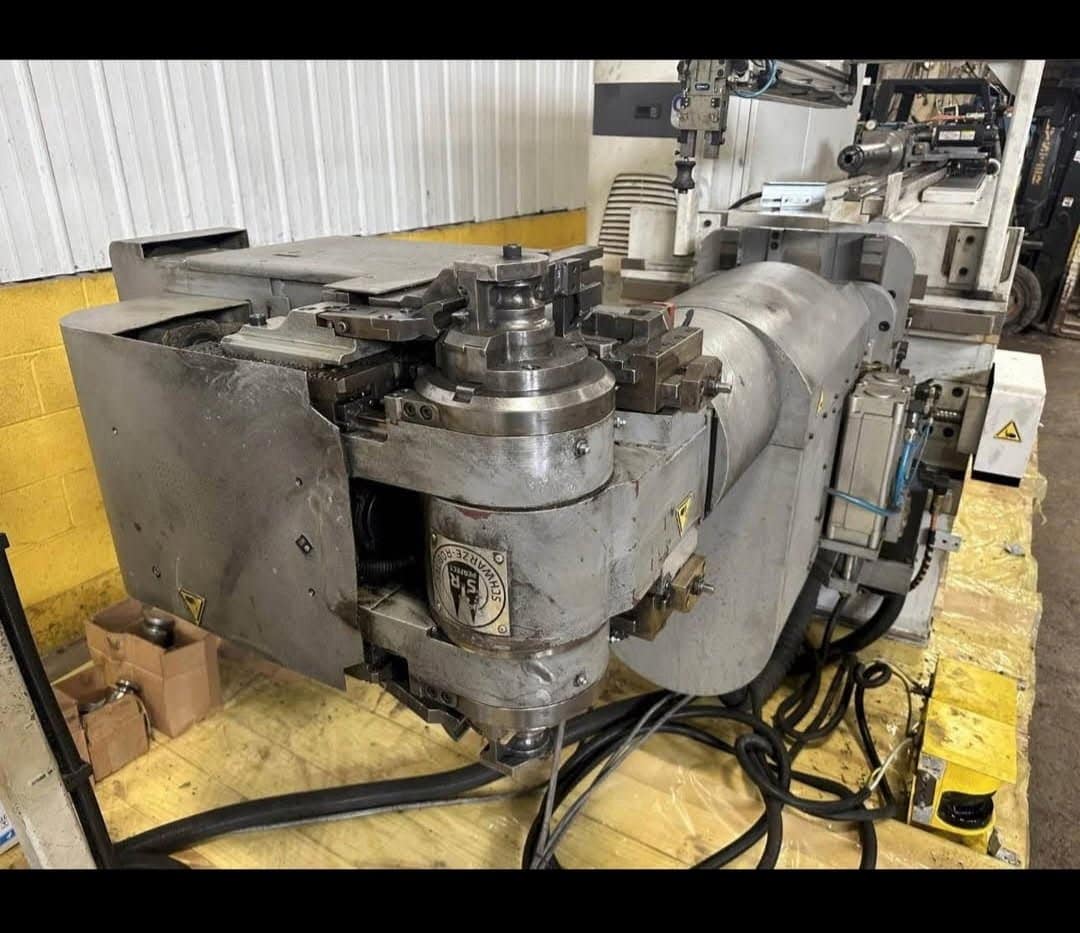

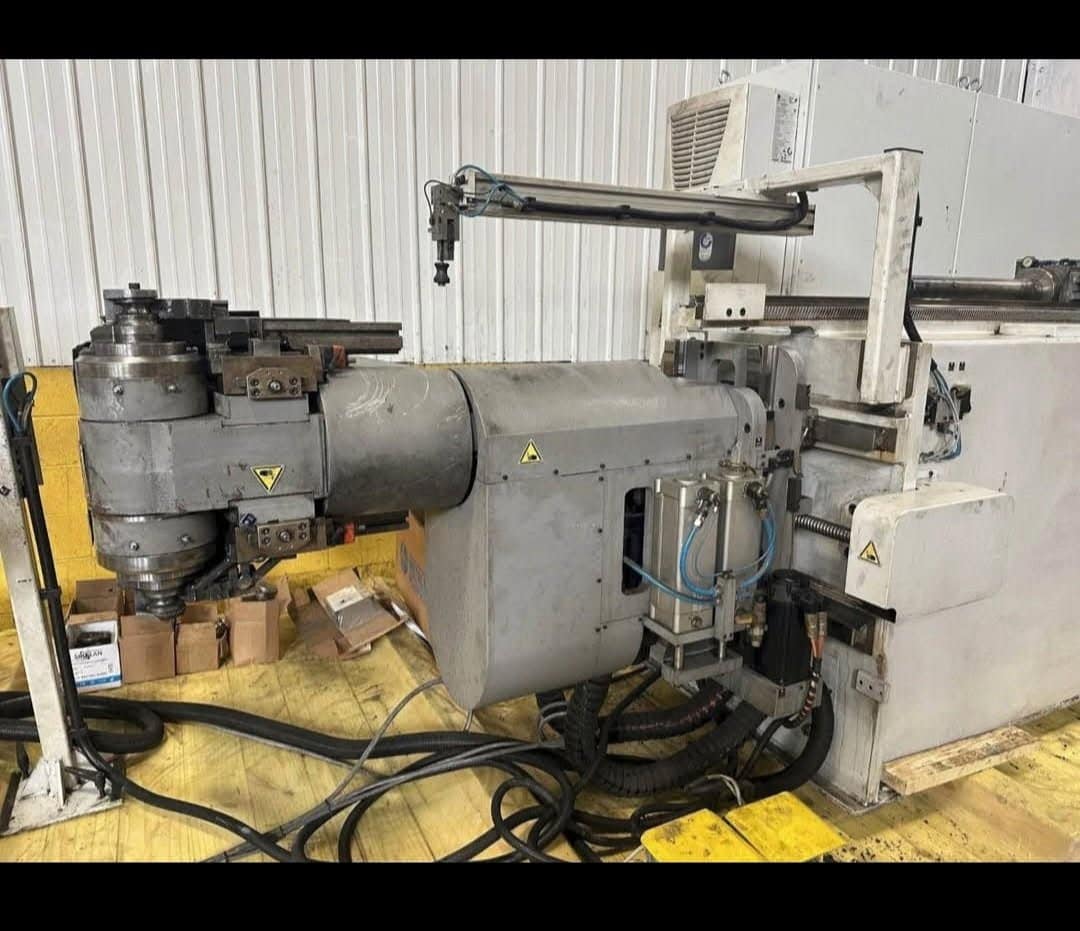

1-9/16" Schwarze Robitec #CNC-40, CNC tube bender, 6-axis, 185° max bend, 1.25" collet, 5.9" CLR max, 2017

New tooling in 2021
New PC Board 2024

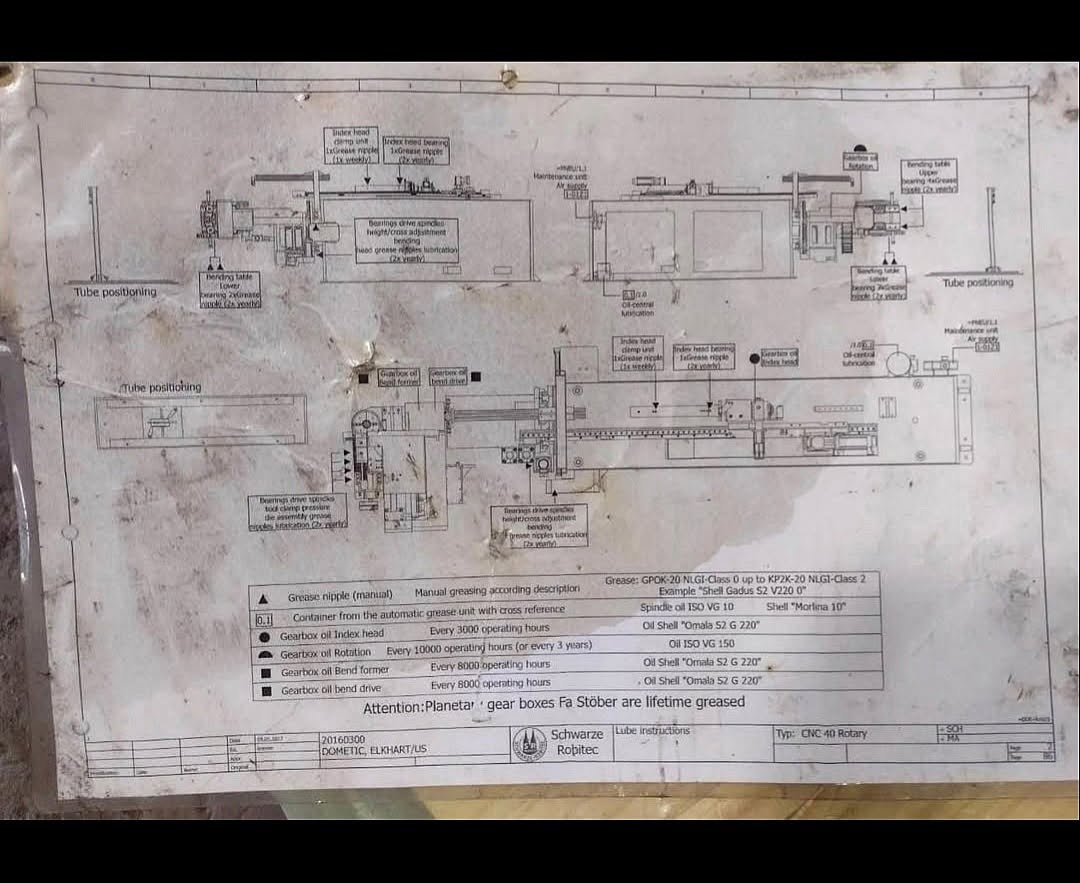

–SPECIFICATIONS–

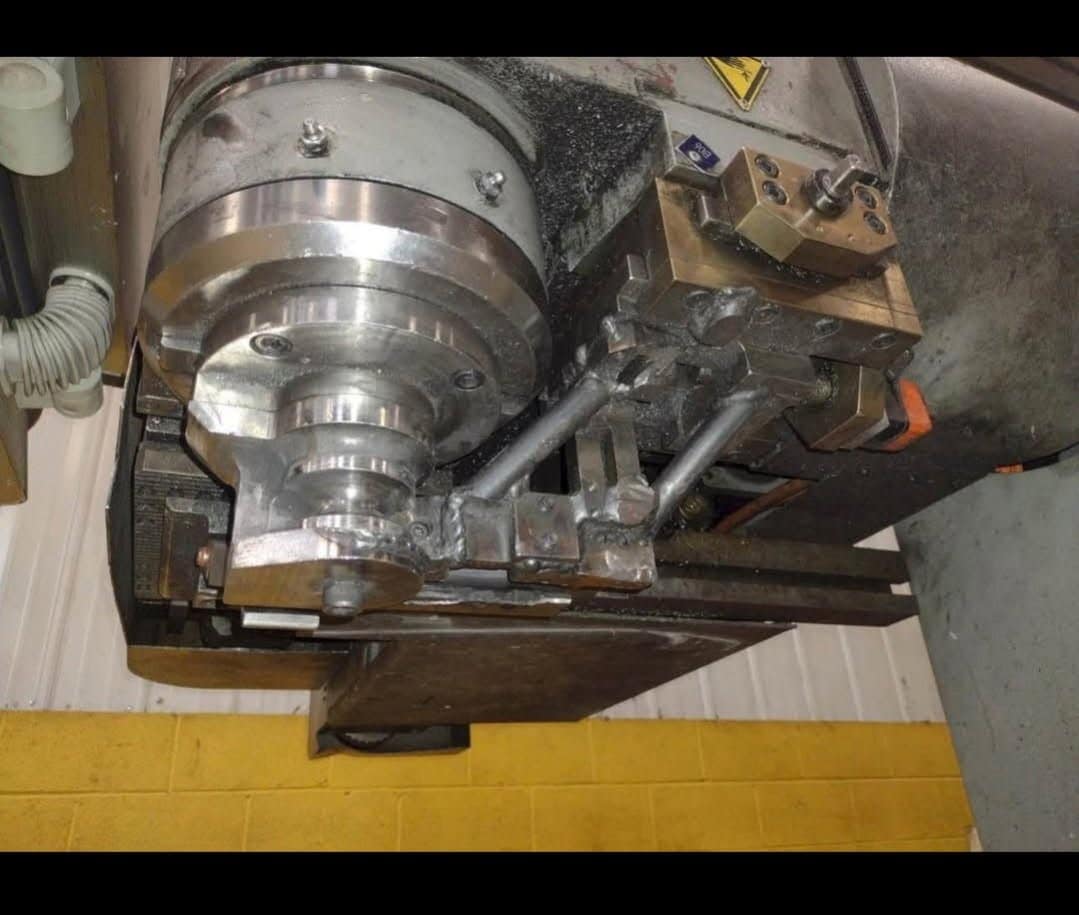

Tube Capacity: 1.25 collet
Max centerline radius: 5.9”
Max bending rotation: 185 degrees
Bending rotation: left to right
Max. bending capacity of the machine: tube OD x wall thickness
Standard steel: 40 x 2 mm 1.57 x 0.08 In
Stainless steel: 32 x 1,5 mm 1.26 x 0.06 In
Max. modulus of section: approx. 2,2 cm³ 0.9 In³
Max. tensile strength of material to be bent:
Standard steel: 450 N/mm²
Stainless steel: 750 N/mm²
Min. tube OD: 8 mm 0.31 In
Max. bending radius (CLR): 125 + 25 mm 4.9 + 0.98 In
Min. bending radius (CLR): 10 mm 0.39 In
Max. tube length: 2000 mm 6.56 feet
Max. bending angle: 185°
Max. bending angle accuracy: ± 0,1°
Max. bending speed:

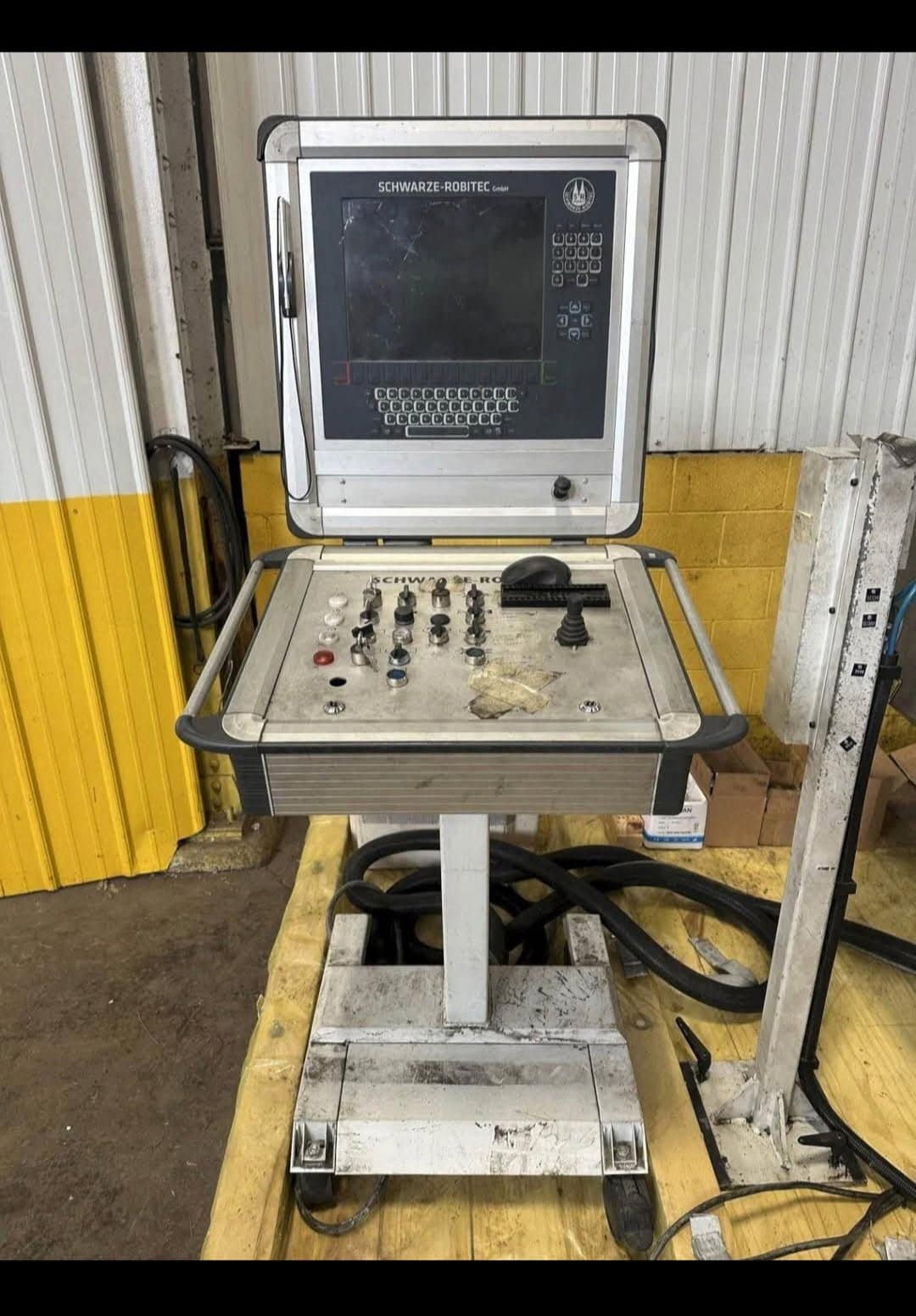

forward, steplessly adjustable and programmable from CNC panel: 45,0 1/ min.
Return, constant: 45,0 1/ min.
Bending direction: Right – Left

Total power requirement: 25 kW
Operating voltage: 400 V, 50 Hz, 3 Phases, PE, N
Control voltage: 24 V=
Solenoid valve voltage: 24 V=

Machine: RAL 7035 light grey
Moveable parts: RAL 7037 dust grey

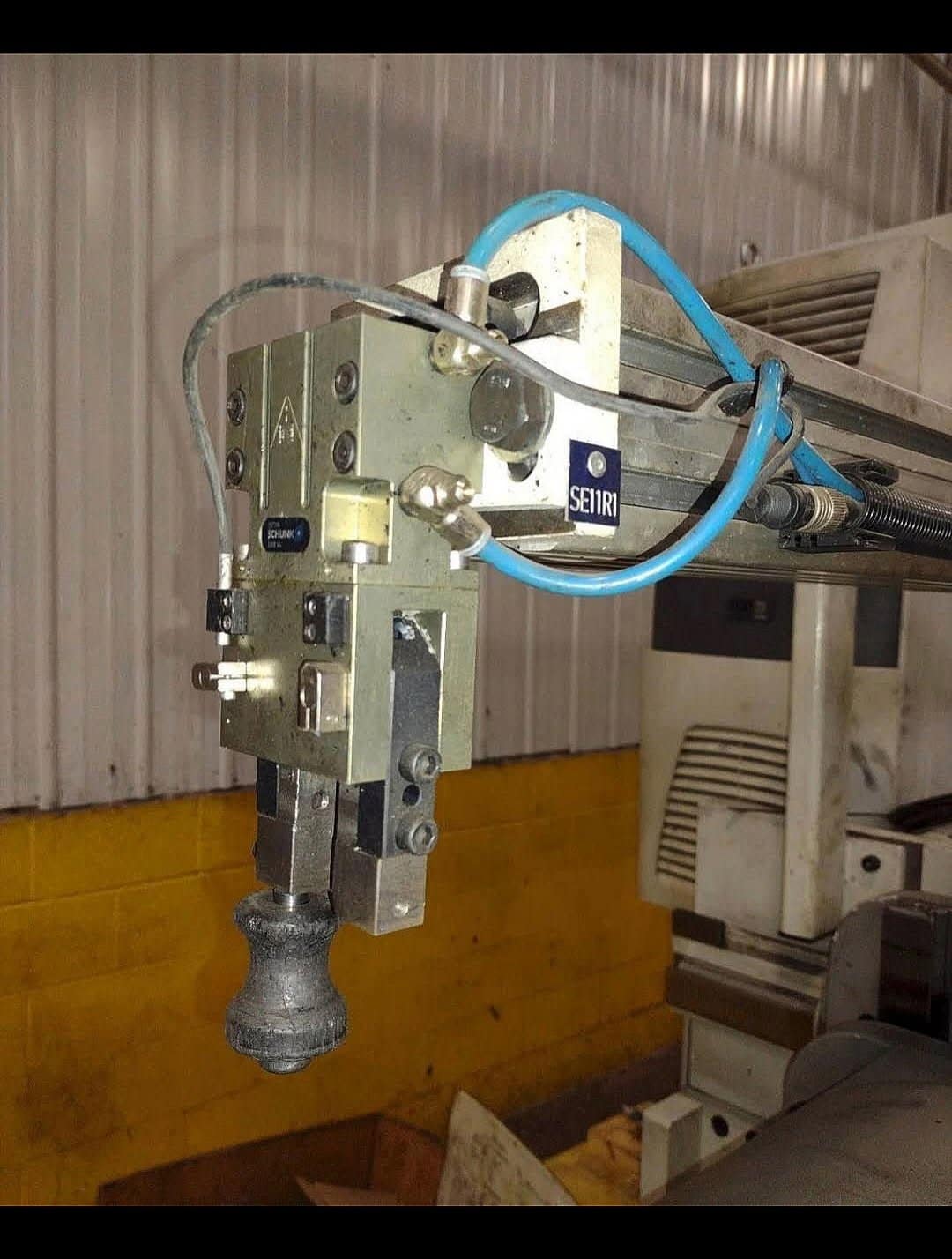

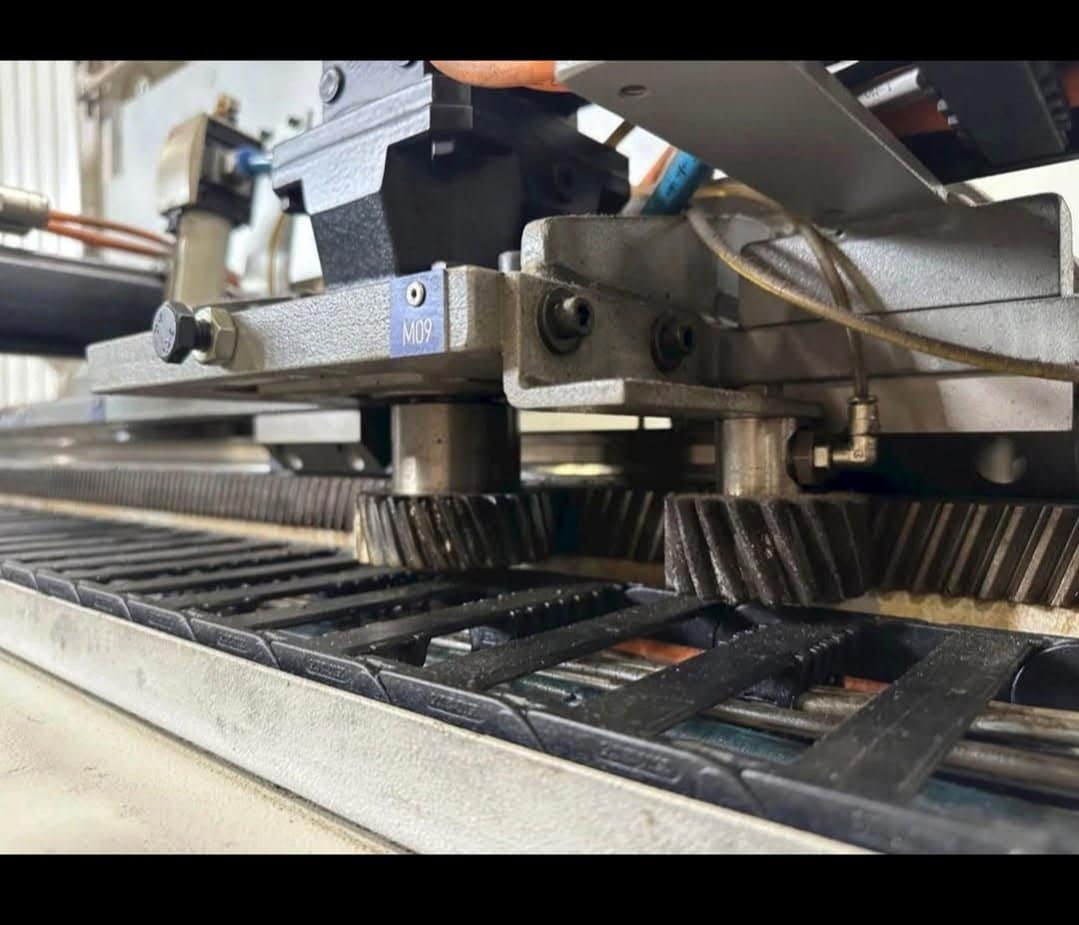

–Tube positioning device– (Transport and Orientation)

Max. orientation angle: 360°
Max. orientation accuracy: ± 0,1°
Max. orientation speed: 120 1/ min.
Max. transport speed: 65 m/ min. 213 ft/ min.
Transport accuracy: ± 0,1 mm
Speeds are steplessly adjustable and programmable from control panel.
