Manufacturer: Acrotech
Model: 1618
Length': 1.60
CapacityInches or Gauges: .064
Stock # 30764
Price: $6,950 USD
1 / 2
Click to zoom in
1 / 2
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$6,950 USD
Description

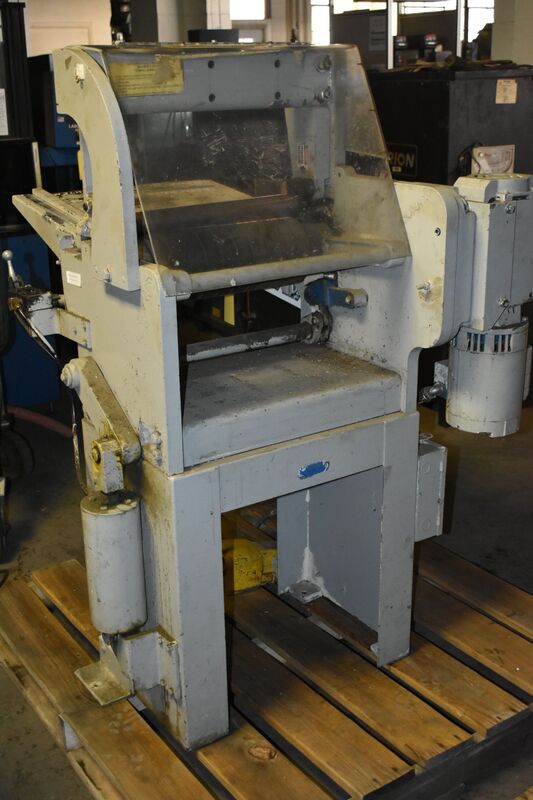

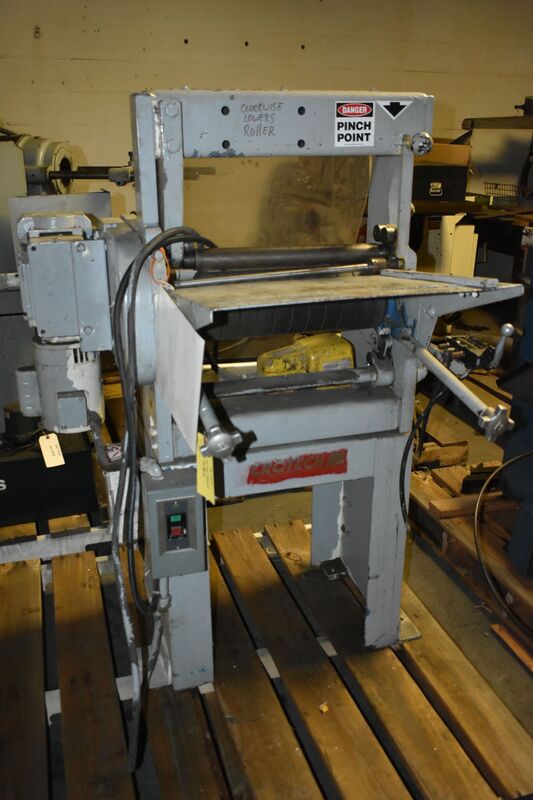

18" x 16 GA ACROTECH "1618" TWO ROLL ONE-PASS BENDING MACHINE - 1 HP Motor - 22 FPM
18" x 16 GA ACROTECH "1618" TWO ROLL BENDING MACHINE
Serial No 0295-100-077, Model 1618
EQUIPPED WITH:
One Pass Design
CATALOG SPECIFICATIONS:
Working Length of Rolls 18" 457MM
Capacity Mild Steel 16 GA 1.5MM
Diameter of Top Roll 3.5" 88.9MM
Diameter of Bottom Roll 6" 152MM
Rolling Speed, Feet Per Minute 15 FPM
Rolling Speed, Centimeter Per Minute 670.6CMPM
Motor Horsepower 1 HP
Electrical System 115/1/60
NOTE: The Two Roll Principle Of Bending Consists Of Under
Pressure The Top Steel Roll Acts As A Rotary Punch
Penetrating The Bottom Roll. The Bottom Roll, A Steel
Shaft Coated With K Prene Urethane Acts As A Female
Die, Wrapping The Material Around The Top Roll. Rotation
Of Both Rolls Produces Accurate Curving And Rolling Of
Complete Or Partial Cylinders In One Pass.
F.O.B. OUR WAREHOUSE
18" x 16 GA ACROTECH "1618" TWO ROLL BENDING MACHINE
Serial No 0295-100-077, Model 1618
EQUIPPED WITH:
One Pass Design
CATALOG SPECIFICATIONS:
Working Length of Rolls 18" 457MM
Capacity Mild Steel 16 GA 1.5MM
Diameter of Top Roll 3.5" 88.9MM
Diameter of Bottom Roll 6" 152MM
Rolling Speed, Feet Per Minute 15 FPM
Rolling Speed, Centimeter Per Minute 670.6CMPM
Motor Horsepower 1 HP
Electrical System 115/1/60
NOTE: The Two Roll Principle Of Bending Consists Of Under
Pressure The Top Steel Roll Acts As A Rotary Punch
Penetrating The Bottom Roll. The Bottom Roll, A Steel
Shaft Coated With K Prene Urethane Acts As A Female
Die, Wrapping The Material Around The Top Roll. Rotation
Of Both Rolls Produces Accurate Curving And Rolling Of
Complete Or Partial Cylinders In One Pass.
F.O.B. OUR WAREHOUSE
