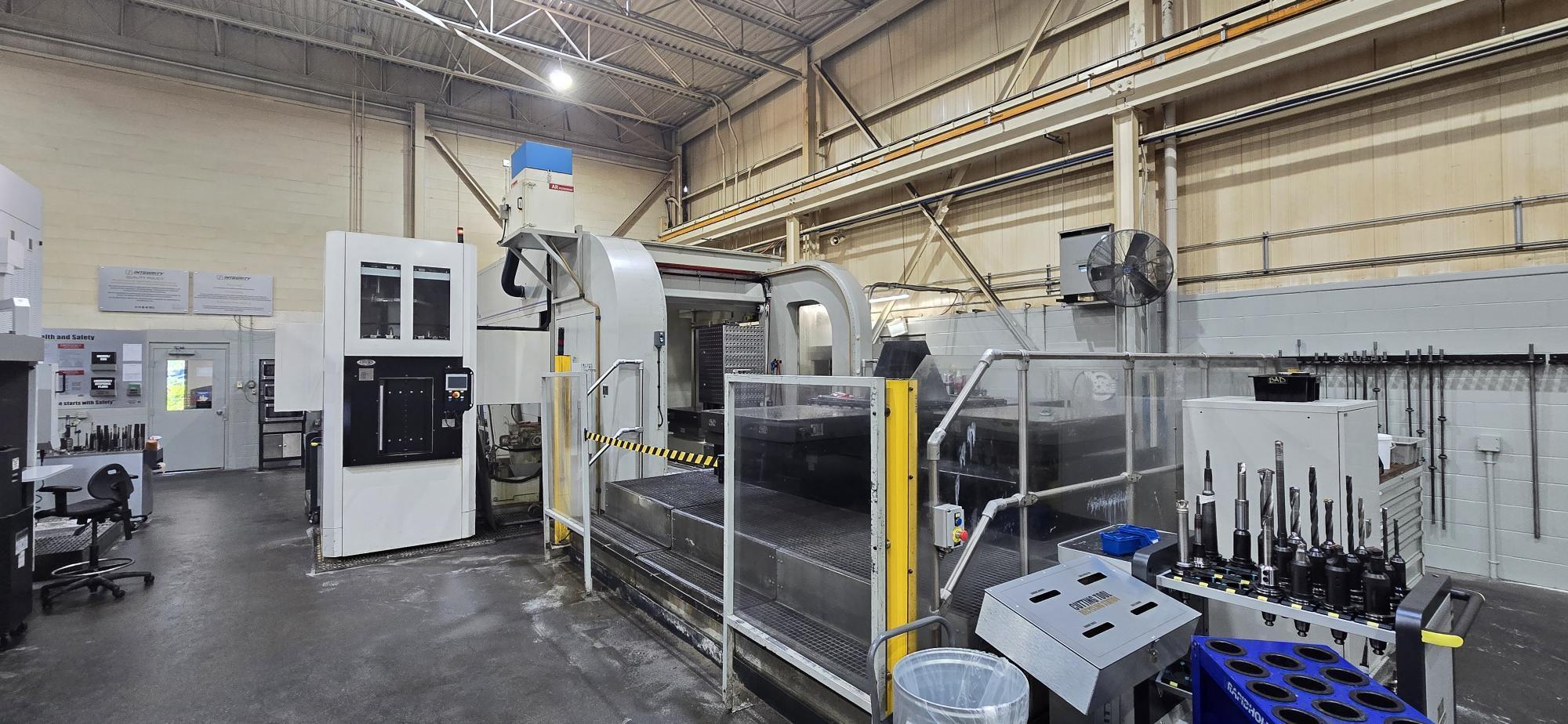

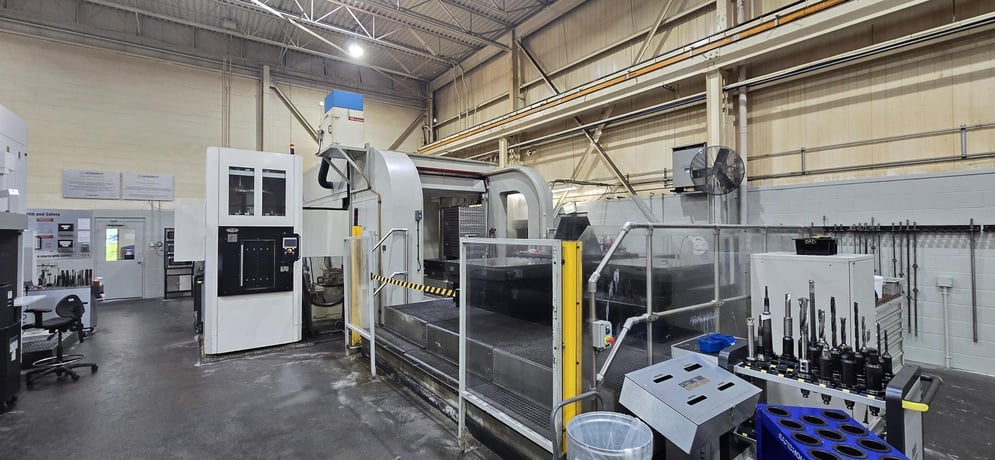

1.57" x 43.3" Imsa #MF-1100BBLL, 5-Axis gun drill, 60 ATC, Heidenhain ITNC i530, 2013

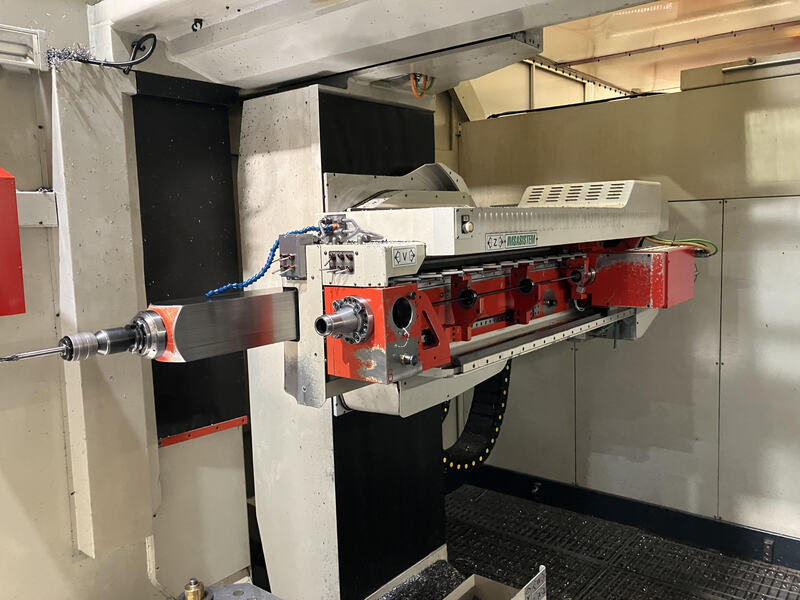

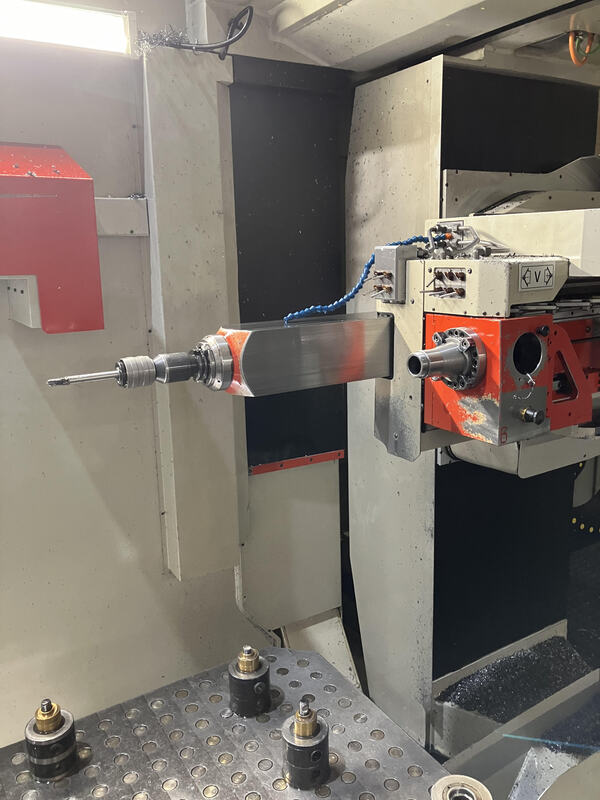

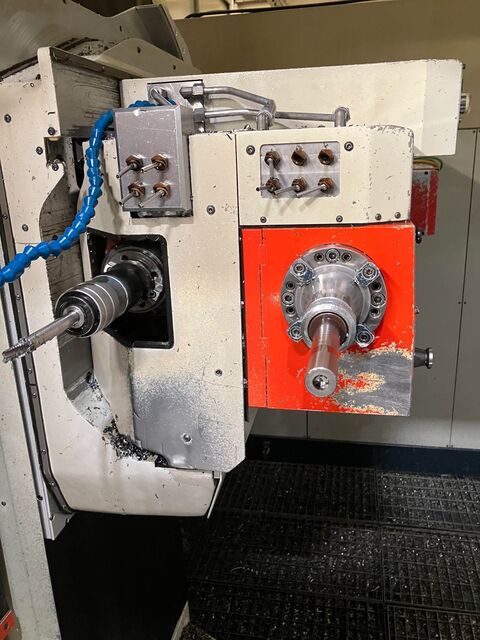

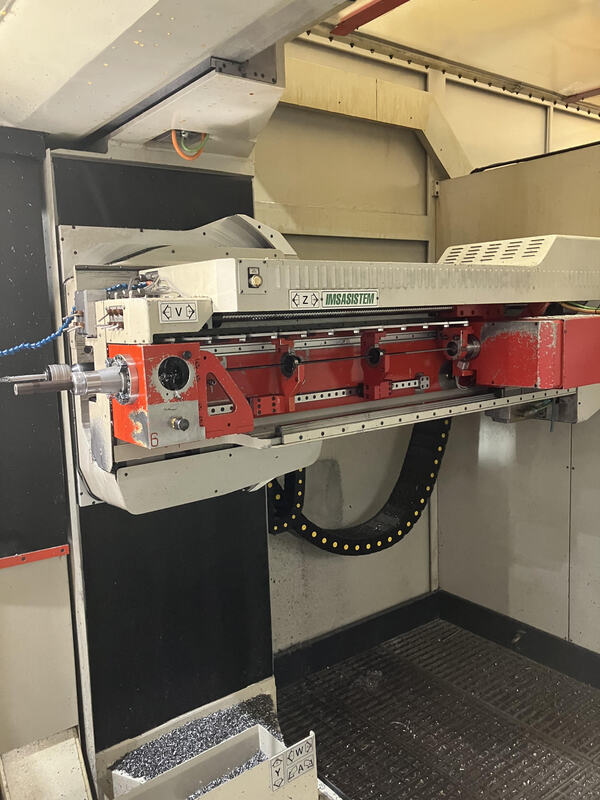

2013 IMSA MF 1100BBLL 5-Axis Gun Drill
80" x 40" Travels, 43" Gun Drill Depth, 20 Degree A-Axis
Heidenhain ITNC i530, 4200 RPM Gun Drill Speed, CAT 40, 4 Pallets, 6-Station Gun Drill Changer, 60 ATC
IMSA MF1100BBL 5-Axis Gun Drill
New: 2013
Specifications:
Travels:
X-Axis (Table): 79.9"
Y-Axis (Head): 40.0"
Max Drilling Depth: 43.3"
Drilling Diameter: 0.157 - 1.57" (optimal)
Head Tilt, A-Axis: +/- 20 Degrees
Tilt Indexing: 0.001 Degree
Max Gun Drill Speed: 4200 RPM
Gun Drill Spindle Motor: 12.6 HP
Max Milling Head Speed: 4000 RPM
Milling Spindle Motor: 12.6 HP
Milling Head Taper: CAT 40
Pallet Size: 47.24" x 39.37"
Pallet/Table Weight Capacity: 14,300 Lbs
Number of Pallets: 4
Gun Drill Storage/Changer: 6 Stations
Milling Head Tool Changer: 60 Station
Equipped With:
Heidenhain ITNC i530 CNC Control

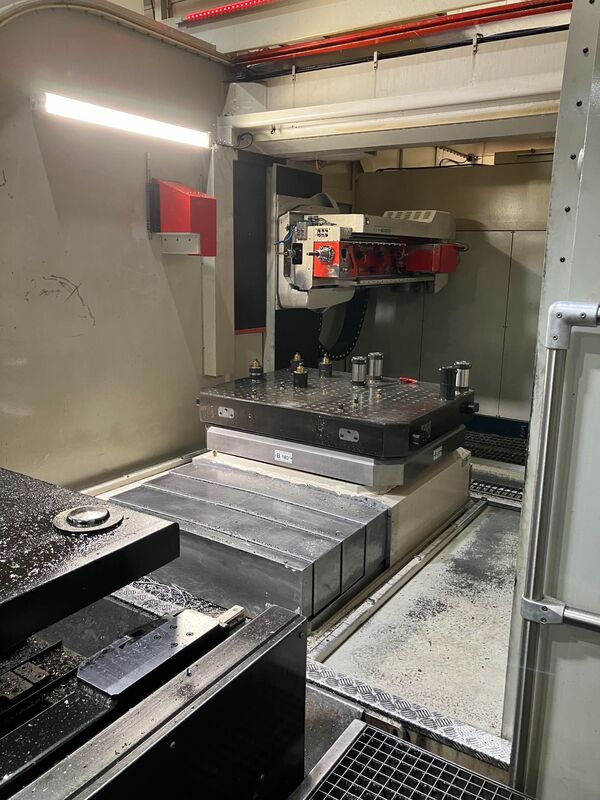

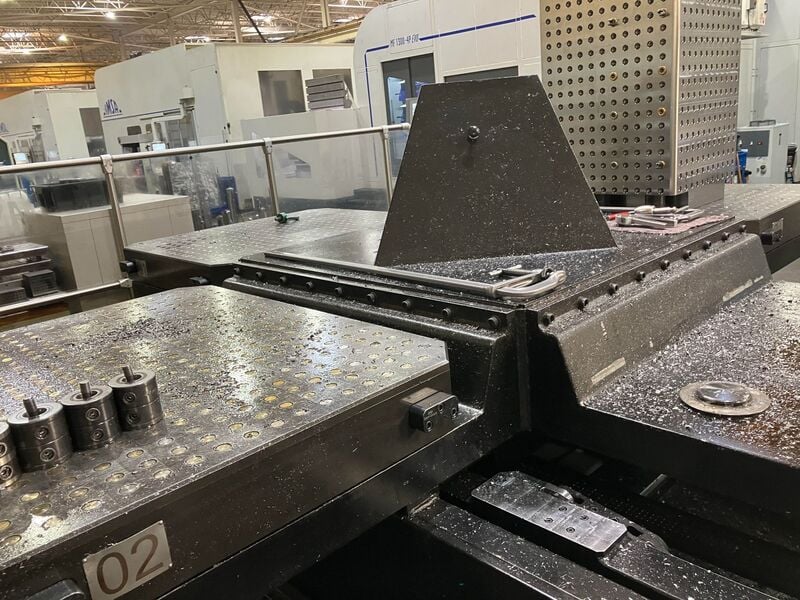

4-Station Pallet Changer
6-Station Gun Drill Automatic Changer/Storage
60-Station Automatic Changer for 40-Taper Milling Tools
Chip Conveyor
Misc. CAT40 Tool Holders
Manuals
Machine Weight: 97,000 Lbs.
