Description

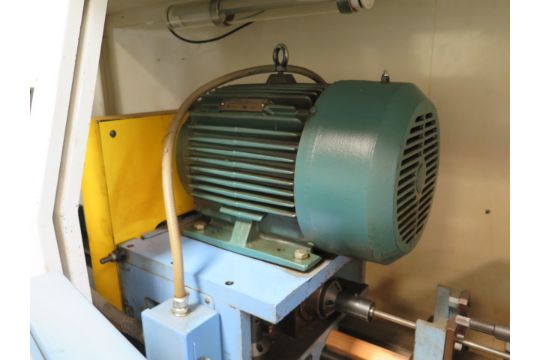

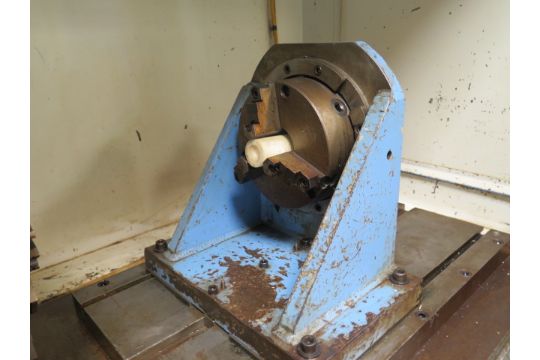

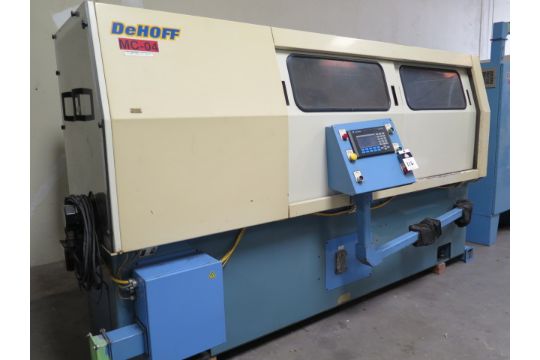

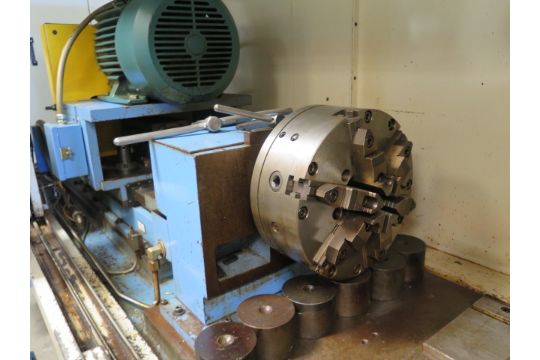

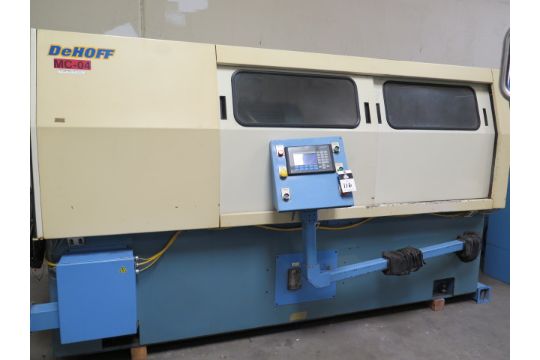

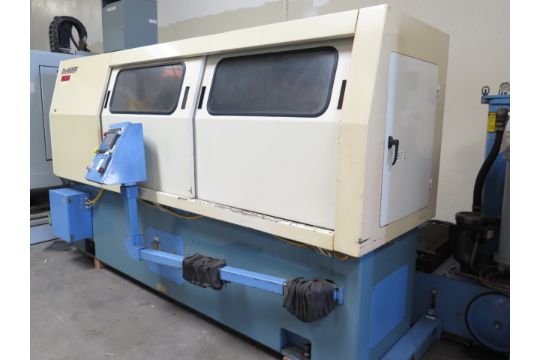

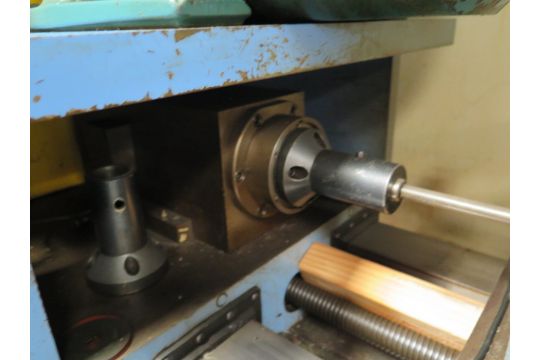

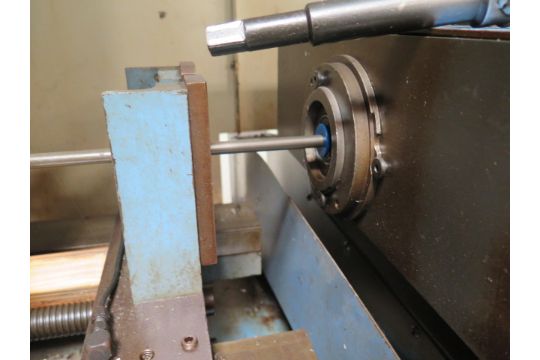

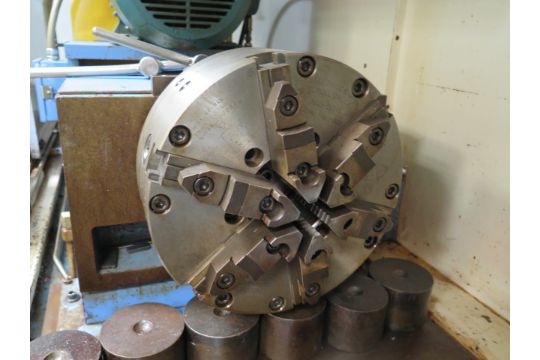

2001 De Hoff 1536 CNC Gun Drill #6854 #2 DeHoff Model 1536 Serial # DH-1977 Spindle Horsepower 7 1/2 HP Drill Capacity 1 1/2" Diameter Mild Steel Number of Drill Heads: 1 Number of Spindles: 1 Drill Head Stroke: 18 inches Feed Rate: .1 ipm to 30 ipm Rapid Retraction of Drill Head: 400 ipm Spindle Speed: 195-5,400 rpm Variable Frequency 3 Step / 2- Groove Pulley Spindle Centerline Parallel to Slide Way: <0.0005 inches/foot Face of Oil Pressure Head Perpendicularity < 0.0005 inches at 6 inch diameter Spindle Runout: <0.0002 inches, total indicator reading Tank Capacity: 300 Gallons High Pressure Coolant Pump: 60 gpm Maximum Pressure: 2000 Psi High Pressure Pump Motor: 30 HP Transfer Pump Motor: 3 HP / 80 gpm Machine Logic: Allen Bradley SLC 5/04 PLC Main Voltage: 460 volts, 3 phase Operator Control Voltage: 110 volt EQUIPPED WITH: Kays/De Hoff Gun Drill Sharpener Allen Bradley Panel View Controls 12" 6-Jaw Main Chuck 8" 3-Jaw Sub Chuck De Hoff Filtration Chip Conveyor
Can be seen under power!, 14 parts guaranteed., Possible up to 18, Bed is 24 wide., Can do up to 1. 1/4 holes, 48 of travel in the drill its self, 3000 lbs., Located at our warehouse in Preston, Idaho., We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our ...more
