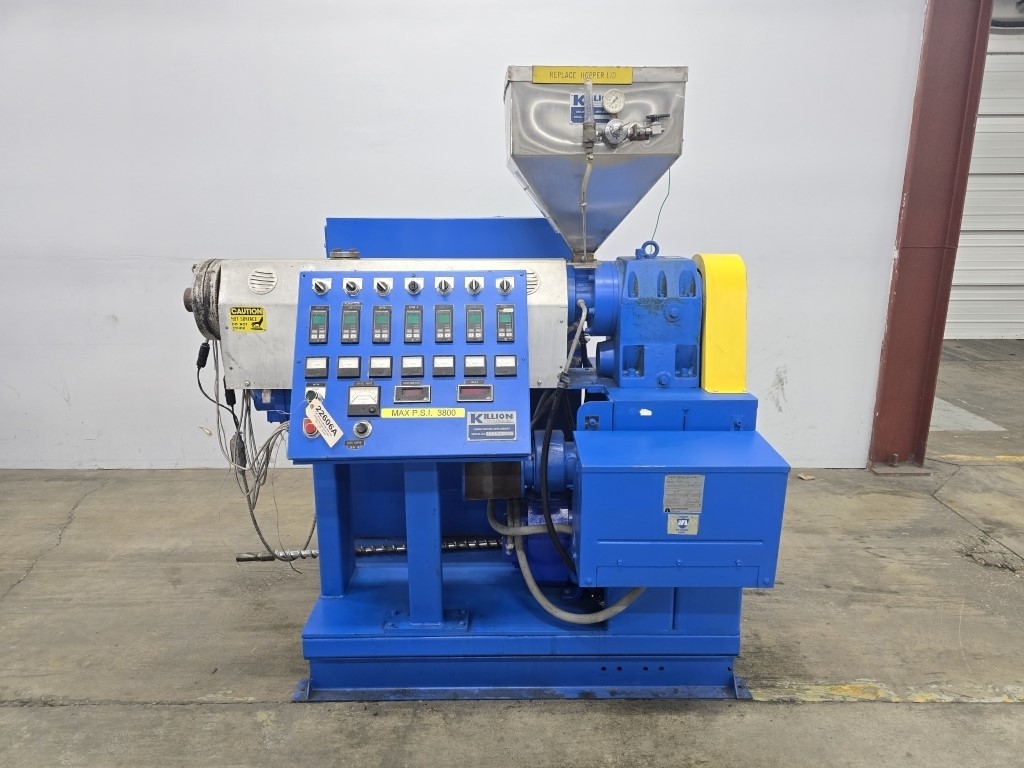

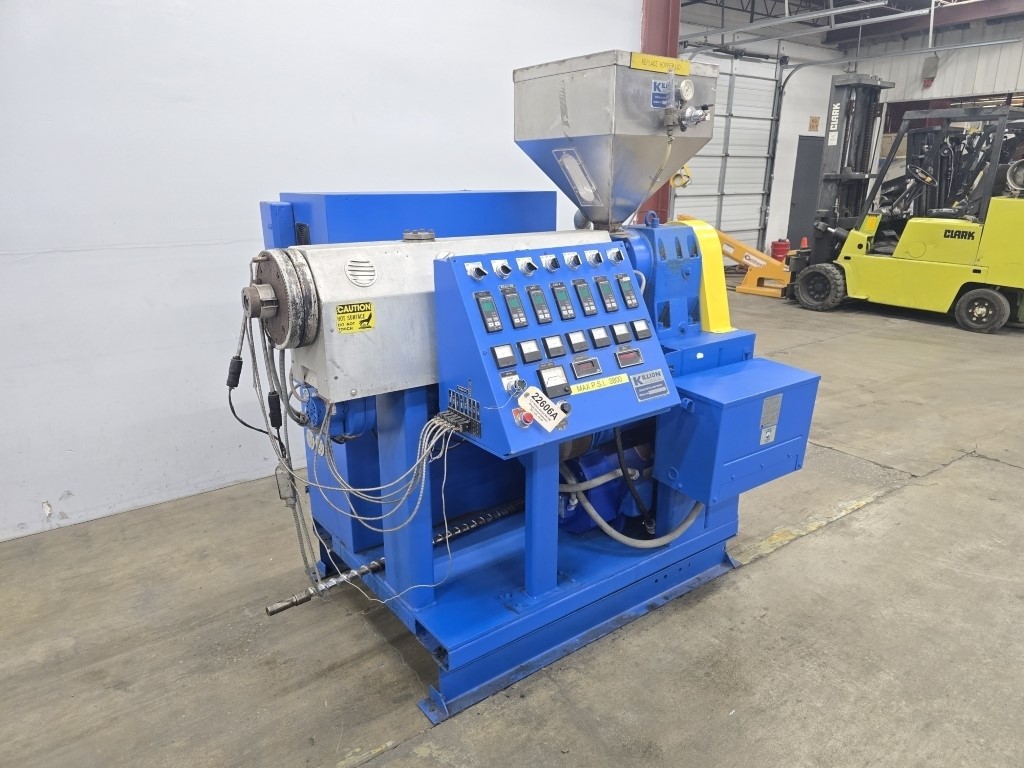

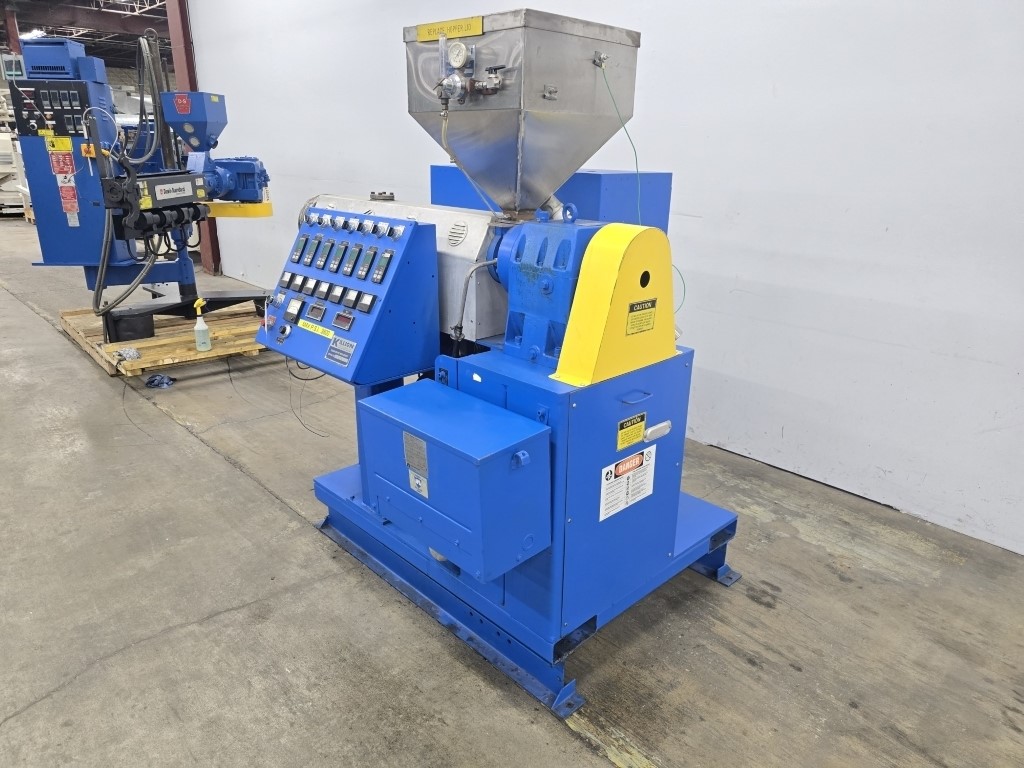

1.5" Killion #KN-150, single screw extruder, 30:1 L/D, 15 HP DC motor w/blower, 4 barrel zones, air cooled

Manufacturer: Killion
Model: KN-150
Dia.of Screw: 1.50
Stock # 22606A

For Sale by Arlington Machinery

Platinum Level Dealer
Surplus Record Dealer Since 1998
  Chris / Garrett
  847-95...> Show Seller's Phone Number 847-957-9731 Let the seller know you found their listing on Surplus Record!

Description

Description
  • Used 1.5" Killion Single Screw Extruder, Model KN-150, 30:1 L/D, 15 HP

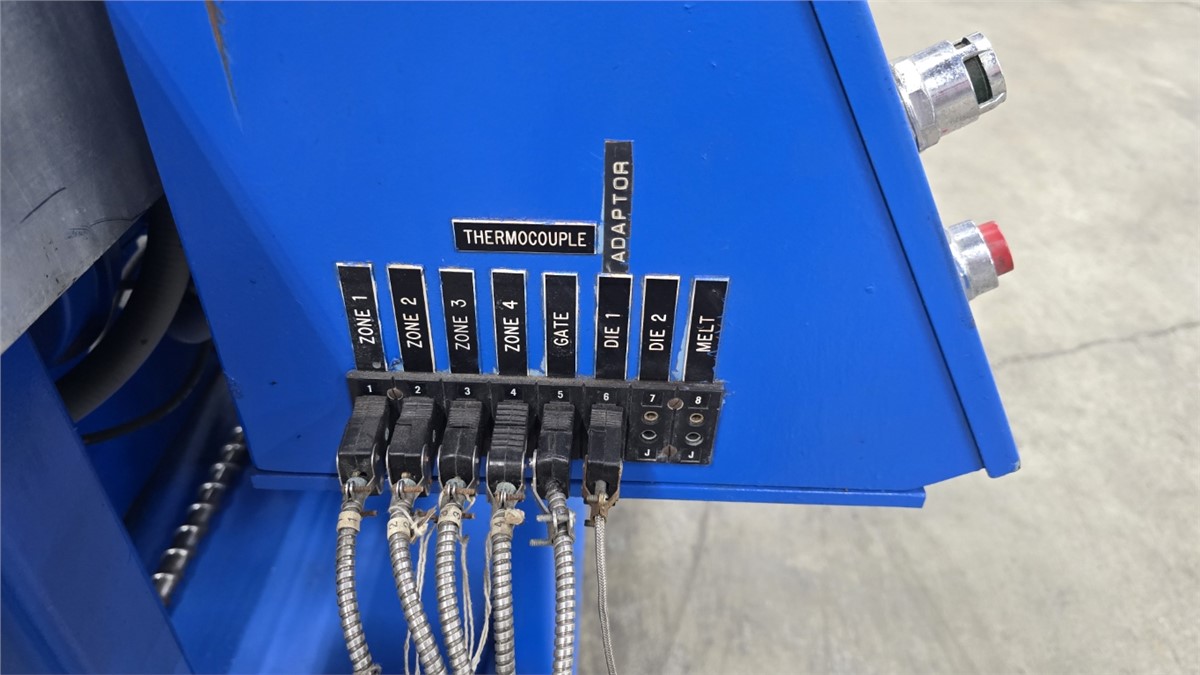

  • 4 Barrel Zones (Plugged), 3 Downstream Zones, Air Cooled

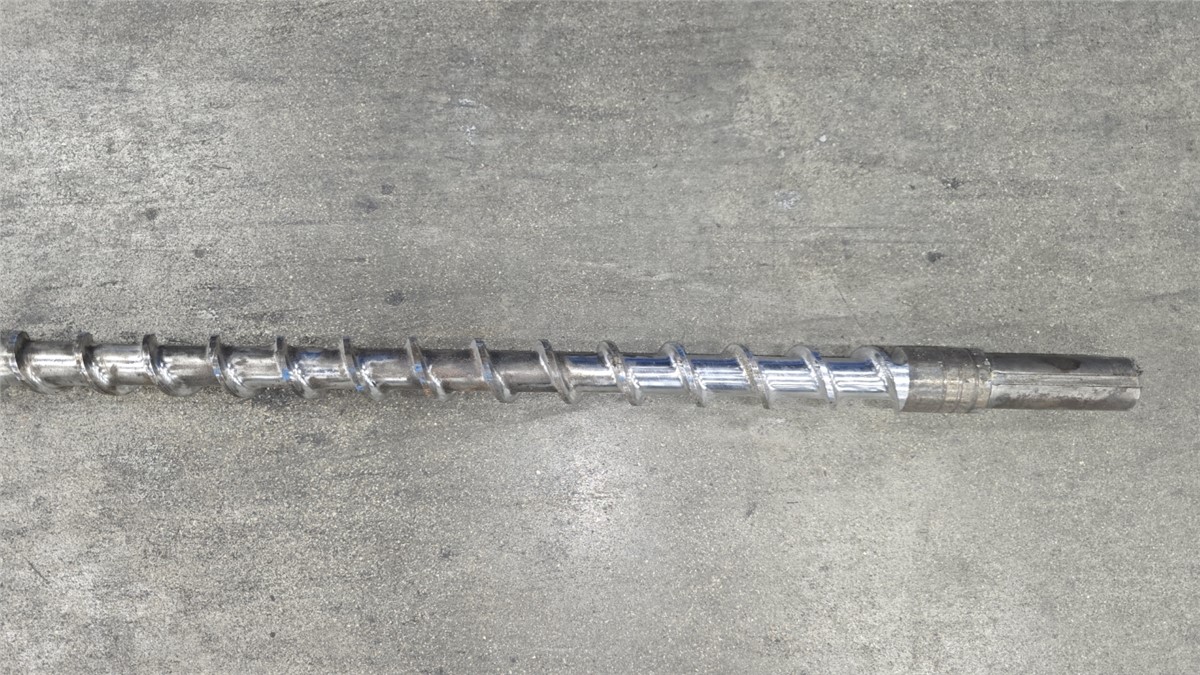

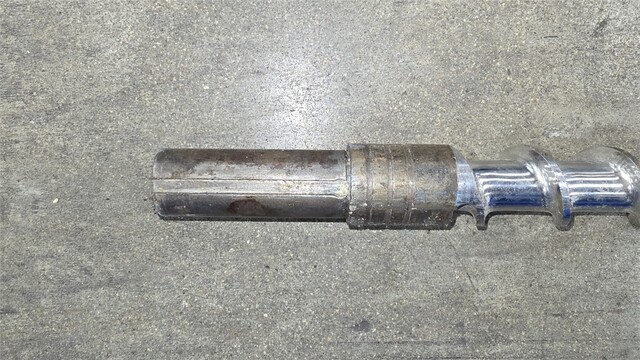

  • Standard Single Stage Screw
  • 48" Centerline Height
  • 2.5" x 3" Feed Throat w/ Slide Plate
  • Infeed Height: 74"
  • 15 HP DC Motor w/ Blower
  • 1750 RPM
  • 500 Volt, 26.5A
  • Frame: 257
  • Shunt Winding, Drip-Proof Enclosure
  • Koellmann Gearbox Rated For 16 HP, Size PEZS 20, S/N: 71093728/11
  • Gear Ratio: 11.2:1, 1.0 Service Factor
  • Input: 1400 RPM, Output: 127 RPM
  • Spectrum I 2200-8420C DC Drive Package, S/N: 169058-03-15-ER
  • AC Input: 460/3/60, 28 Max Amps
  • DC Output: 0-500 VDC, 34 Max Amps
  • Field Output: 300 VDC, 6 Max Amps
  • Eurotherm 808 Controllers, Dedicated On/Off Toggle Switches For Each Zone, Analog Simpson Amp Gauges, Start/Stop Buttons, Speed Pot, Digital RPM Gauge, Digital Pressure Readout
  • Machine Is Wired For 460V
  • Machine Nameplate: 460/3/60, 60 FLA
  • S/N: 12878
  • Approximate Dimensions: 73" L x 56" W x 74" H

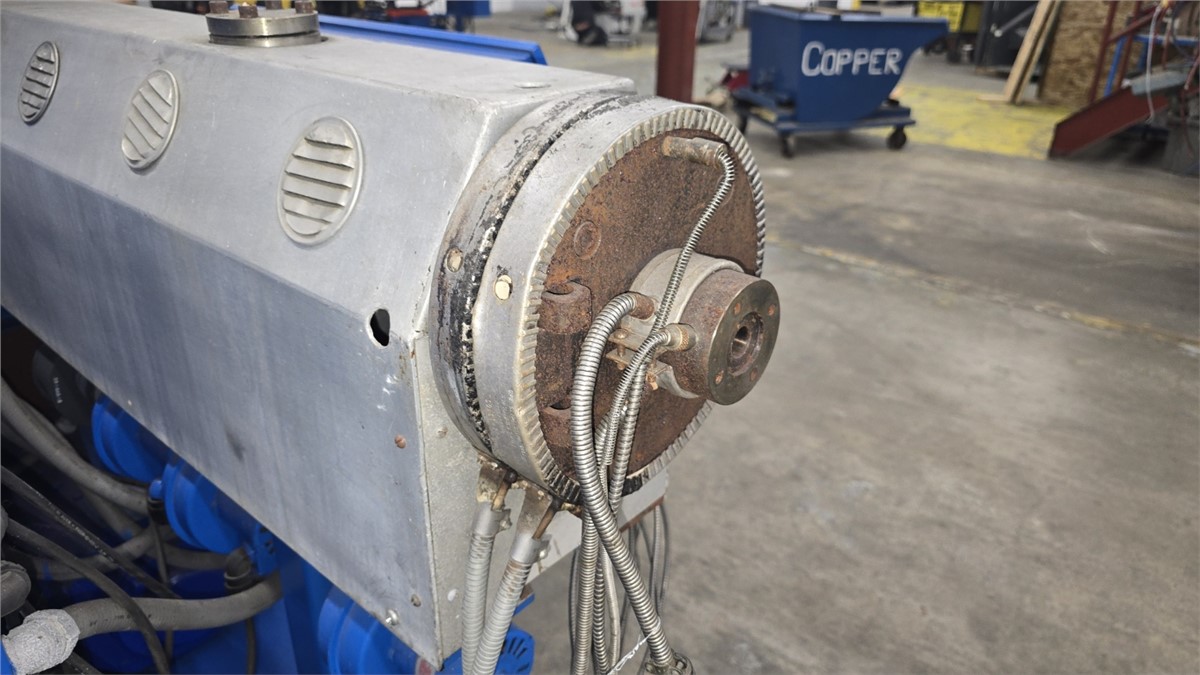

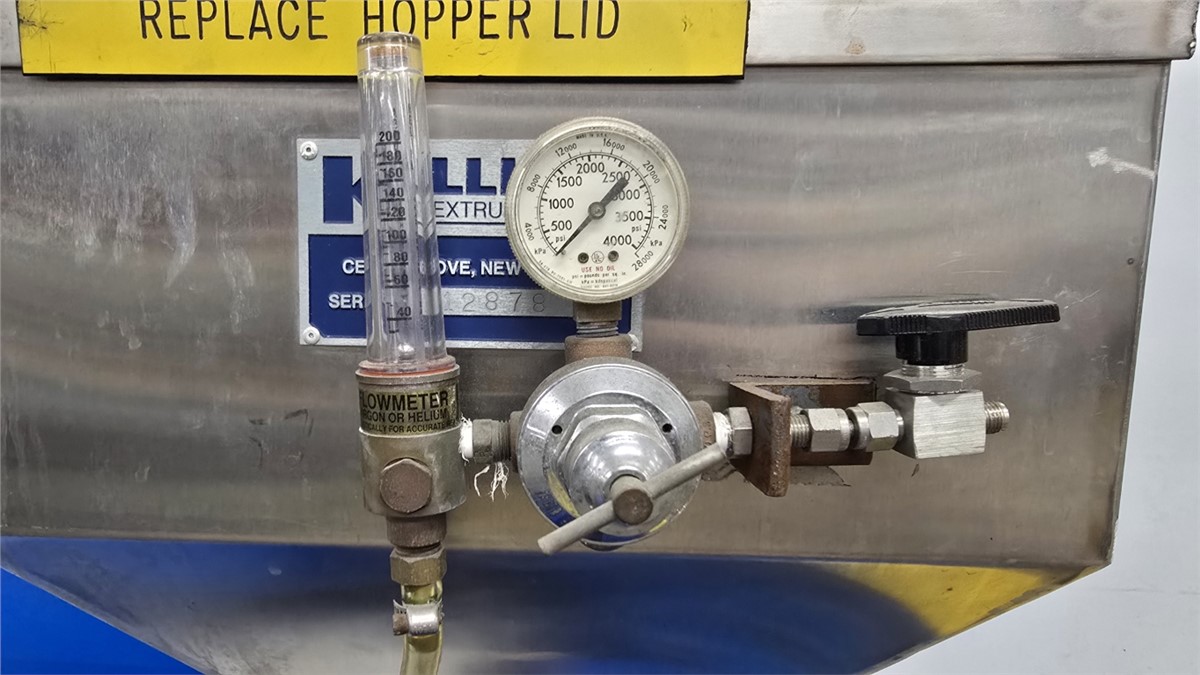

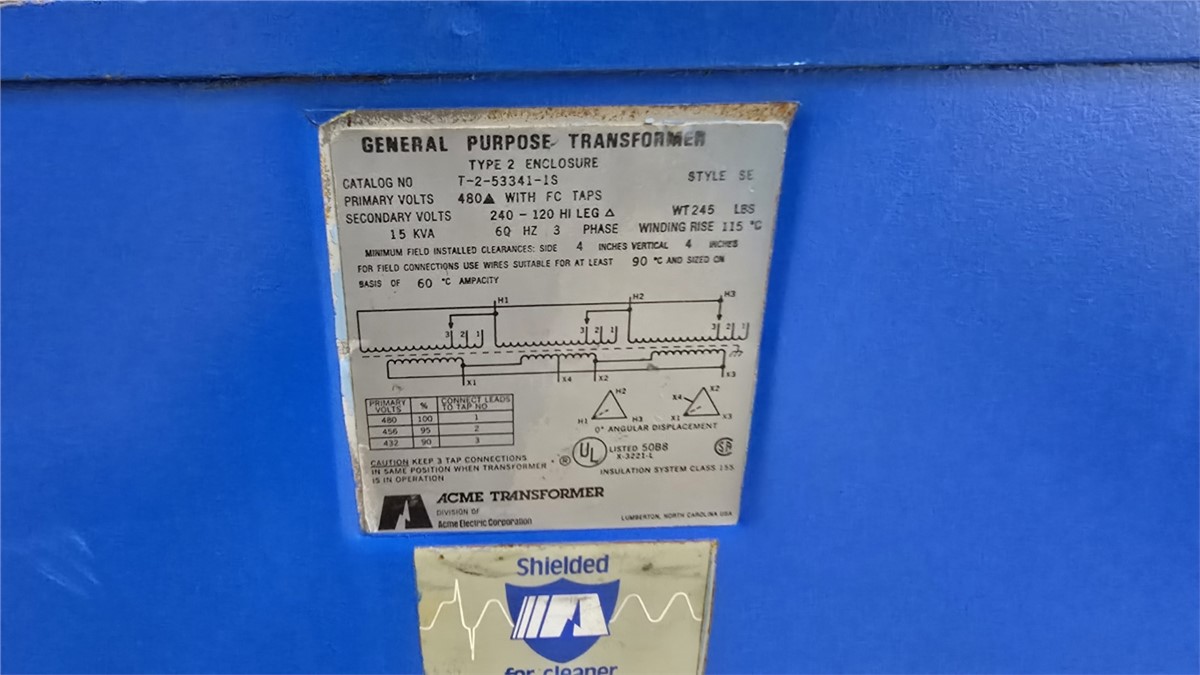

  • Includes Hopper, 15 KVA 480V Primary To 240/120V Secondary Type 2 Enclosure Acme Transformer For Controls & Auxiliaries, Extruder Has Discharge Flange For Mounting Die And Adaptor
  • **Die Head/Tooling NOT INCLUDED**
  • Quoted And Sold As-Is
  • Just Purchased Additional Pictures Coming Soon
