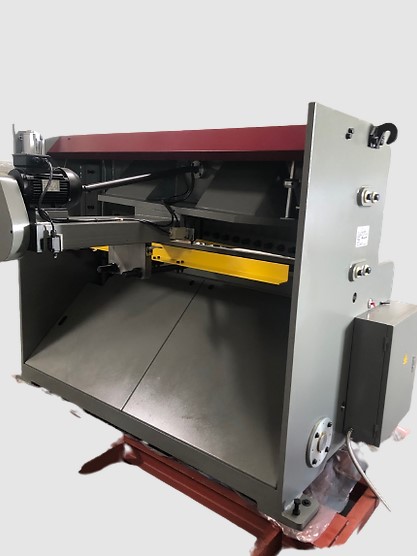

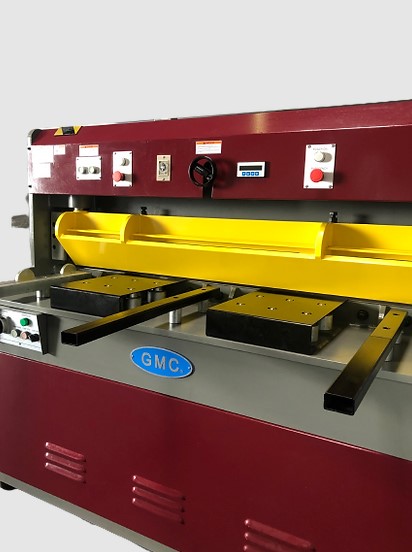

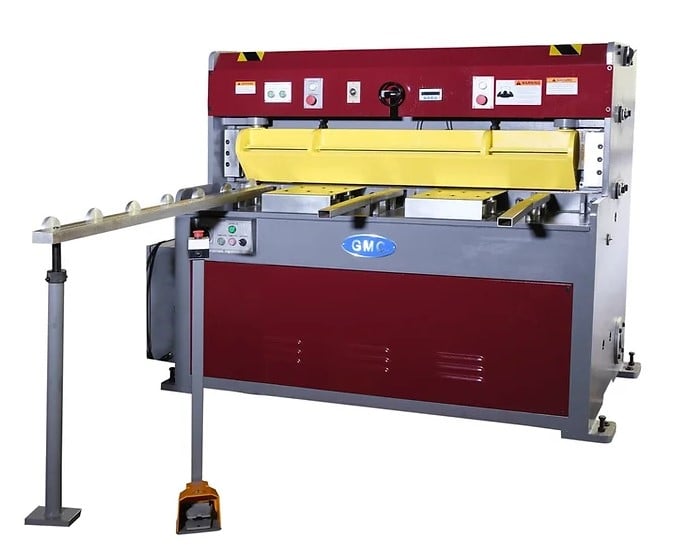

1/4" x 6' GMC #HS-0625E, Hydraulic Shear, 78" L Blade, 10-17 SPM, 18" Throat Depth, 24" Support Arm, 34" Back Guage, 10 HP, new

Description

GMC 6′ x 1/4″ Hydraulic Shear, HS-0625E

Inventory # 6294

Model: HS-0625E

Specifications:

Capacity:

Mild Steel: 6′ x 1/4″

Stainless Steel: 6′ x 10 Gauge

Blade Length: 78″

Strokes per Minute: 10 – 17 (Adjustable)

Throat Depth: 18″

Front Support Arm: 24″

Back Gauge: 24″ (Power)

Blade Rake Angle: 2°

Worktable Height: 34 1/2″

Oil Tank: 25 Gallons

Motor: 10 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

ISO 9001 certified

Automatic quick change blade gap adjustment (BGA), no lever required

Shadow line for accurate straight-cutting

Adjustable cutting length and stroke

Ball transfer plates on the worktable for easy loading of workpiece

Well-balanced and sturdy all-steel machine frame

German-made hydraulic logic system centrally located and quiet

Hydraulic hold-downs with anti-mar neoprene

Shear blades are high-grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade

Full-length viewable safety finger guard to protect operator from cutting hazard

Removable safety foot pedal; automatic blade raises up on the removal of foot from the pedal

Hydraulic and electrical overload protection

Compact operator control panel

All motors are overload-protected and low low-voltage control system

Jog or continuous auto cycle cutting operation modes

One-year industrial warranty for parts

Standard Equipment:

24″ German SIKO front operated power back gauge with micro adjustment

60″ squaring arm with inlaid inch/metric dual scale

Material support and drop back chute

Upper and bottom blades set with 4-edge on the bottom and 2-edge on the upper

(2) 24″ front support arms

Mechanical Specifications:

Dimensions: 102″ x 89″ x 63″ H

Weight: approx. 7,650 lbs.

FOB Factory – Contact us for availability

Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty
