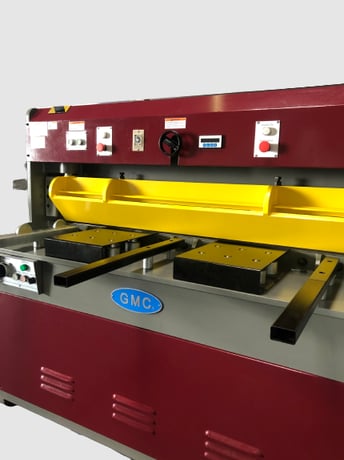

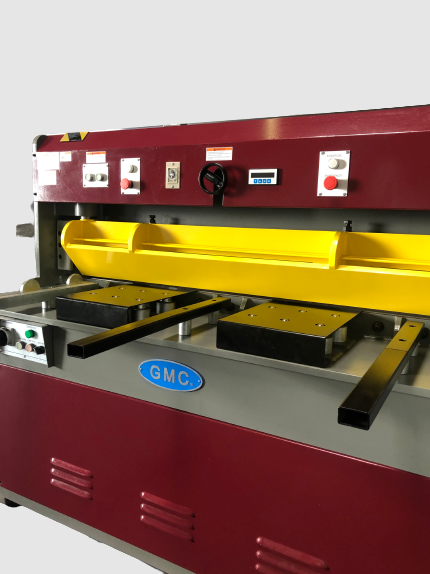

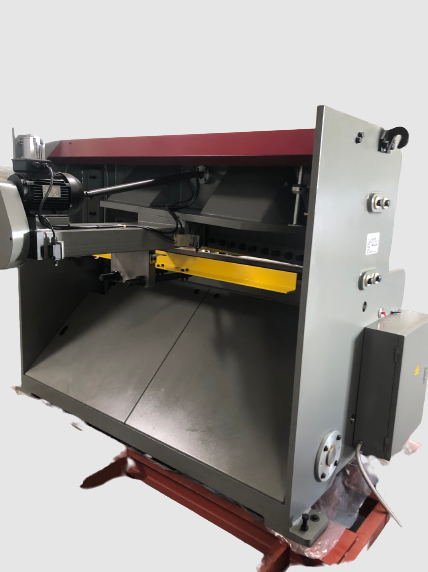

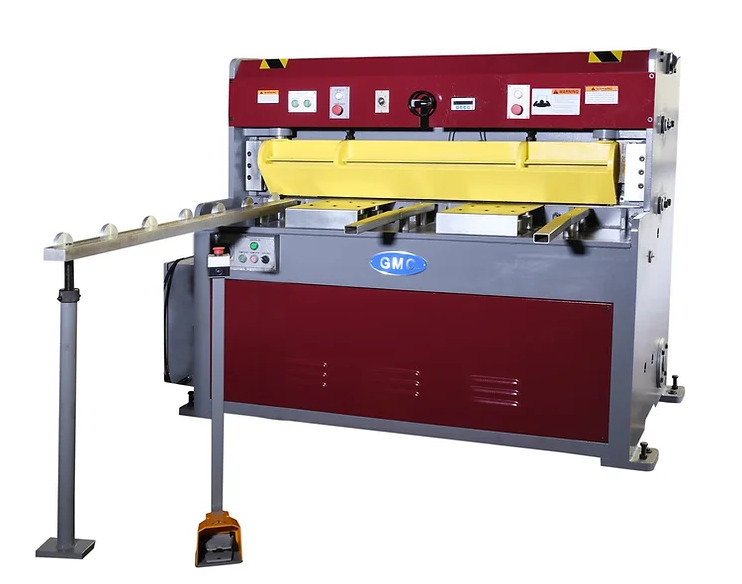

1/4" x 4' GMC #HS-0425E, Hydraulic Shear, 52" L Blade, 12-20 SPM, 18" Throat Depth, 34.5" H Table, 24" Support Arm, 24" Back Guage, 10 HP, new

Description

GMC 4′ x 1/4″ Hydraulic Shear, HS-0425E

Inventory # 5345

Model: HS-0425E

Specifications:

Capacity:

Mild Steel: 4′ x 1/4″

Stainless Steel: 4′ x 10 Gauge

Blade Length: 52″

Strokes per Minute: 12 – 20

Throat Depth: 18″

Worktable Height: 34 1/2″

Front Support Arm: 24″

Back Gauge: 24″

Blade Rake Angle: 2°

Oil Tank Capacity: 15 Gallons

Main Motor: 10 HP / 220v, 440v / 3ph

Standard Features:

ISO 9001 certified

24″ German SIKO front-operated power back gauge

Automatic quick change blade gap adjustment (BGA), no lever required

CE standard “OMERO” electric control system

Meet OSHA safety standard code

Shadow line for accurate straight cutting

Adjustable cutting length and stroke

Ball transfer plates on worktable for easy loading workpiece

Well balanced and sturdy all steel machine frame

German made hydraulic logic system centrally located and quiet

Hydraulic hold-downs with anti-mar neoprene

Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade

Full length viewable safety finger guard to protect operator from cutting hazard

Removable safety foot pedal, automatic blade raise up on removal of foot from pedal

Hydraulic, electrical overload protection

Compact operator control panel

All motors are overload protected and low voltage control system

Jog or continuous auto cycle cutting operation modes

One year industrial warranty for parts

Standard Equipment:

24″ German SIKO front operated power back gauge with micro adjustment

(1) 60″ squaring arm with inlaid inch/metric dual scale

Automatic quick change blade gap adjustment (BGA)

Shadow line for accurate straight cutting

Material support and drop back chuter

Upper and bottom blade set with 4-edge on bottom and 2-edge on upper

(2) 24″ front support arms

Hydraulic hold-downs with anti-mar neoprene

Full length viewable finger guard

Removable safety foot pedal

Mechanical Specifications:

Dimensions: 74″ x 86″ x 63″ H

Weight: approx. 5,380 lbs.

FOB Factory – Contact us for availability

Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty
