Description

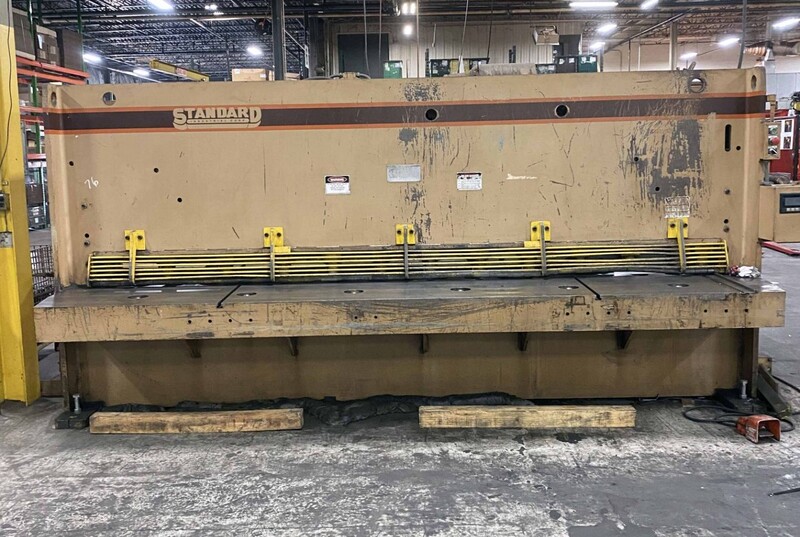

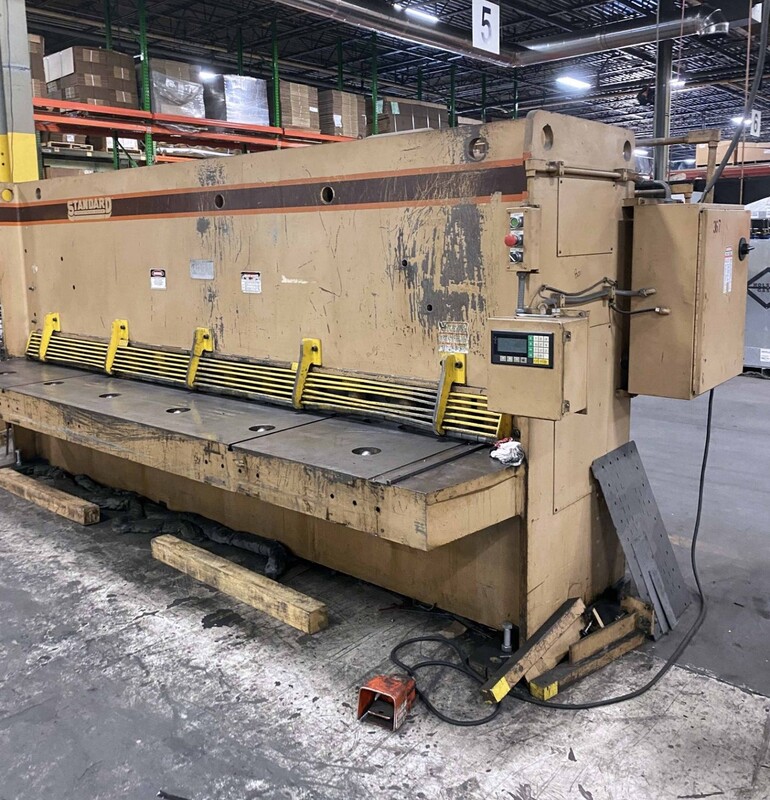

12' x 1/4" STANDARD-INDUSTRIAL HYDRAULIC POWER SQUARING SHEAR Serial No F10011096, Model AS250-12 12' x 1/4" STANDARD-INDUSTRIAL HYDRAULIC POWER SQUARING SHEAR Serial No F10011096, Model AS250-12 EQUIPPED WITH: 36" Front Operated Power Back Gauge Adjustable Stroke Length Ball Rollers In Table Hydraulic Hold-Downs No Pit Required CATALOG SPECIFICATIONS: Shearing Capacity, Maximum 12' x 1/4" Shearing Tons Available 36 TON Number of Hydraulic Hold-Downs 13 Total Hold-Down Pressure 36 TON Blade Size 1" x 3" x 148" Strokes Per Minute, Full-Width 15 SPM Strokes Per Minute, 12"-Wide 40 SPM Ram Speed Down 110 IPM Ram Speed Up 173 IPM Motor, Horsepower 20 HP Overall Dimensions, L x W 174" x 87" Overall Height 86" Weight, Approximately 25000 LBS F.O.B. OUR WAREHOUSE
12 ft. x ¼’’ Capacity230/460, 3ph Voltage40h.p. MotorWeight 35,000lbsDimensions 174’’ L x 87’’ W x 106’’ TOptions or Upgrades, 48’’ programmable BackgaugePower blade gapAdjustable rake angle8-24 S.P.M.
Make: Steelweld, Serial # M-3495, Max Material Width: 12', Material Thickness:.250", Number of Hold-Downs: 14, Knife and Hold-Down Guard, Disc Clutch & Brake, AC Motor Drive.
