1/4" x 10' U.S. Industrial #US1025CNC, CNC Hydraulic Shear, 126" Sheet, 0.75"-36" Back Gauge, 14/min No Load Strokes, 15 HP, new

Description

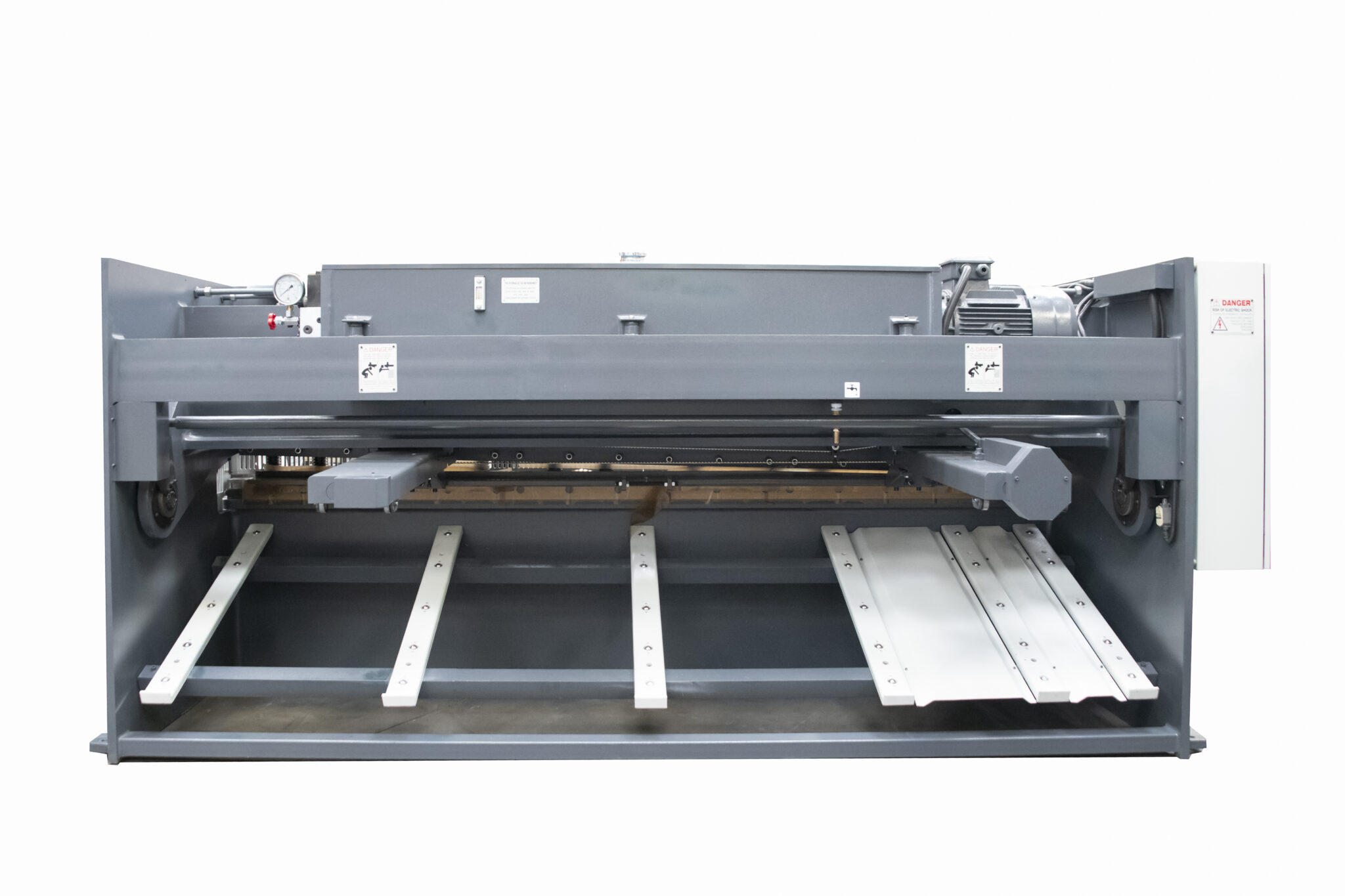

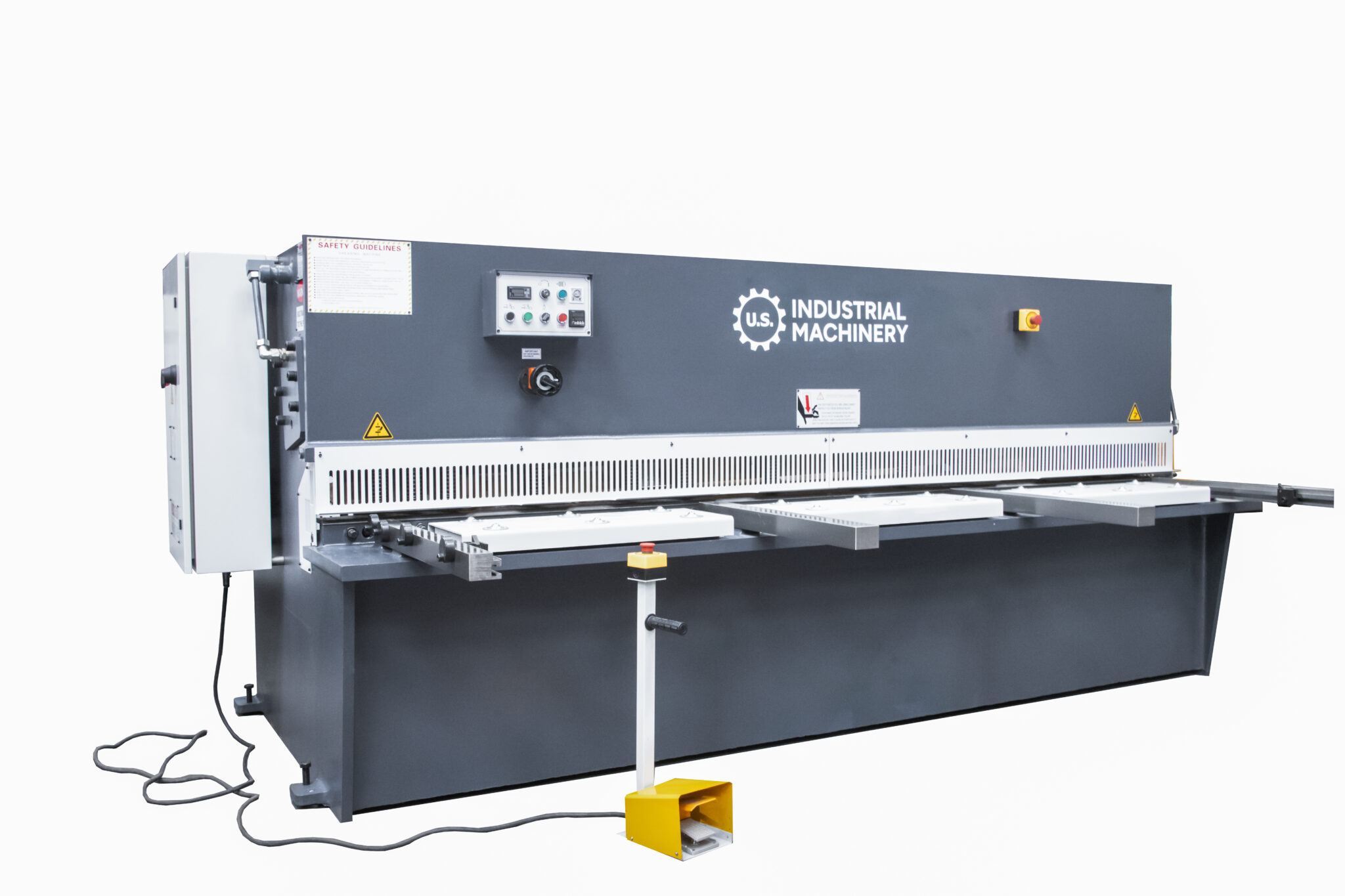

U.S. Industrial 10′ x 1/4″ Hydraulic Shear, USHS10250

Inventory # 3366

Model: USHS1025

Specifications:

Max. Thickness:

Mild Steel: 1/4″

Stainless Steel: 1/8″

Max. Cutting Length: 10′

Tensile Strength of Mild Steel: 65k PSI

Tensile Strength of Stainless Steel: 95k PSI

No Load Strokes: 14 /Min.

Oil Capacity: 69 Gallons

Number of Hold Downs: 13

Top Number of Blade Segments: 3

Bottom Number of Blade Segments: 3

Motor: 15 HP / 220v, 440v / 3ph (36Amp @ 220v, 18Amp @ 440v)

Standard Equipment:

Swing beam design

Front operated power back gauge with digital readout

OSHA finger guarding with microswitch for safety

Automatic swing-up feature on back gauge

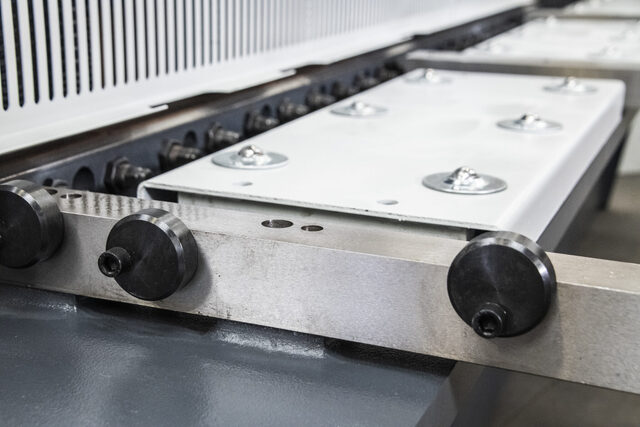

39″ squaring arm with inlaid scale from blade to end

Support arms across the front of the machine

Bolt on table segments with roller ball transfers

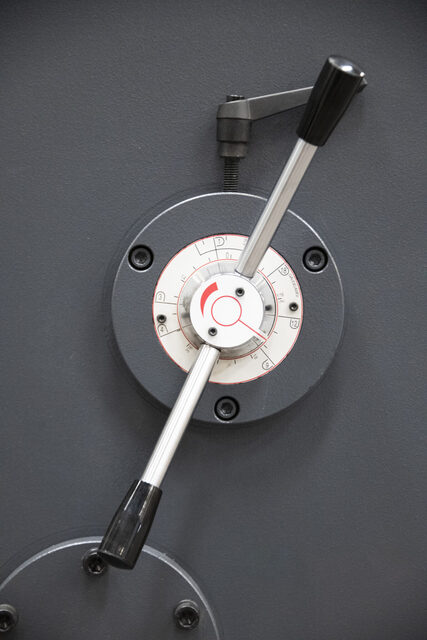

Manual quick change blade gap adjustment

Hydraulic hold downs with anti-scratch neoprene pads

Electric stroke adjustment with stroke counter

Full set of 6CrW2Si blades for cutting mild steel

Low noise hydraulic gear pump

Shadow line with LED lighting for visual cut alignment

Thermal overload protection

Foot pedal with extended cable

Material drop support chute for ease of collecting trim pieces

Available Upgrades/Options:

ESA CNC computer control

Pneumatic sheet support for cutting of thinner, lighter gauge material

48″ back gauge with no swing-up feature

Front light curtains for additional safety

Rear light curtain with safety gates for additional safety

Cr12MoV blades for cutting stainless steel and harder alloys

6′ squaring arm

8′ squaring arm

10′ squaring arm

Training at the customer’s site by a U.S. Industrial Machinery technician

Mechanical Specifications:

Dimensions: 149″ x 71″ x 83″ H

Weight: approx. 13,230 lbs.

FOB Factory – Contact us for pricing and availability
