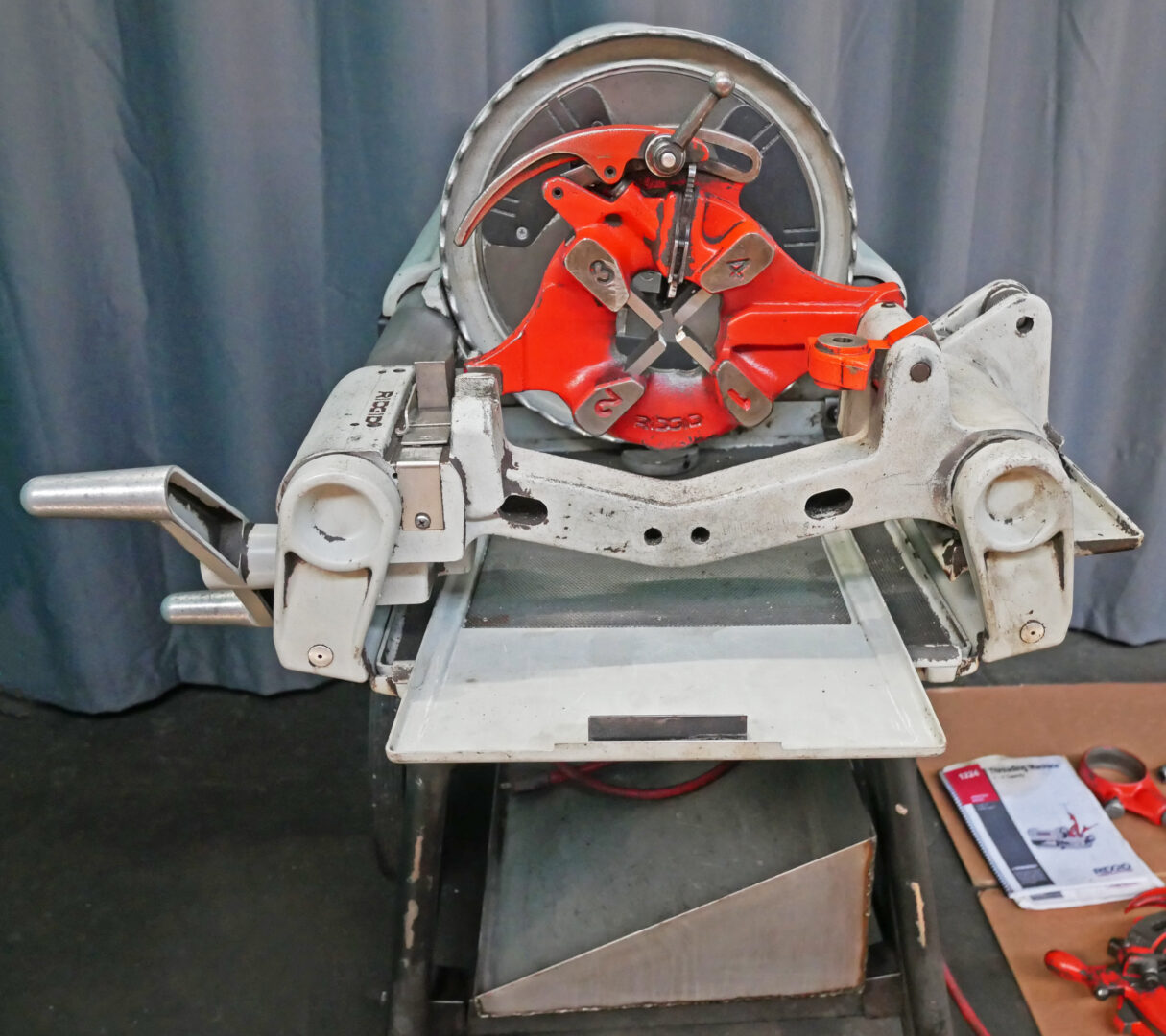

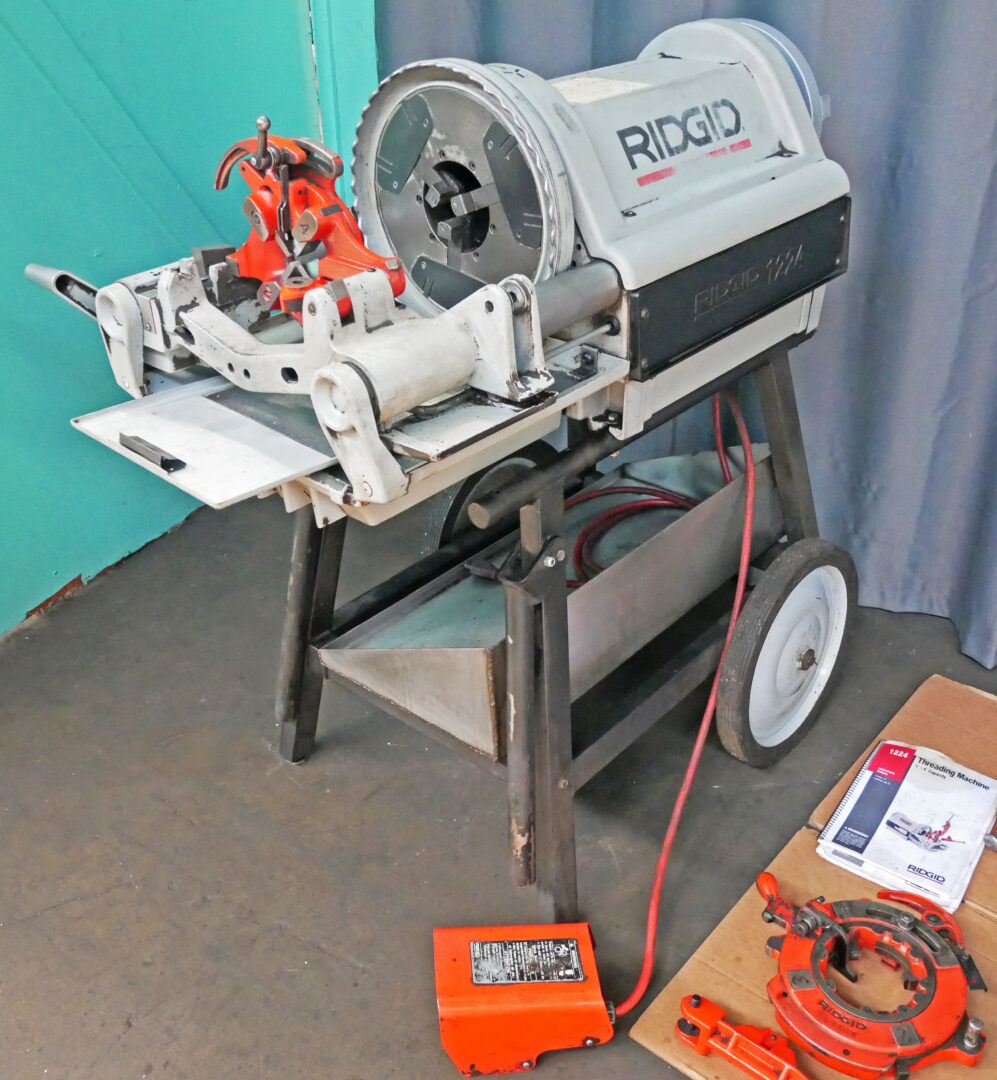

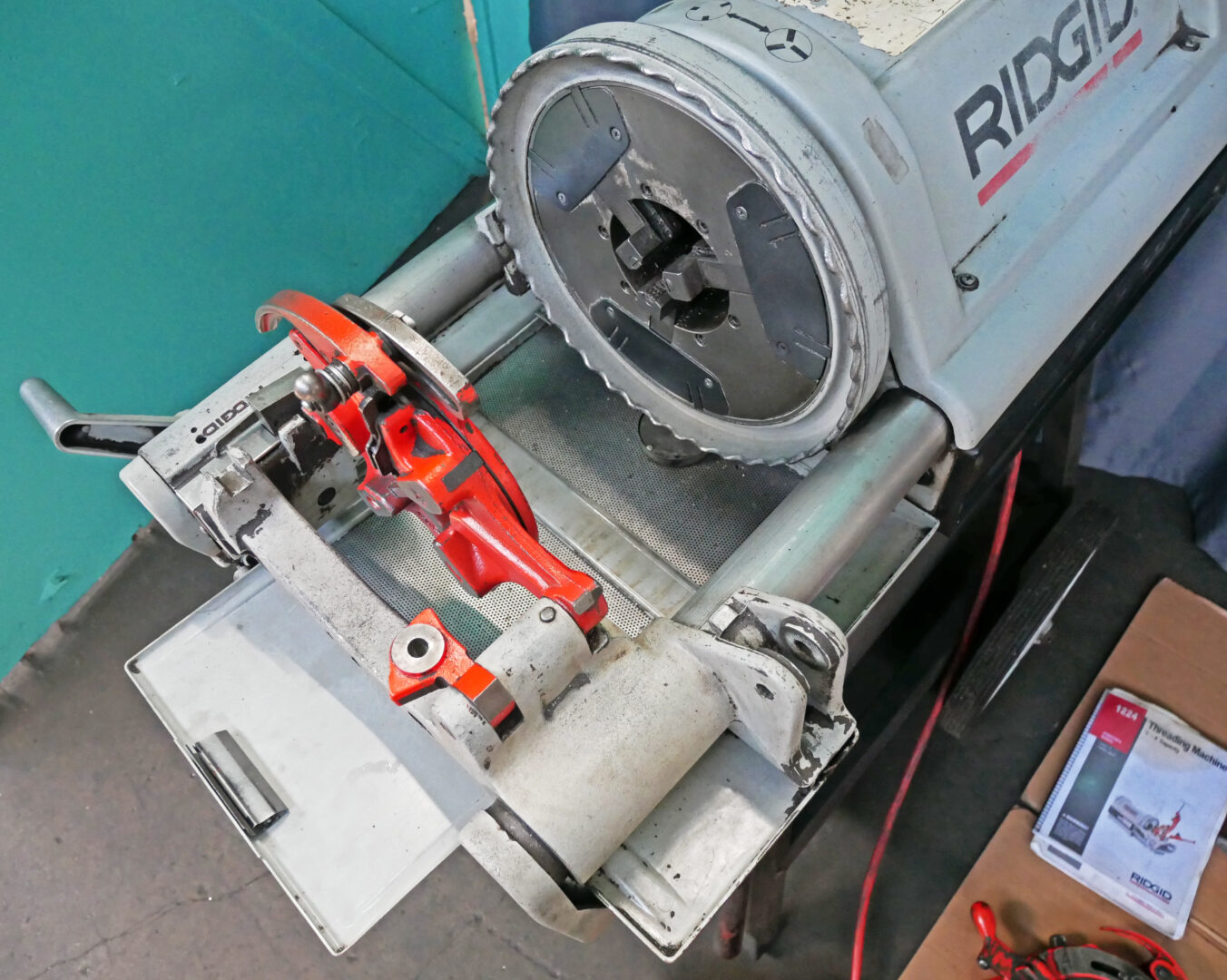

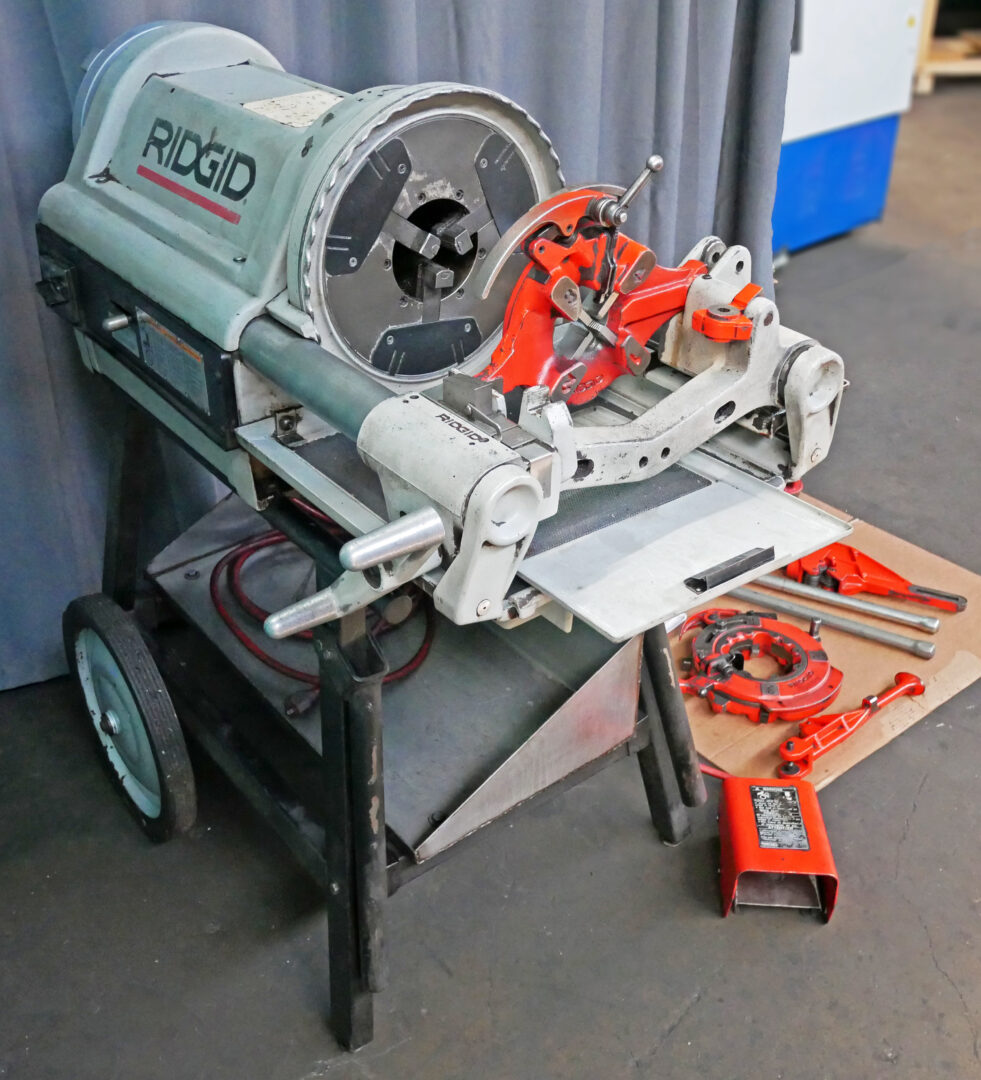

1/4" -6" Ridgid #1224, Pipe Threader, 1.5 HP, die heads

Description

Ridgid Pipe Threader, 1224

Inventory # 10128-P

Model: 1224

S/N: EB07694

Click Here for the Manual

Specifications:

Die Head:

Nominal Pipe Capacity: 1/4″ – 2″ @ 36 RPM, 2 1/2″ – 4″ @ 12 RPM (Ability for 4″ – 6″ with an optional 161 Geared Threader, not included)

Bolt Capacity: 1/4″ – 2″

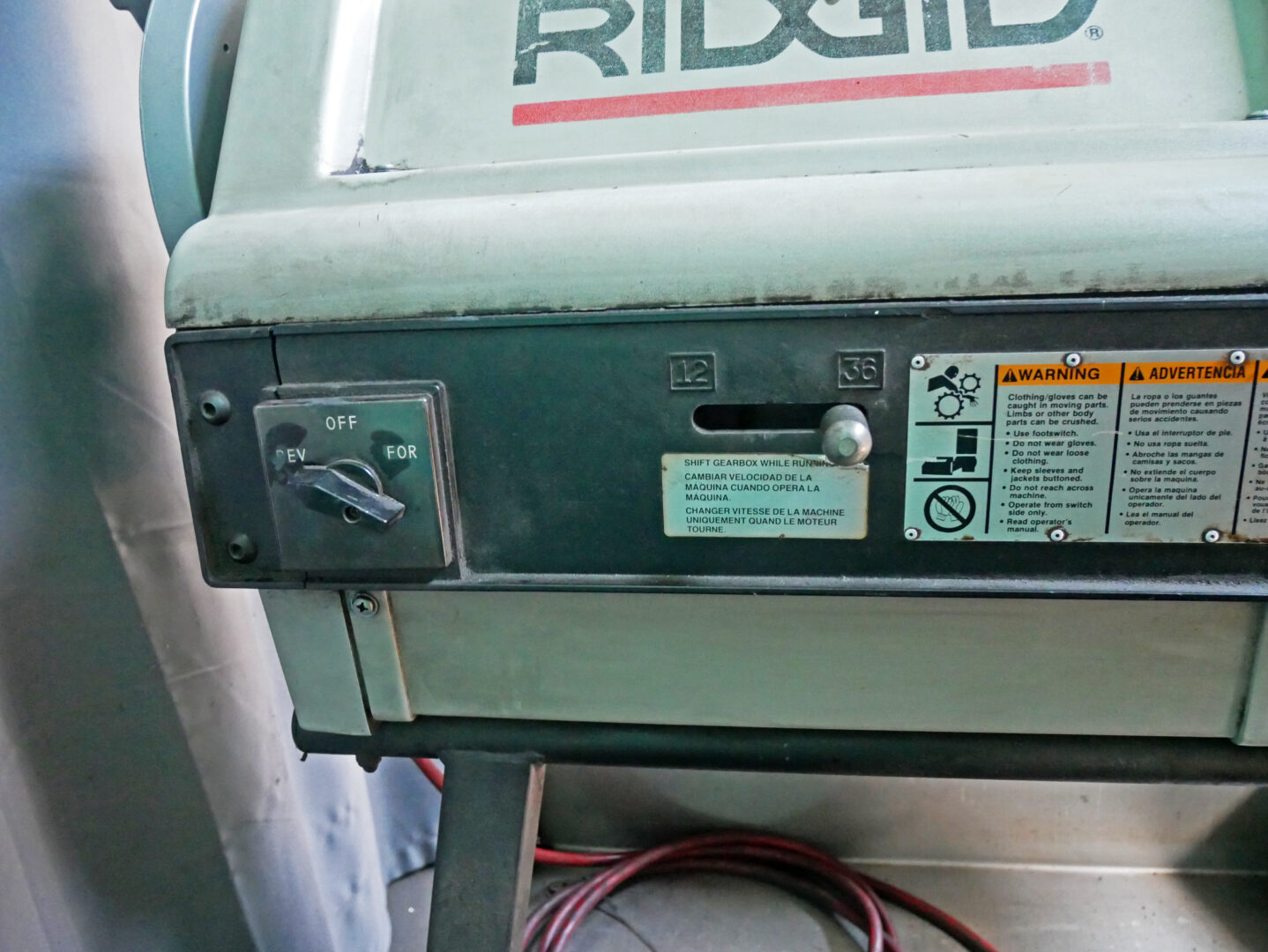

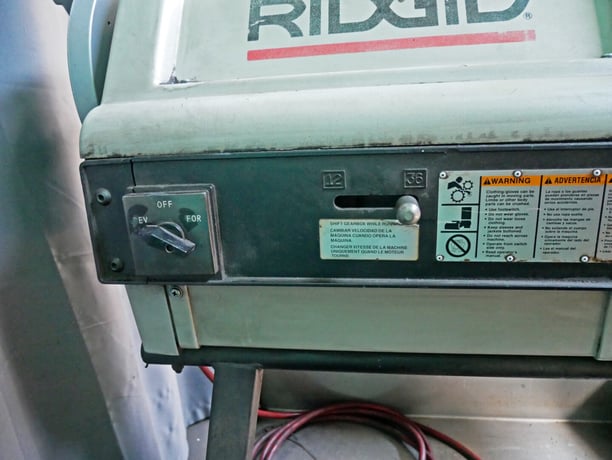

Motor Control: Reverse/Off/Forward, Heavy-Duty Rotary-Type and Integral Foot Switch

Gear Box: Two-Speed Gear Box with 3:1 Ratio

Chuck: Hammer-Type with Replaceable Rocker-Action Jaw Inserts

Rear Centering Device: Cam Action

Oiling Pump: Self-Priming, Gerotor-Type, Automatic-Reversion, Constant-Flow

Oiling: Through Die Head

Motor: 1.5 HP / 120v / 1ph

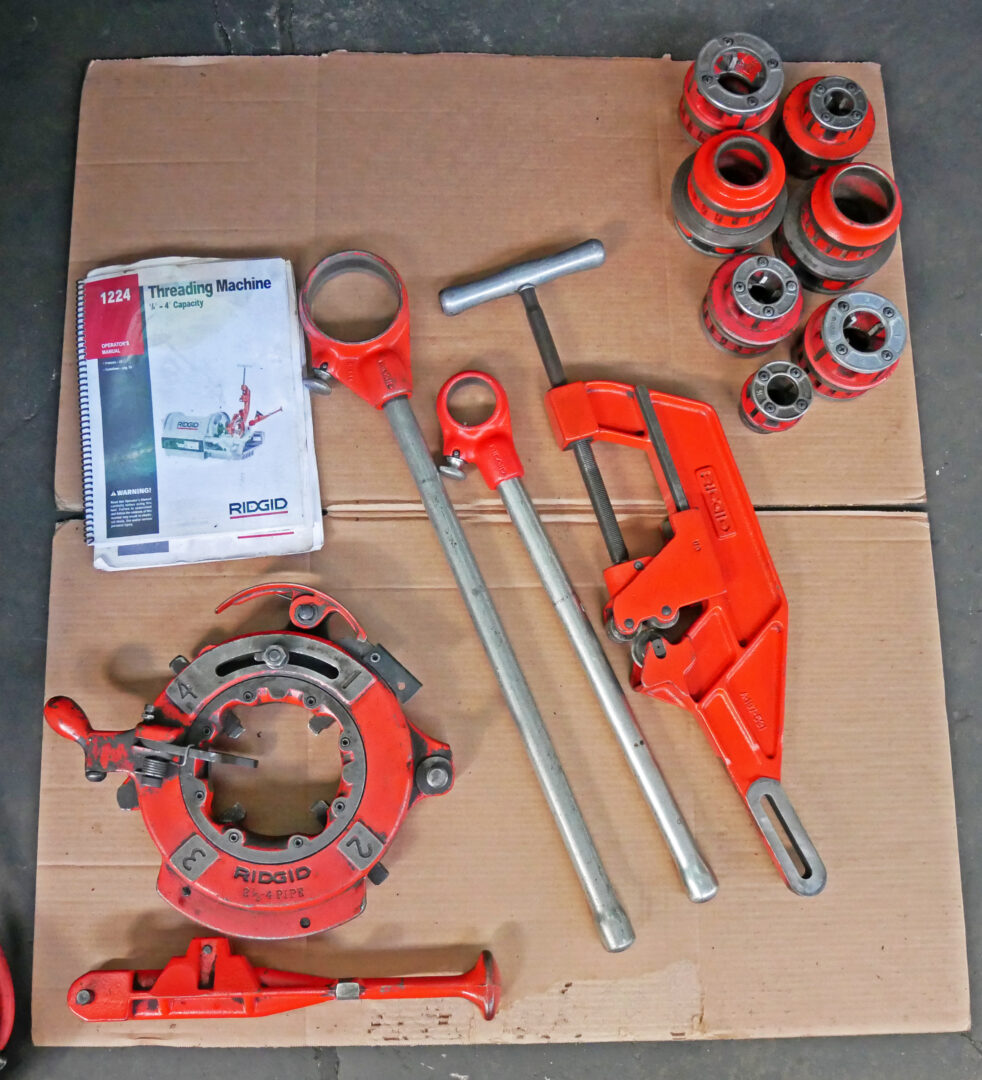

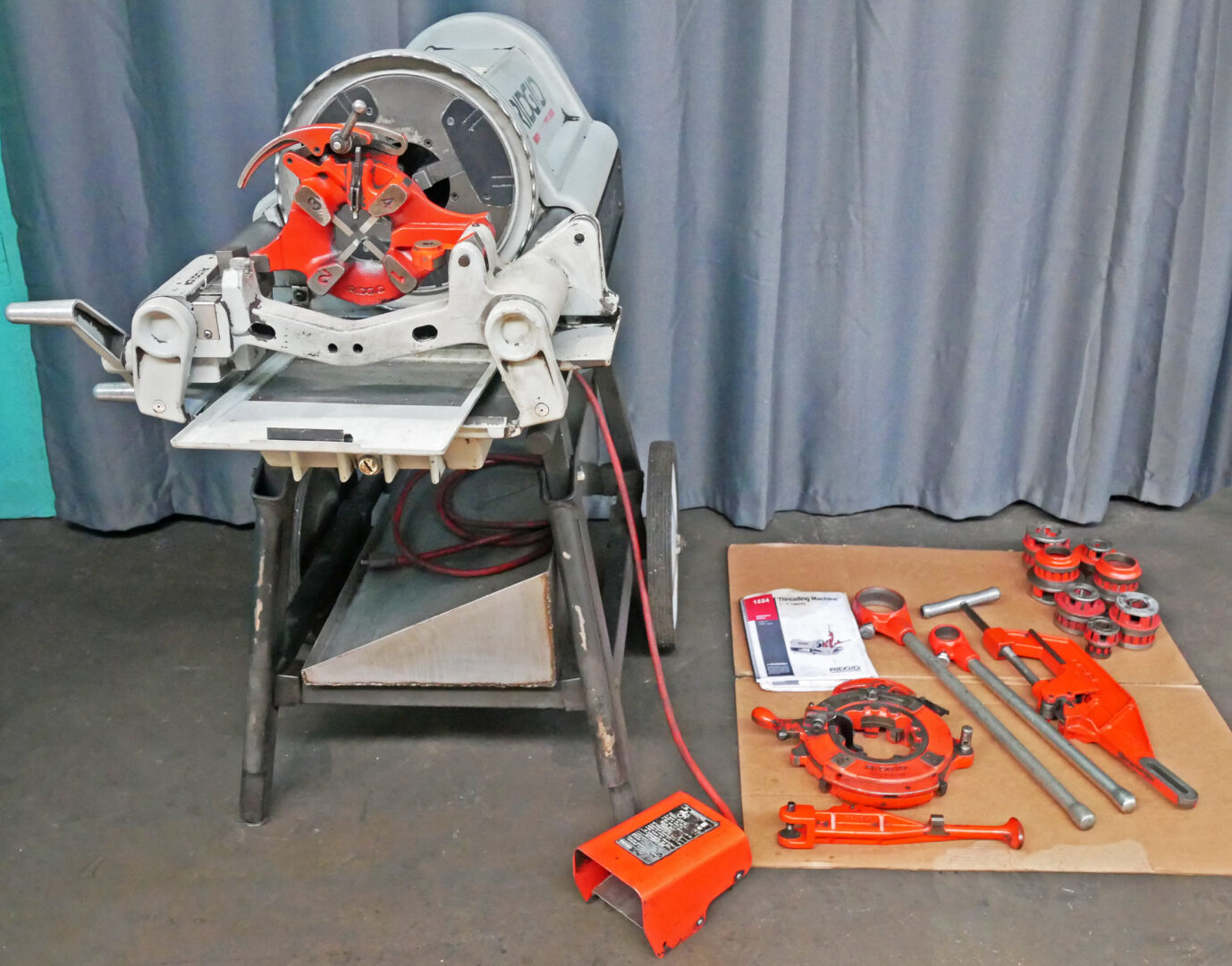

Equipment Included:

Tooling as shown for the Ridgid 1224 threading machine

Two manual threading handles with the following tooling:

(2) 1/2″ Die Heads

3/4″ Die Head

1″ Die Head

1 1/4″ Die Head

1 1/2″ Die Head

2″ Die Head

Mechanical Specifications:

Dimensions: approx. 50″ x 30″ x 50″ H

Weight: approx. 510 lbs.

New Replacement Cost: $13,650.00

FOB Our Baltimore, MD Warehouse
