1/4" -1-1/2" Ercolina #MB42, rotary draw bender, 1-1/4" Sch 40 Pipe, 1-1/2" Tube

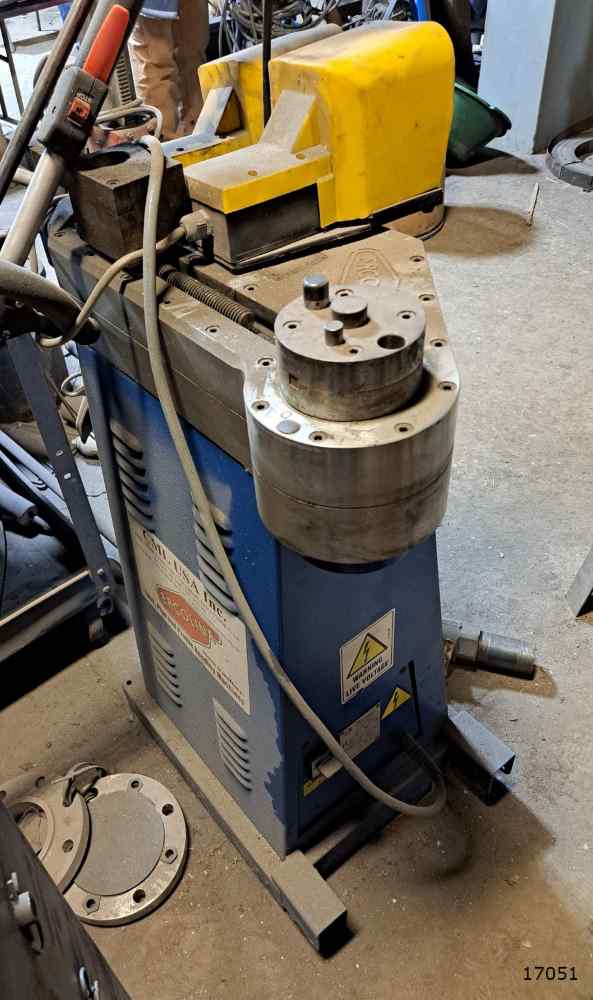

ERCOLINA (USED) MODEL MB42 ROTARY DRAW BENDER
SPECIFICATIONS
1/4" MINIMUM DIAMETER
1-1/2" MAXIMUM DIAMETER
2D MINIMUM CLR
(DEPENDING MATERIAL AND WALL THICKNESS)
7-1/2" MAXIMUM CLR
2 RPM BENDING SPEED
PROGRAMMING
- NC WITH TOUCH PAD
- (10) INDIVIDUAL PROGRAMS WITH
- (9) BENDS WITHIN EACH
2 HP MOTOR
460 VOLT, 3 PHASE
CAPACITIES
- 1-1/4" SCH 40 PIPE
- 1-1/2" TUBE
- 1-3/8" X 1-3/8 SQUARE TUBE
- 1-5/8" SOFT BRASS
- 1-3/8" STAINLESS
- 2" HYDRAULIC TUBE
- 1-3/4" COPPER/*ALUMINUM
- 1" ROUND SOLIDS
- 1/4" X 1-1/2" RECTANGULAR SOLIDS
- 5/8" X 1-3/8" RECTANGULAR TUBE
- 1" X 1" SOLID SQUARE
--ALL CAPACITIES BASED ON MILD GRADE MATERIALS;
HEAVY WALL AND HIGH TENSILE MATERIALS REDUCE
MACHINE CAPACITY
--SOLID AND HIGH TENSILE MATERIALS REQUIRE
REINFORCED HEATING TOOLING
--SOLIDS AND HEAVY WALL PROFILES REQUIRE ROLLER
STYLE COUNTERBEND DIES
**6061 ALUMINUM MUST BE ANNEALED OR T4 CONDITION
EQUIPPED WITH
- PROGRAMMABLE MATERIAL SPRING BACK COMPENSATION
- REMOTE FOOT PEDAL FOR HANDS FREE OPERATION
- HEX MOUNT TOOLING SYSTEM FOR RAPID CHANGEOVER
- A40/P TWO AXIS POSITIONER
ACCURATELY CONTROLS LINEAR DISTANCE BETWEEN
BENDS AND ROTATIONAL PLANE OF BEND
PNEMATIC WORK HOLDING CHUCK SECURES MATERIAL
AND ROTATES 0-360 DEGREE
ACCOMMODATES MATERIAL LENGTHS UP TO 10'
