Description

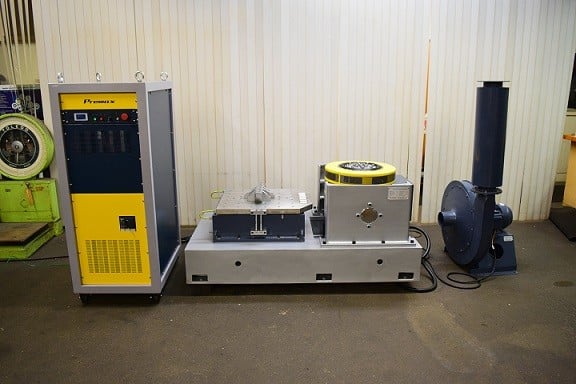

1.3 KIP ITS-600-ST Vibration Test System with Slip Table
(1) New Frank Bacon Model ITS-600-ST, 1,320 lbf (5.87 kN) Electrodynamic Vibration Test System with Power Amplifier and Slip Table.
ITS-600-ST Vibration System
SPECIFICATIONS:
Sine Force Rating: 5.87 kN (1,320 lbf)
Random Force Rating: 4.10 kN (921 lbf)
Shock Peak Force Rating: 11.76 kN (2,644 lbf)
Peak to Peak Displacement: 51 mm (2.00”)
Frequency Range (Hz): 5 – 3,000 Max
Armature Diameter: 240 mm (9.45”)
Armature Mass (lbs.): 6kg (13.2lbs.)
Sine Peak Acceleration (Bare Table): 981 m/s^2 (100 g)
Max Payload: 300 kg (661 lbs.)
Voltage Requirements(V, Hz, Ph): 480, 60, 3
Utility Requirements: 87 PSI Compressed Air
EQUIPPED WITH:
- 400mm x 400mm Magnesium Slip Table System with Base (Weight: 115 lbs.)
- 400mm x 400mm Magnesium Head Expander (Weight: 20 lbs.)
- ITS-H802A 8 kVA Air Cooled Power Amplifier
- ITS-W10 4 kW Blower (Hose Diameter: 8")
- Signal Input for Closed-Loop Control (Vibration Controller Required)
FOB Warren, MI
1 Year Parts and Labor Warranty
| #ITS-600-ST
DOWNLOAD SPEC SHEET
