Description

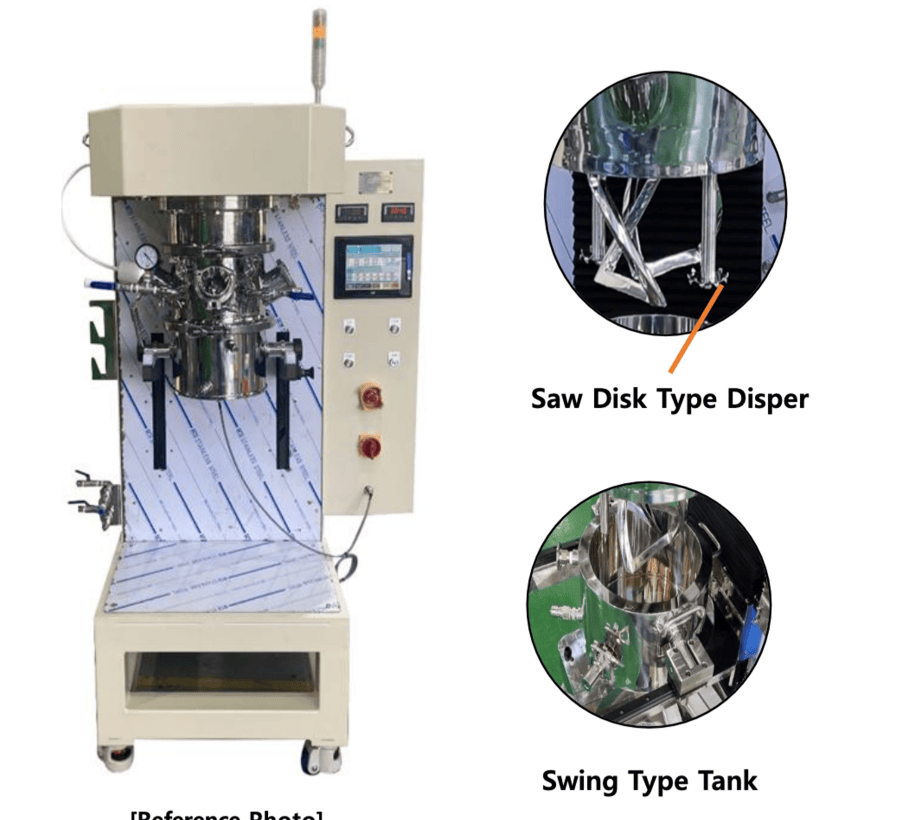

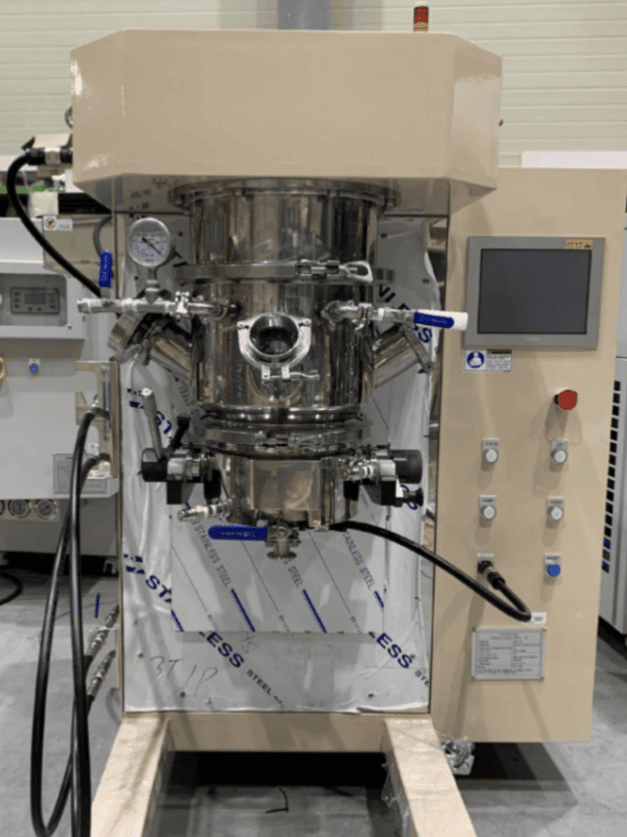

Make: Taesungind
Model: PD 5L
Year: 2025
Machine Location: Upon Request
Model: PD 5L
Year: 2025
Machine Location: Upon Request
Vessel Capacity (Full) 5.0 L
Working Capacity 3.0 L
Planetary Revolution Speed 0 – 50 rpm
Blade Rotation Speed 0 – 100 rpm
Disperser Speed Range 0 – 3500 rpm
Vessel Diameter × Height 261 × 125 mm
Chiller Capacity 3500 kcal/h (5-25°C)
Vacuum Pump Capacity 20 L/min
Total Power Requirement 5.5 kW (380V, 3ph, 60Hz)
Overall Dimensions 950 × 1100 × 1200 mm
Equipment Weight 900 kg
Material of Construction SUS 304 Stainless Steel
Output Battery Specs
Chemical Composition
LFP: Lithium Iron Phosphate
NCA: Nickel Cobalt Aluminum
NMC/NCM: Nickel Manganese Cobalt
Machine Requirements
Electrical Standards
UL: Underwriters Laboratories (U.S. safety certification)
Control Standards
Mitsubishi
