For Sale by Machinery International Corp
Surplus Record Dealer Since 1945
Location: Woodridge, CT
Contact John Conroy
Phone Number: 203...> Show Phone Number 203-484-0400
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS

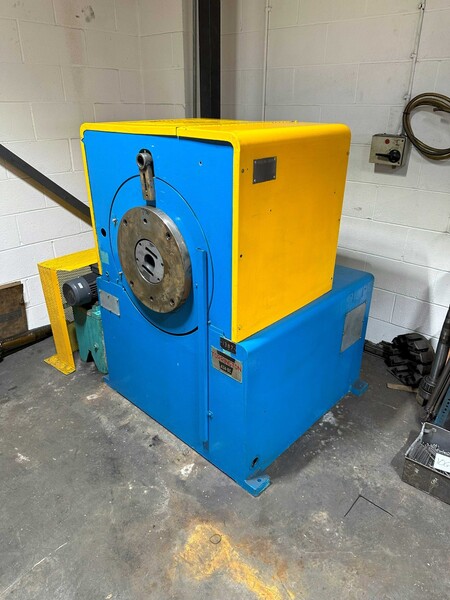

MANUFACTURER: THE TORRINGTON COMPANY
SERIAL No.: 7083
MODEL No.: 434DC
TYPE: 2 DIE
DIE CLOSING SWAGING MACHINE
CAPACITY
-TUBING: 1 3/4"
-ON STANDARD AN
TERMINALS: 9/16" CABLE
DIE SIZE
-WIDTH: 2 15/16"
-LENGTH: 4 1/2"
MAXIMUM TOTAL DIE OPENING: 5/8"
DIAMETER THRU WEDGE TUBE: 1 25/32"
RATED SPINDLE SPEED: 250
MOTOR: 7 1/2 HP, 575 VOLT, 8.5 AMPS, 3 PH., 60 HZ
FLOOR SPACE:
42 3/4" WIDE x 67 3/4" LONG (OVERALL)
42" LONG (BASE ONLY)
HEIGHT: 57"
WEIGHT: 6000 LBS. APPROXIMATELY
SWAGER IS COMPLETE WITH HYDRAULICS AND ELECTRICAL CONTROL BOX.
HYDRAULIC UNIT:
MANUFACTURER: RACINE HYDRAULICS
SERIAL No.: 943815
REF. No.: 12-6864
CAPACITY: 3000 PSI
RESERVOIR CAPACITY: 10 GALLONS
DRIVE MOTOR: 2 HP, 575 VOLT, 1725 RPM, 3 PH., 60 HZ, G.E.
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED IS EX WORKS AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
MANUFACTURER: THE TORRINGTON COMPANY
SERIAL No.: 7083
MODEL No.: 434DC
TYPE: 2 DIE
DIE CLOSING SWAGING MACHINE
CAPACITY
-TUBING: 1 3/4"
-ON STANDARD AN
TERMINALS: 9/16" CABLE
DIE SIZE
-WIDTH: 2 15/16"
-LENGTH: 4 1/2"
MAXIMUM TOTAL DIE OPENING: 5/8"
DIAMETER THRU WEDGE TUBE: 1 25/32"
RATED SPINDLE SPEED: 250
MOTOR: 7 1/2 HP, 575 VOLT, 8.5 AMPS, 3 PH., 60 HZ
FLOOR SPACE:
42 3/4" WIDE x 67 3/4" LONG (OVERALL)
42" LONG (BASE ONLY)
HEIGHT: 57"
WEIGHT: 6000 LBS. APPROXIMATELY
SWAGER IS COMPLETE WITH HYDRAULICS AND ELECTRICAL CONTROL BOX.
HYDRAULIC UNIT:
MANUFACTURER: RACINE HYDRAULICS
SERIAL No.: 943815
REF. No.: 12-6864
CAPACITY: 3000 PSI
RESERVOIR CAPACITY: 10 GALLONS
DRIVE MOTOR: 2 HP, 575 VOLT, 1725 RPM, 3 PH., 60 HZ, G.E.
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED IS EX WORKS AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
Get Your Price from Machinery International Corp!
