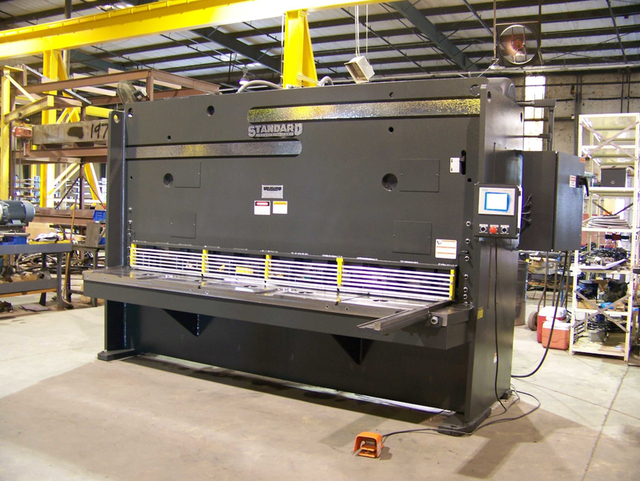

For Sale by Smith Machinery Co
Description
| CAPACITY TO MILD STEEL | 1/2 x 10 |
| CAPACITY TO STAINLESS STEEL | 3/8 x 10 |
| SHEARING TONS AVAILABLE | 90 |
| RAKE (IN INCHES PER FOOT) | .375 inches |
| SHIPPING HEIGHT | 110 inches |
| WIDTH | 150 inches |
| DEPTH | 85 inches |
| NUMBER OF HOLD DOWN CYLINDERS | 11 |
| BORE OF HOLD DOWN CYLINDERS | 3 inches |
| HOLD DOWN TONS OF FORCE | 99 |
| BLADE SIZE | 1 x 4 x 124 |
| WEIGHT | 30000 pounds |
| HORSEPOWER | 40** (**460/480 voltage only unless w/special quote) |
| STROKES PER MINUTE | Full Width Cut: 9, 12" Wide Cut: 24 |
| BELOW GRADE | no |
| RAM SPEED IN INCHES PER MINUTE-DOWN | 99 |
| RAM SPEED IN INCHES PER MINUTE-UP | 179 |
Equipped With
Equipped With
Features:
« All Components Readily Available from Your Local Suppliers
« Precision Guillotine Drive Providing the Best Shearing System Available
« Super heavy duty, 36" travel, precision ball screw backgauge with 500 IPM travel speed.
« Backgauge includes manual swing-away backstop, programmable X-retract and up to 200 programmable jobs via Cybelec control.
« Automatic blade positioning with Infinitely Variable Power Blade Gap Adjustment.
« Off the shelf Cybelec shear control with 200 job programmability
« 80,000 PSI Capacity rated
« 5 Year Parts Warranty
« 5 Year limited onsite labor warranty
« Lifetime telephone support at no charge
« Heavy duty ball transfers in table
« 4’ squaring arm with scale
« (2) Hand slots in the table
« (2) T-slots in shear table
« T-slot across front edge of shear table
OPTIONAL FEATURES:
August 2025 Model AS Shears Options --All AS500 Shears.pdf
DELIVERY:
10-12 WEEKS
