For Sale by Aleco Machinery Sales
Description

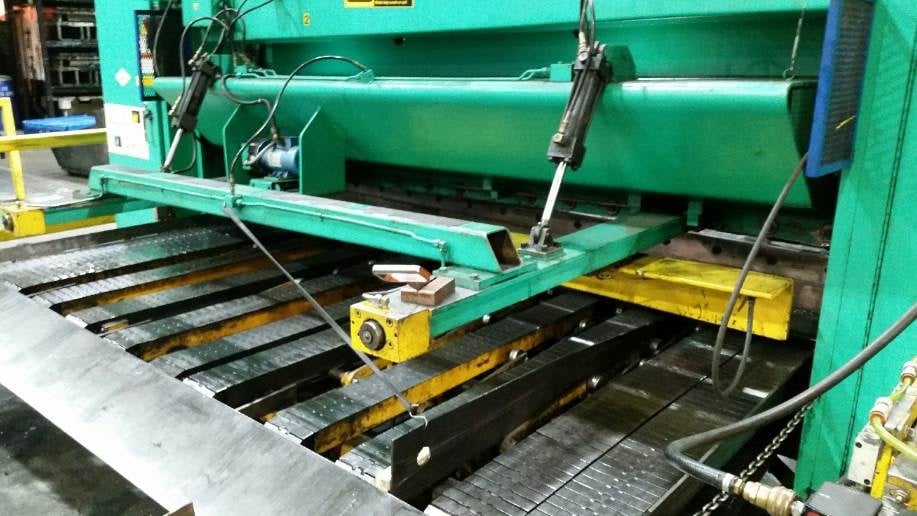

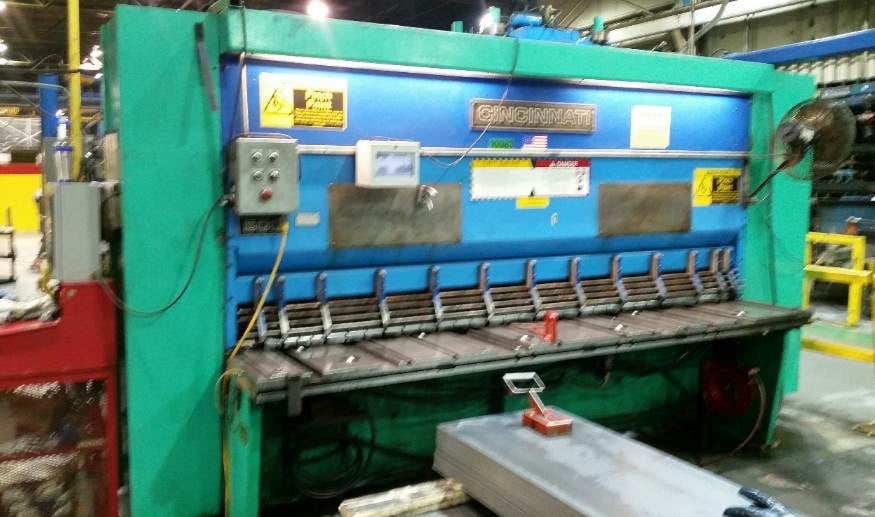

Pre Owned Cincinnati Model 5000 FSU Hydraulic Power Squaring Shear
New 2000
GENERAL SPECIFICATIONS
Capacity (Mild Steel) 1/2”
Maximum Shearing Length 122 3/4”
Back Gauge Range (Front Operated Power, High Speed) 48” @ 120 I.P.M
Number of Hold Downs 13
Distance Under Hold Downs 1”
Strokes Per Minute 19-53
Main Motor Horsepower 40
EQUIPPED WITH
Cincinnati 4CV 10 Heavy Duty Shear Conveyor
Programmable Control for Cut Length, Rake Angle, Blade Gap and Back Gauge Position
Power Blade Gap Adjustment
Electronically Adjustable Rake Angle
Hydraulic Back Gauge Pull Back
Automatic Central Lubrication
Electric Foot Switch
Area Lights
Light Beam Shearing Gauge
Approximate Overall Dimensions 174” L X 108” W X 99” H
Approximate Overall Weight 27000 Lbs
Get Your Price from Aleco Machinery Sales!
