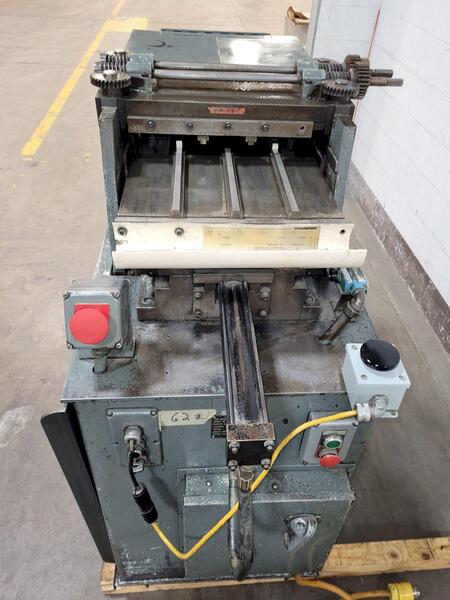

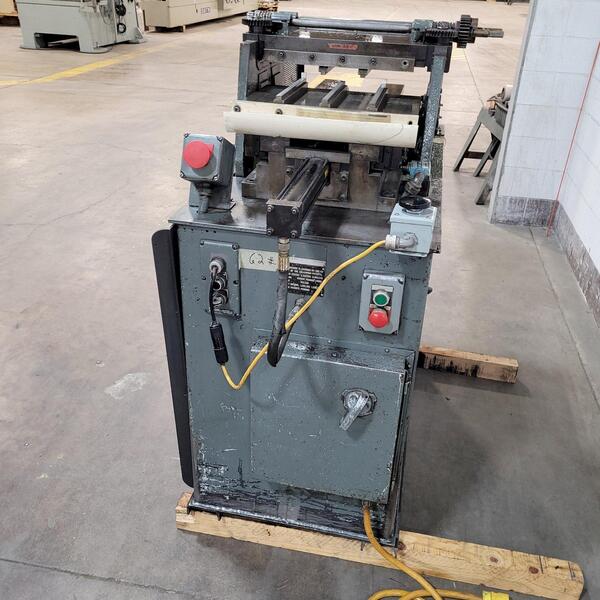

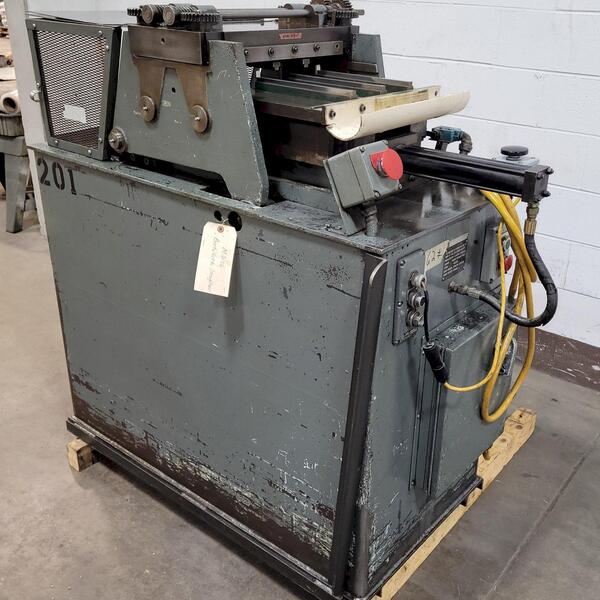

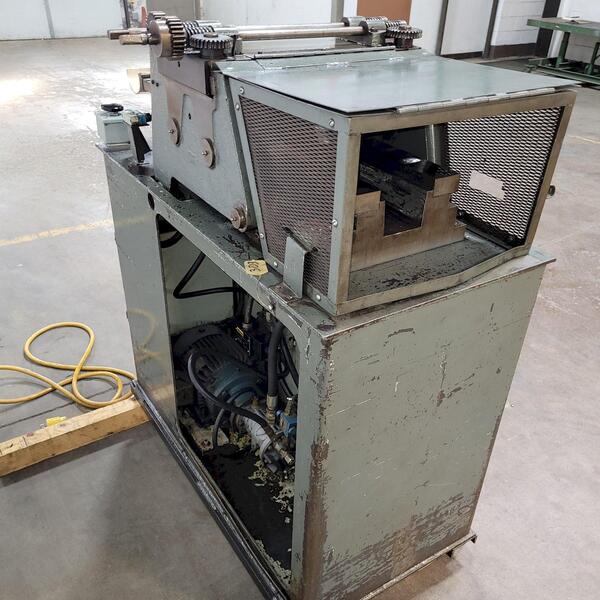

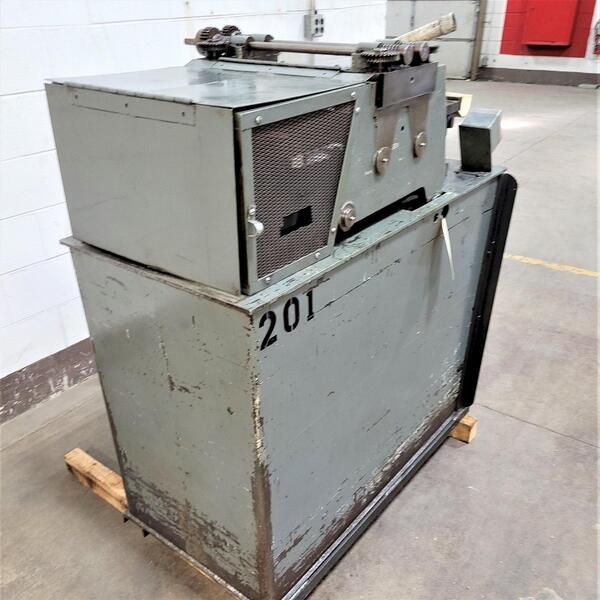

1/16" -1/2" Bertolette #300 Staight-O-Matic round parts straightener, 16" max length, 5 HP

SPECIFICATIONS

Maximum Length	16"
Work Diameter	1/16" - 1/2"
Production Rate	350 - 400 Parts/Hour
Number of Rails Upper	4
Number of Rails Lower	4

EQUIPPED WITH

EQUIPPED WITH:
Motor-Driven With 5 HP, 3 Phase, 60 Cycle AC Hydraulic Drive. Complete Electrical Controls. Controls for Forward, Reverse Hand, and Operation. Dual Palm Operator. Emergency Stop.

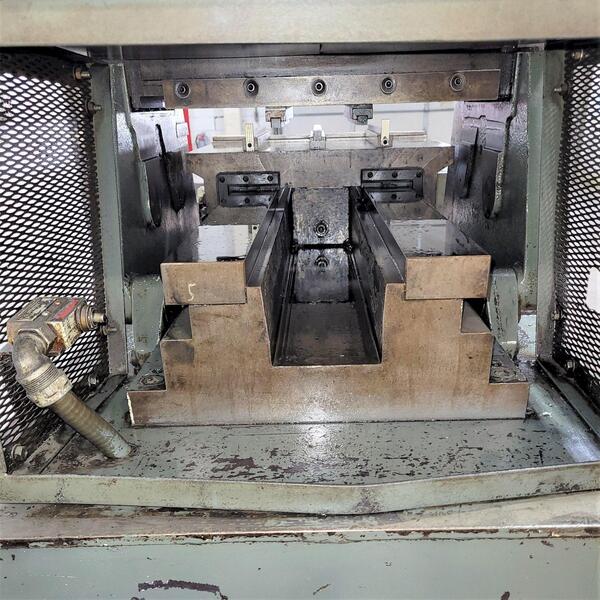

Parts To Be Straightened Are Placed Between the Upper and Lower Rails. When the Machine is Started, the Head Lowers an Adjustable Amount by Hydraulic Pressure, Over Bending the Part. At the Same Time the Lower Slide Moves Forward Rotating the Part, The Pressure Decreases to Zero by the End of the Stroke, and the Part is Straight. Parts may be Unloaded from the Back of the Slide or From the Front After the Slide has Returned to the Starting Position. The Number of Upper and Lower Rails and Their Position may be Varied According to the Characteristics of the Parts. Reciprocating Parts Fixture. Unload Pan.
