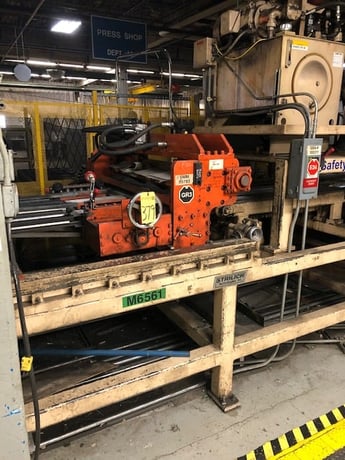

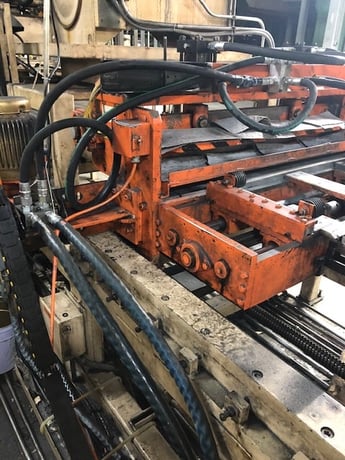

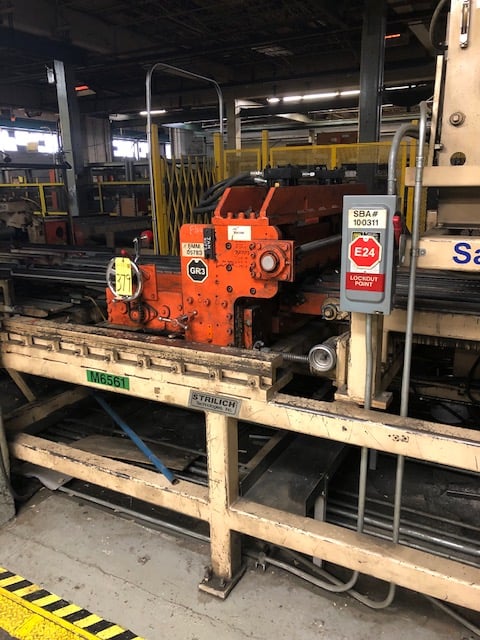

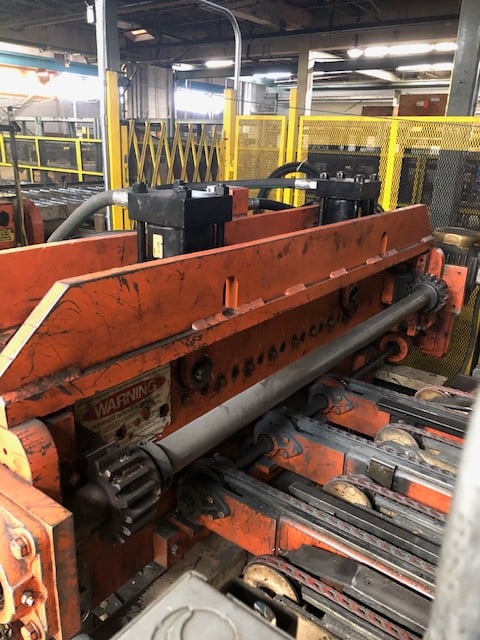

.036" x 4' Stirlich, hydraulic shear, 170 SPM, heavy duty hydraulic cylinders, 2000

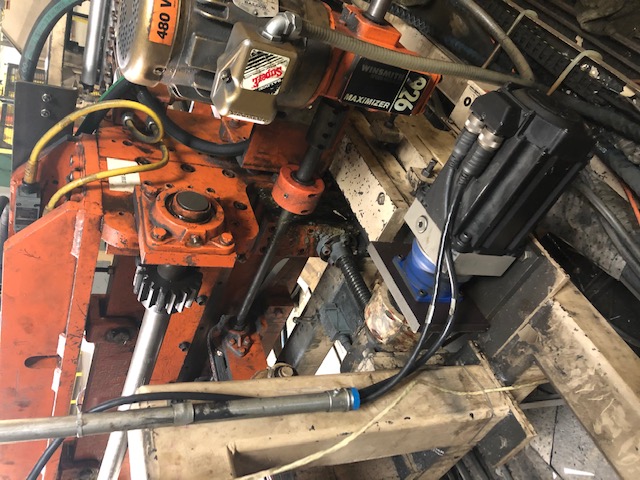

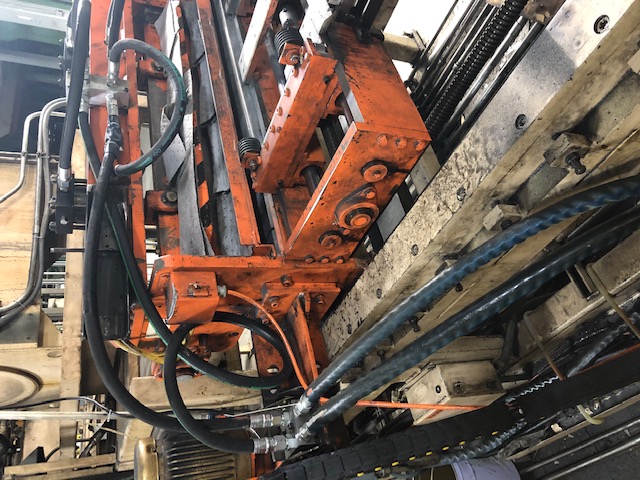

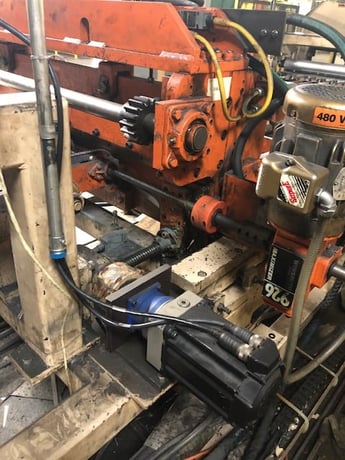

48" WIDE x .036 STIRLICH HYDRAULIC SHEAR SERIAL #: -Four (4) side high carbon - high chrome shear blades, upper bowtie, lower straight rake blade. -170 Stroke Per Minute - 40 Cuts Per Minute -Shear ram actuated through two (2) heavy duty hydraulic cylinders and rides on replaceable bronze wear plates. -Rack & Pinion Shear Ram Design. -Non-Marking Stripper Bar. -Dedicated hydraulic pumping unit for shear actuation. -Complete controls with start/stop/crop/inch buttons. -Shear head mounted on adjustable slide base adjusted through precision jack screws via AC gear motor to handle door lengths from 72" - 96.50". -Shear mounting includes squaring adjustment to allow cuts to be taken out of perpendicular to the lines center axis. This provides for slight compensation to be made to attain even diagonal measurements on panels produced from cambered material. -Two (2) hardened roller type entry guide assembly is mounted on shear and includes a +/- 1/2" lateral micro-adjustment with center indicating position pointer. This single point adjustment allows for slight off-center positioning of the incoming strip. It would be utilized in conjunction with the feeders entry guide to attain registry of cambered material within the press dies. -Guides are adjusted relative to centerline through left and right hand acme screw arrangement with a hand wheel. -Interleaving powered belt conveyor sections.
