Máquinas ranuradoras

SERIAL. AA-1265, MODEL. 1P, CAPACITY. 16 GAUGE, TONNAGE. 5, MAXIMUM NOTCH. 6" X 6", AREA OF TABLE. 12" X 18", STROKES PER MINUTE., FOOT PEDAL. YES, MOTOR. 1/2 HORSEPOWER.

Ruoff Notcher thats cherry with both sets of blades, 1. V Notch, 2. Dovetale, Punch and dies provide, Both sets of tooling included I 5 ° notch or a 3/ 32" slot, OVERALL DIMENSIONS:, 18"w x 12" d x 50" h, SHIPPING WEIGHT (crated):, 120 lbs., SPEED: From 20 feet per minute (240 punches per minute) up, ADJUSTMENTS: ...más

Troqueladora usada Amada CWS-250 Hidráulica 10 Calibre, modelo 1986. Características: Capacidad de 11 T, Espesor máximo de 0.128", Longitud de carrera de 0.94", 42 SPM, Dimensiones de corte de 9.84" x 9.84". Número de serie 25000842. Ideal para trabajos de metal de precisión., Especificaciones, Número de serie ...más

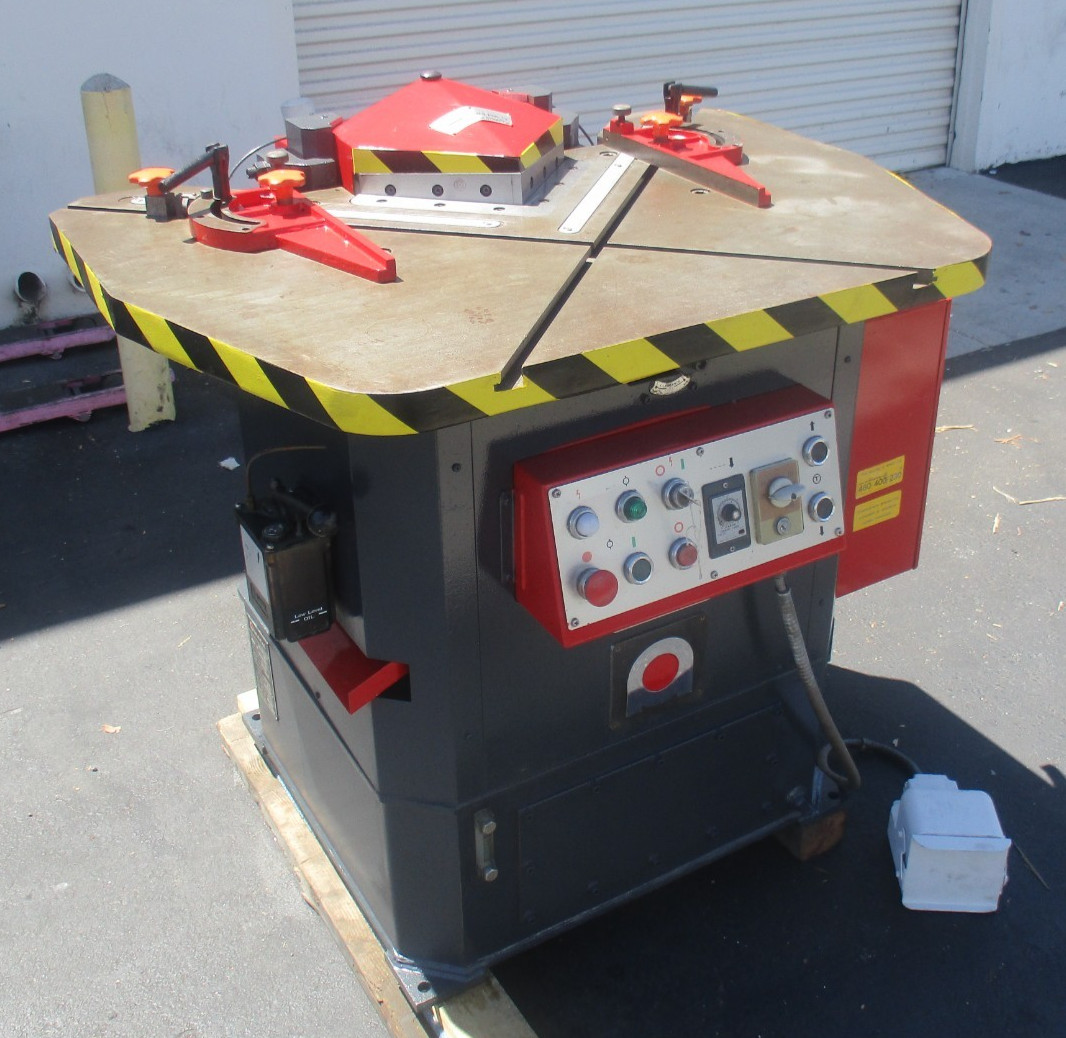

8" X 8" X 1/8" AMADA MODEL #CS-220 CORNER NOTCHER, N, PLEASE ASK FOR JIM, Max Thickness of Workpiece.125 inches, Max Thickness of Workpiece (gauge) 8, Stock Dimension 8.75 inches, Stock Dimension 8.75 inches, Dimensions 36 X 36 X 48, Weight 2600 LBS, MODEL. CS220, NOTCHING CAPACITY. 8-5/8" X 8-5/8", MAXIMUM PLATE ...más

The Amada CS-220 is a hydraulic corner notching machine designed for precise metalworking fabrication tasks. It s a rated capacity of 10 tons (23 tons maximum under alternative testing) and can handle a maximum cutting thickness of 1/8 inch (3.2 mm) or 10-gauge mild steel. The machine delivers a maximum notch size of ...más

SERIAL., MODEL. CS-220, MAXIMUM SIZE OF NOTCH. 8-5/8" x 8-5/8", MAXIMUM PLATE THICKNESS. 1/8", RATED CAPACITY. 10 TON, HEIGHT OF TABLE. 36-1/2", FOOT PEDAL. YES, MOTOR. 3 HP.

SERIAL. 564400, MODEL. CSW-220, CAPACITY. 1/8", NOTCHING CAPACITY. 8-5/8" X 8-5/8" MAXIMUM, COPING CAPACITY. 2" X 4", RAM STROKE. 7/8", STROKES PER MINUTE. 36, TABLE. 32" X 26", COPPER TABLE. 17" X 38", MOTOR. 3 HORSEPOWER.

Corner Notching Capacity 8-5/8" x 8-5/8" Corner Notching / Coping Capacity 2" x 4" Material Thickness Capacity 1/8" Corner Notching Table 32" x 36" Coping Table 17" x 38" Strokes Per MInute 36 Rated Capacity 10 Ton Height of Table 36-1/2" HP 3 s Foot Pedal Blade Guard One - Shot Lube System Rear Coper Cutting Shear ...más

SERIAL. 0360384033, MODEL. 10 NOTCHER, MAX NOTCH. 9" X 9", MILD STEEL CAPACITY. 10 GA, AUTO CUT TIGGERS. YES, ELECTRIC FOOT TRIP. YES, INCH/SINGLE CUT. YES, OVERALL TABLE DIM. 42" X 34".

Product Diacro 9″ x 9″ Hydraulic Notcher 10ga Capacity, Wired 230/460 3ph, Blades are in good shape, Has the table guides/stops., Video coming soon..

Scotchman 1 1/2 and 2″ Manual Pipe Notcher, Model AL2, Due to changing steel costs, subject to steel surcharge. Please contact us for current pricing., SKU # 3025002, Outer Tube Diameter 1-1/2″ and 2″ Maximum Wall Thickness.155″ Weight 33 lbs.

Scotchman 3/4″, 1″, 1 1/4″ Manual Pipe Notcher, Model AL1, Due to changing steel costs, subject to steel surcharge. Please contact us for current pricing., SKU # 3025001, Outer Tube Diameter 3/4″, 1″, 2″ Maximum Wall Thickness.155″ Weight 18 lbs.

Cortadora de muescas hidráulica AMERICOR de 10" X 10" X 5/32", Número de serie 254800, modelo 254, Cortadora de muescas hidráulica AMERICOR de 10" X 10" X 5/32", Número de serie 254800, modelo 254, EQUIPADO CON:, Pedal de pie - mesas de soporte dobles, Cilindros hidráulicos dobles, Corte de frente hacia atrás, Carrera ...más

Comaca Corner Notcher, 8" x 8", Asset # 12103, Length of Blades 7.87" x 7.87", Maximum Cutting Thickness 0.157", Strokes Per Minute 50, Motor 3 HP, Table Dimensions 27.5" x 23.6", Dimensions 28" x 29", Height 42", Weight 775 lbs., Preliminary - Subject to Verification.

TROQUELADORA HIDRÁULICA STRIPPIT DE ESQUINASMODELO NOTCH-RITE… S/N 09652981… NUEVO 1981 CAPACIDAD ACERO SUAVE ..................... 8-3/4" X 8-3/4" X 1/8" ....................″" X″" X″/16"MUESCA PROFUNDA EN V ACERO SUAVE ............. 6.125" EN 1/4" ............ 2.25" EN .187" VELOCIDAD ...más

Amada Hydraulic Power Notcher, Model CSHW-220, Maximum Thickness Capacity.236 in (6 mm), Corner Notching Capacity. 8.66 in x 8.66 in (220 mm x 220 mm), Edge Notching Capacity. 1.97 in x 3.94 in (50 mm x 100 mm), Speed - Corner Notch. 40 spm, Speed - Edge Notch. 42 spm, Maximum Tonnage. 27 Ton, Hydraulic Tank Capacity. ...más

Tonnage 20 Shearing Capacity 8 5/8" x 8 5/8" Strokes Per MInute 40 Dimensions ( W x D x H ) 43" x 54" x 62" Capacity 1/4" WEIGHT 2,865 LBS. s Work Guides One - Shot Lube System Work Guide Electric Foot Pedal.

Haco COMBI 220/6 Corner Notcher - 8" x 8" x 1/4", Type: COMBI 220/6, S#: 800297, Date Mfg.: 1997, Capacity: 8" x 8" x 1/4", Table: 37" x 41", Work height: 37", Internal depth stop, Has bending/punching/brake 14" attachment, (2) Mechanical sheet metal hold downs, Auto blade gap adjustment, Auto lube system, Strokes pre ...más

¼” X 8” Angle Notcher with Foot Pedal Control, Safety Finger Guards and (2) Quick Change Gauges, Worktable Size: 17-½” X 36”, Blade Length: 8”, Max Cutting Thickness (Mild Steel): ¼”, Max Cutting Thickness (Stainless Steel): 10 ga, Main Motor: 5.3 HP, Electrics: ...más

8.6″ x 8.6″ x1/4″ capacity230 / 460, 3ph Voltage6.5hp motor, Adjustable StopsHold DownsSharpened blades.

Modelo # CSH-220, Capacidad: 8-5/8"x 8-5/8" x ¼", Motor h.p.: 5, Voltaje : 230/460, Año: 1981, Peso aprox.: 3300 lbs, Aprox dim: 54" x 43" x 67" alt., Equipado con:, Topes ajustables, Interruptor de pie eléctrico.

ESPECIFICACIONES GENERALES:, MARCA..................... AMADA, MODELO.................... CSH-220, NÚMERO DE SERIE............ 550385, AÑO DE FABRICACIÓN.......... 1979, CAPACIDAD (TONELAJE)........ 23 TONS, CAPACIDAD (ESPESOR)......... 1/4", CAPACIDAD (LONGITUD)........ 8 5/8" X 8 5/8", CARRERA DEL ÉMBOLO.......... 7/8", TANQUE DE ACEITE............ 16 GAL, MOTOR....................... 3.7 KW, EQUIPADO CON:, CARRERA CONTINUA DE VELOCIDAD VARIABLE, PEDAL, ESPECIFICACIONES SUJETAS A VERIFICACIÓN.
