Timesavers PUMA Single Head Wet Sander, Model PUMA, S# 31587, Date Mfg. 03-09, Table up/down w/ digital read out, New feed belt, Paper filter system, Dryer blower system, Squeegee rollers on exit, Safety trip bar across front, Electric brake, Drive motor 30hp 460v 3ph.

Denison 35 Ton Hydraulic Multipress, Capacity: 35 Ton, 24"L x 34" T slotted die shoes, Guided ram, Safety latch on die shoe, Updated electrics & palm button controls, Single/Jog, Adjustable stroke via micro switches, Heat exchanger, Updated valves & motor, Motor: 15hp 208-230/460v 3ph (wired 460v), Video --> ...more

Cincinnati Milacron DR Centerless Grinder - 0.062" to 3" Capacity, Model: DR, S#: 350300081-0014, Date Mfg.: Feb. 1982, Workpiece capacity: 0.062" to 3", Max grind wheel size: 24" x 8", Max regulating wheel: 13" x 8", Regulating wheel speeds: 11 to 300 rpm, Hydraulic truing, Work rest, Auto lube system, Adjustable ...more

Campbell 930 CBN 5 Axis CNC Form Grinder, Model: 930V-30/24/24, S#: 90998, Reconditioned spindle, GE-Fanuc control series 15-M, Auto tool changer, Quick change diamond grinding wheel, Aluminum platform w/ rails & 2 enter/exit egress areas, Honing oil coolant system, Smog Hog mist collector, Fire suppression ...more

Jtekt GL4I-100SWITCH 12.6" x 39.4" CNC Universal OD Grinder, Model GL4I-100SWITCH, S# RG 0694, Date Mfg. 01/2023, Swing over table 12.6", Distance between centers 39.4", Max load between centers 330 lbs., Max grinding Dia. 11.8", Wheel surface speed 8,500 SFPM, 45° Swivel on wheelhead, CNC Touchscreen control ...more

Mazak Integrex 200 SY CNC Turning Center - 5 Axis Machine, Model Integrex 200 SY, S# 146121, Date Mfg. 12/1999, Spindle 10-3/8" 3 Jaw chuck, Sub spindle 6.5" 3 Jaw chuck, Max turning Dia. 21.26", Max turning length 30.08", Swing over bed 21.26", Swing over cross slide 20.47", X/Y/Z Travel 17"/±2.5"/40", B Axis ...more

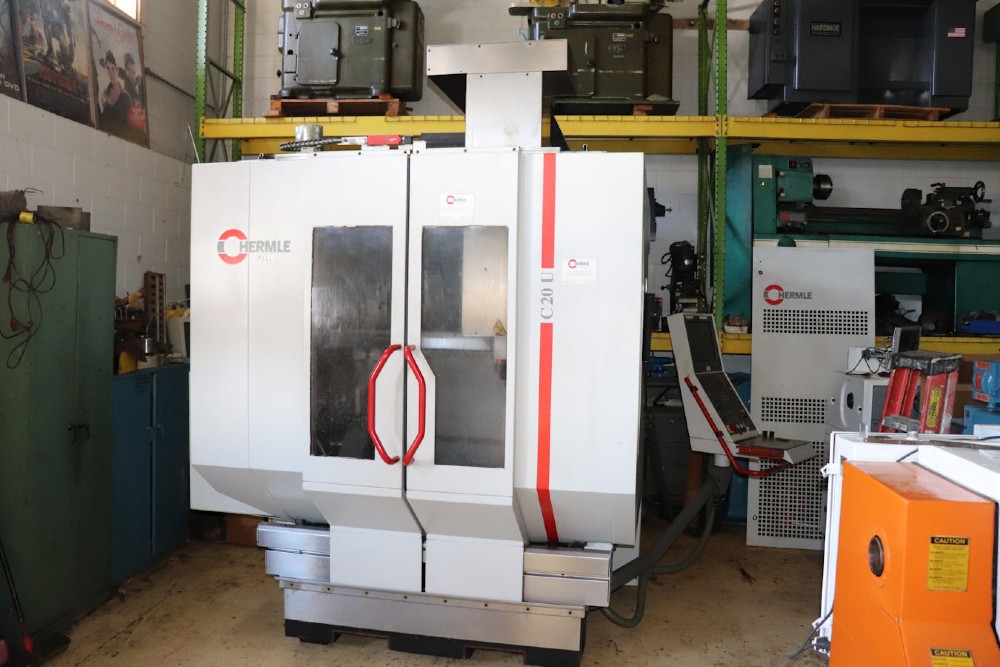

Hermle C 20 U CNC Universal 5 Axis Machining Center, Model: C 20 U, S#: 18164, Date Mfg.: 2007, Travel X/Y/Z: 23.6"/17.7"/17.7", Max table load: 661 lbs., Spindle RPM: 18,000, #ATC 30, Taper HSK-A63, Renishaw touch probe, Swivell NC rotary table, Heidenhain iTNC 530 control, iTNC hand held control, Blum tool breakage ...more

Global Finishing Solutions U3646B1 Heated Conveyor Type Parts Washer, Model: U3646B1, S#: 11.87.20.1, Date Mfg.: 08/2011, 480v 3ph.

Herman Schwabe 25 Ton Down Acting Die Cutting Press, Model G, S# 60161, 25 Ton capacity, 100" x 34" Bed, Ram size 34" x 28", 6" stroke on ram, Adjustable bed height 6" approx. and is powered, Head left and right is powered, 5hp 220/440v 3ph wired 220 volt.

American Pacemaker 16" x 102", Model: 16X102, S#: 73110-52, Swing: 16" (19" actual swing), Between centers: 102", 18 Spindle speeds: 25 to 1,500 rpm, 15" New Britain 4 jaw chuck, 12" 3 Jaw chuck, Thru hole: 1.75", 48 Threading ranges: 1.5 to 92, Thread dial on carriage, Taper attachment, Steady rest w/ 6.25" thru ...more

Strippit FC 1250 MH 30 Ton Turret Punch, Model: FC 1250 MH, Cat. No.: 122290-102, Machine S#: 1013021795, Control S#: 2100014, Capacity: 30 Ton, 42 Station turret, Roller ball table, Max material thickness: 0.375" (mild steel), Max hole size: 1-5/8" Dia., Throat: 50", Table travels: 50" x 80", Max sheet size with ...more

W.F. Wells F-15-2 Horizontal Band Saw - 15"H x 17"W, Model: F-15-2, S#: 781153, Date Mfg.: 03/1978, Capacity: 15"H x 17"W, Variable speed blade: 60 to 300 fpm, Ball bearing blade guides, Clamp vise: 11.5"L x 8"H, Back support vise: 14.75"L x 8"H, 28.5"L, Adjustable work stop rod, Hydraulic up/down, Front chip coolant ...more

Baileigh BP-6788 67 Ton x 8' Press Brake, Model BP-6788, S# 3728, Date Mfg. 06/2012, 67 Ton x 8' capacity, 11.81" From table to ram, Approach speed 3.14"/sec, Bending speed 0.275"/sec, Min. return speed 2.36"/sec, 35 Gallon reservoir, Manual/Jog/Auto control, Front operated back gauge, Foot pedal control, 220v 3ph ...more

Hoston 66 Ton Dual Station Iron Worker "New", Model: HIW-60, Capacity: 66 Ton, Ram Stroke: 3.15", Throat depth: 11.81", Shear angle: 7, Flat shearing capacity: 0.6299" x 9.843" & 0.315" x 15.75", Bar shearing capacity: Square bar 1.575" - Round bar 1.772" - C-Channel 4.961" - I Beam 4.961", Angle shearing: 90 ...more

Haco COMBI 220/6 Corner Notcher - 8" x 8" x 1/4", Type: COMBI 220/6, S#: 800297, Date Mfg.: 1997, Capacity: 8" x 8" x 1/4", Table: 37" x 41", Work height: 37", Internal depth stop, Has bending/punching/brake 14" attachment, (2) Mechanical sheet metal hold downs, Auto blade gap adjustment, Auto lube system, Strokes pre ...more

Starrett Sigma VB 360 15" Optical Comparator, Model: VB 360, S#: 0363, 15" Screen, 15.5" x 9" Motorized table w/ 10" x 6" port window, 3 Lens turret, DRO, 115v 1ph 50/60hz, Overall Dim.: 30"L x 24"W x 42"H, Est. Wt.: 400 lbs.

Whitney Jensen Shear - 6' x 1/8" Steel - 1/4" Aluminum, S#: 1272180767, Capacity: 6' x 1/8" steel - 1/4" aluminum, Controls: start/stop/single/repeat, Foot pedal control, Heavy steel frame construction, On 6"H Support beams, Oil cup lube system, Overall Dim.: 8' 1"L x 3' 8"W x 8' 7"H, Est. Wt.: ...more

Koike Aronson WRD30 Turning Rolls - 30,000 lbs., Model: WRD30, S#: 03132 & 03133, Capacity: 30,000 lbs., Wheel Dia.: 20", Wheel spacing: 25" to 36", Pedant control w/ 3 positions, 460v 3ph, FL Amps 35.

Acme 100kva Spot Welder, Type PT1S-48-100, S# 14584, Press type, Sec amps 22,500, 230v 1ph, 48" x 8" Throat, Updated solid state controls by spot weld Inc., 7 Power settings.

Carlton 0A 3' x 9" Radial Arm Drill, Model: 0A, S#: 0A962, Arm: 3', Column: 11", Spindle taper: No. 4, Spindle travel: 8 ", 9 Spindle speeds: 75 to 1,070 rpm, 3 Down feeds: 20/25/11, Tilting work table 20.5" x 20.5" x 24"H, Column motor: 1hp, Spindle motor: 3hp 220/440v 3ph, Overall Dim.: 6'L x 3' 10"W ...more

Harig Super 612 6" x 12" Surface Grinder, Model: Super 612, S#: 3546, 6" x 12" Walker wide line magnetic chuck, Motor: 1.5hp 220/440v 3ph.

Arter A3-12 Rotary Surface Grinder - 12", Model: A3-12, S#: 1011, Capacity: 12", 12" Electro magnetic chuck, 12" x 3/4" Grind wheel, 4 Table speeds: 30/58/106/203 rpm, Overall Dim.: 7' 4"L x 40"W x 5'H, Est. Wt.: 2,200 lbs., Video --> https://youtu.be/OVGLLR49q9g.

Clausing Colchester Triumph-VS Gap Bed Lathe 16" x 54", Model: Triumph-VS, S#: VT1152, Date Mfg. 1998, Swing: 16" (26" in gap), Distance between centers: 54", Thru hole: 2.25", Spindle mount: D1-6, Spindle speeds: Variable 15 to 2,500 rpm, Heidenhain DRO, Threading: Inch/mm, Thread dial on carriage, Sliding safety ...more

Central Eng.\Hannifin 100 Ton 4 Post Die Trim Press, Model: M518-00, S#: 0194, Date Mfg.: 04-98, Manufactured by Goshen Rubber Central Engineering, Designed by Hannifin, Capacity: 100 Ton, 4 Post down acting, Bed area: 32" x 32", Platen size: 40"W x 21.5" between posts, Shut height & stroke: 18", 5" Dia. Hydraulic ...more

PHI 420 Type II 1/2" Tube Bender, Model: 420, Type: II, S#: 00-6-007, Date Mfg. June 2000, Bending capacity: Low range 3/16" OD - High range 1/2" OD, Radius center line: 8" Max, Length over mandrel to tube stop 120" max, Degree of bend: 195 max, Die block mounting post 1" OD, Drive key width 3/8", Carriage buck chuck ...more

PHI 3CPV 3" End Finisher, Model: 3CPV, S#: 3CPV-104, Capacity: 3", Controls: Dial in speed - Start/Stop, Air operated clamp system, Storage in base, Motor: 1hp 230/460v 3ph (wired 230v), Overall Dim.: 49"L x 4'W x 4' 7"H (on pallet), Est. Wt.: 1,200 lbs.

Diacro No. 18 Powered Turret Punch, Model: No. 18, S#: BF-1025, Capacity: 7.5 Ton x 2" Dia. (in mild steel), Throat: 18", Stroke: 5/8", Clearance between dies: 23/64", Hand wheel chain operated turret, Hand wheel adjustable in/out/cross material stops, 12"W x 3'L Support tables, On stand w/ casters, Grease fitting ...more

Sonics XPE 2200 Ultrasonic Welder, Model: XPE 2200S-5A, S#: 9576CM, Date Mfg. 2020, Setup for slot cut in nylon straps, Watts: 2,200, Frequency: 20kHz, Air required, Voltage: 230v 15 amps 1ph, Welder Dim.: 14"W x 25"L x 48"H, Est. Wt.: 185 lbs., Video Link --> https://youtu.be/iX-3mQqN2EY.

Grob NS18 18" Vertical Saw, Model: NS18, S#: 8649, Table: 24" x 24" w/ Tilt, Throat: 18", Max work height: 8.75", Blade: 1/4" x 11' 10"L installed, Max blade: 1/2", Blade speeds: 50 to 2,030 FPM, Blade welder/grinder, Motor: 3/4hp 230/460v 3ph, Saw Dim. 38"W x 42"L x 7'H, Est. Wt.: 850 lbs.

Aronson GE 45 Geared Elevation 4,500 lbs. Welding Positioner, Model: GE 45, Capacity: 4,500 lbs., Table: 4', Power tilt, Variable speed rotation, Pendant control, Powered elevation, Elevation motor: 3hp 220/440v 3ph, Tilt motor: 2hp 220/440v 3ph, Rotation motor: 1.5hp220/440v 3ph, Machine wired 230v 3ph, Overall ...more

Fanuc Robocut Alpha-1B EDM Machine - For Parts or Repair, Model: ROBOCUT ALPHA-1B, Type: A04B-0304-B001 #US, No.: P 9621B452, Date Mfg.: 02-1996, Full load current: 40A(220v), Input KVA: 15, Amp rating largest motor: 11.7A(220v), Control swing arm was removed & wiring to control was cut, This machine is being sold ...more
