Alternative Machine Tool Inc
Dousman, WI 53118
Silver Level Dealer
Surplus Record Dealer Since 2001
Contact
About
Alternative Machine Tool, Inc., specialist in Tool Room - EDM Machinery, newand used.
Products & Services
- CNC Machinery
- Drills
- Electrical Discharge Machines Ram/Wire
- Grinders, Cylindrical & Internal
- Grinders, Surface
- Lathes
- Milling Machinery
- Saws
Associations & Affiliations
22 listings in 11 categories
Bed and Knee Milling Machines - Vertical
4 Results
Acer #Ultima-3VK, vertical mill, 10" x50"tbl., 3 HP, 32" X, 15" Y, 5" Z, 60-4200 RPM, R-8, Newall 2-Axis digital read out, servo X-Axis power feed, Maxi Torque Rite power draw bar
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Acer
Model: ULTIMA-3VK
Table Size:10.0” x 50.0” X Axis Travel: 32.0” Y Axis Travel: 15.0” Quill Travel: 5.0” Spindle Horsepower: 3.0 Hp Spindle RPM (Vari-Speed): 60 – 4,200 RPM Spindle Taper: R-8 Voltage: 220/3/60 Machine Weight: 3,100 lbs.
Clausing #450-EVS-08, vertical mill, 10" x54" table, 3 HP, 34.6" X, 16" Y, 16" knee, 5" quill, 50-5000 RPM, R-8, 220/460 V., 3 Ph. (2 available)
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Clausing
Model: 450-EVS-08
Table Size: 10.0” x 54.0” X- Axis Travel: 34.6” Y-Axis Travel: 16.0” Knee Travel: 16.0” Quill Travel: 5.0” Spindle Horsepower: 3 Hp Spindle RPM: 50-5,000 RPM Spindle Taper: R8 Machine Weight: 2750 lbs. Floor Space Required: 74” x 67” x 86.6” Voltage: 220/460/3/60.
Clausing #450-EVS-08, vertical mill, 10" x54" table, 3 HP, 34.6" X, 16" Y, 16" knee, 5" quill, 50-5000 RPM, R-8, 220/460 V., 3 Ph. (2 available)
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Clausing
Model: 450-EVS-08
Table Size: 10.0” x 54.0” X- Axis Travel: 34.6” Y-Axis Travel: 16.0” Knee Travel: 16.0” Quill Travel: 5.0” Spindle Horsepower: 3 Hp Spindle RPM: 50-5,000 RPM Spindle Taper: R8 Machine Weight: 2750 lbs. Floor Space Required: 74” x 67” x 86.6” Voltage: 220/460/3/60.
Republic-Lagun #FT-1, vertical mill, 9" x42" table, 2 HP, 28" X, 16" Y, 5" quill, 55-2940 RPM, R-8, 220/440 V., 3 Ph.
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Republic-Lagun
Model: FT-1
Table Size: 9.0” x 42.0” X Axis Travel: 28.0” Y Axis Travel: 16.0” Quill Travel: 5.0” Spindle Horsepower: 2 Hp Spindle RPM (Vari-Speed): 55 – 2,940 RPM Spindle Taper: R8 Voltage: 220/440/3/60 Machine Weight: 3,200 lbs.
CNC Vertical Bed Mills
2 Results
Clausing Kondia #FV1, CNC vertical mill, 9" x48" table, 3 HP, 8.5" X, 14.5" Y, 5" quill, 60-4200 RPM, R-8, Acu-Rite MillPwr 3-Axis Control
Category: CNC Vertical Bed Mills
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Kondia
Model: FV1
Table Size: 9.0” x 48.0” X Axis Travel: 8.5” Y Axis Travel: 14.5” Quill Travel: 5.0” Spindle Horsepower: 3 Hp Spindle RPM (Vari-Speed): 60-4200 RPM Spindle Taper: R-8 CNC Control Model: 3 Axis Acu-Rite Millpower Machine Weight: 3,400 lbs.

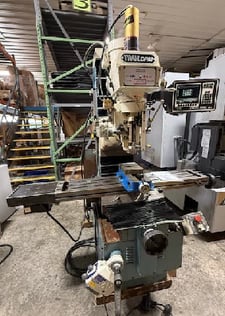

Trak #TRM-DPM, CNC vertical mill, 10" x50" tbl., 31" X, 17" Y, 5" Z, 60-4200 RPM, #40, 2-Axis, MX 2 Control, Kurt D675 vise, power draw bar
Category: CNC Vertical Bed Mills
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Trak
Model: TRM-DPM
Table Size: 10.0” x 50.0” X Axis Travel: 31.0” Y Axis Travel: 17.0” Back Slide Travel: 23.5” Quill Travel: 5.0” Spindle Horsepower: 3.0” Spindle RPM (Vari-Speed): 60 – 4,200 RPM Spindle Taper: NST 40 CNC Control: MX 2 Number of CNC Axis: 2 Axis CNC Machine Weight: 3,800 ...more
Die Tryout and Spotting Presses
1 Result
100 Ton, Sanki #SDP1310-100TD, hydraulic die spotting press, 51" x39" platen, 38.4" stroke, 41.2" DL, front & rear light safety curtains, one shot way lube
Category: Die Tryout and Spotting Presses
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Model: SDP1310-100TD
Platen Size: 51.0” x 39.0” Pressing Capacity: 100 Ton Maximum Mold Weight: 12,000 lbs Upper Mold Half Maximum Weight: 6,000 lbs Stroke w/ Bolsters Installed: 38.4” Daylight w/ Bolsters Installed: 41.2” Hyd. Motor Horsepower: 10 Hp Mold Top Half Inversion: +/- 180° Voltage: 480/3/60 Floor ...more
17" x 80" South Bend #Turn-nado, engine lathe, 12" 3-jaw chuck, 12" 4-jaw chuck, 2.562" bore, D1-8, Steady Rest
Category: Engine Lathes
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: South Bend
Model: TURN-NADO
Swing Over Bed Ways: 17.125” Swing Over Cross Slide: 10.5” Swing in Gap: N/A Distance Between Centers: 80.0” Spindle Bore: 2.562” Spindle Nose: D1-8 Spindle Horsepower: 7.5/3.75 Spindle Speed: (9) 60 -1,580 RPM Tailstock Taper: 4MT Voltage: 460/3/60 Machine Weight: 3,800 lbs.
27" x 118.1" Romi #C680, CNC 2-Axis flat bed lathe, 20" 3-jaw chuck, 4.01" bore, A2-11, Siemens 802D, Dorian V60TC tool post, tailstock, 2013
Category: Engine Lathes
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Romi
Model: C680
Year: 2013
Swing Over Bed Ways: 27” (680mm) Swing Over Cross Slide: 17” (430mm) Distance Between Centers: 118.11” (3,000mm) Spindle Bore: 4.01” (104mm) Spindle Nose: A2-11 Spindle Horsepower: 40 Hp Spindle Speed dual speed ranges: 1 – 252rpm, 1 - 1,000 RPM Tailstock Quill Taper: 5MT Control: Siemens ...more
Longitudinal Seam Welders
1 Result
8' Bancroft Miller #400, Weld-Along, 400 tig, 7"-32" dia. capacity, 0-100 IPM, 4" slide adjustment
Category: Longitudinal Seam Welders
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Bancroft Miller
Model: 400
Maximum Weld Length: 96.0” Maximum Clamping Length: 105.0” Minimum Diameter Capacity: 7.0” Maximum Diameter Capacity: 32.0” Variable Carriage Speed: 0 -100 IPM Horizontal Slide Adjustment: 4” Floor Space Required: 156” x 56” x 84”.
Ram (Die Sinker) EDM
3 Results
Mitsubishi #EA12VM, CNC ram type Electrical Discharge Machine, 15.75" X, 11.81" Y, 11.81" Z, 33.5" x 23.5" x 13.7" tank
Category: Ram (Die Sinker) EDM
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Mitsubishi
Model: EA12VM
Work Tank Internal Dimensions: 33.5” x 23.5” x 13.7” Table Size: 27.5” x 19.6” X Axis Travel: 15.75” Y Axis Travel: 11.81” Z Axis Travel: 11.81” C Axis Increment Command:.001° Automatic Electrode Changer Capacity: 32 Electrodes Dielectric Fluid Capacity: 90 Gallons ...more
Mitsubishi #EX22, CNC ram type Electrical Discharge Machine, 37" x26" x13.5" tank, 20" X, 16" Y, 13.8" Z, chiller, 1997
Category: Ram (Die Sinker) EDM
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Mitsubishi
Model: EX22
Year: 1997
Maximum Workpiece Size: 37” x 26” x 13.5” Table Dimensions: 30.0” x 22.0” X Axis Travel: 20.0” Y Axis Travel: 16.0” Z Axis Travel: 13.8” Maximum Workpiece Weight: 2,200 lbs. Machine Floor Space Required: 79” x 84” x 93” Machine Weight: 11,000 lbs.
Mitsubishi #EX22, CNC ram type Electrical Discharge Machine, 20" X, 16" Y, 13.8" Z, FP60L power supply, chiller, 1999
Category: Ram (Die Sinker) EDM
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Mitsubishi
Model: EX22
Year: 1999
Maximum Workpiece Size: 37” x 26” x 13.5” Table Dimensions: 30.0” x 22.0” X Axis Travel: 20.0” Y Axis Travel: 16.0” Z Axis Travel: 13.8” Maximum Workpiece Weight: 2,200 lbs. Machine Floor Space Required: 79” x 84” x 93” Machine Weight: 11,000 lbs.
Reciprocating Surface Grinders - Horizontal Spindle
4 Results
6" x 12" Mitsui #200MH, horizontal surface grinder, 8" x .5" x 1.25" wheel, 1.3 HP, 3450 RPM
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Mitsui
Model: 200MH
Maximum Grinding Chuck Size: 6.0” x 12.0” Maximum Distance under Wheel to Table: 11.0” Table Load Capacity w/Chuck: 150 lbs. Maximum Table Travel: 13.0” Maximum Cross Travel: 6.8” Grinding Wheel Size: 8.0” x ½” x 1¼” Spindle Horsepower: 1.3 Hp Spindle ...more

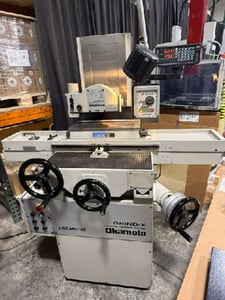

6" x 18" Okamoto #Grind-X-Linear-618B, 8" x 1" x 1.25" wheel, 2 HP, 3450 RPM, Acu-Rite digital read out
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Okamoto
Model: GRIND-X-LINEAR-618B
Maximum Grinding Chuck Size: 6.0” x 18.0” Maximum Distance under Wheel to Chuck: 14.27” Table Load Capacity w/Chuck: 220 lbs. Maximum Table Travel: 20.87” Maximum Cross Travel: 8.27” Grinding Wheel Size: 8.0” x 1” x 1¼” Spindle Horsepower: 2.0 Hp Spindle Speed: ...more
6" x 18" Okamoto #Grind-X-Linear-618B, 8" x 1" x 1.25" wheel, 2 HP, 3450 RPM, Acu-Rite digital read out
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Okamoto
Model: GRIND-X-LINEAR-618B
Maximum Grinding Chuck Size: 6.0” x 18.0” Maximum Distance under Wheel to Chuck: 14.27” Table Load Capacity w/Chuck: 220 lbs. Maximum Table Travel: 20.87” Maximum Cross Travel: 8.27” Grinding Wheel Size: 8.0” x 1” x 1¼” Spindle Horsepower: 2.0 Hp Spindle Speed: ...more
12" x 24" Supertec #SG-3A1224, automatic hydraulic surface grinder, 14" x 1.5" x 5" wheel, automatic incremental downfeed, Sony 1-Axis digital read out
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Supertec
Model: SG-3A1224
Maximum Grinding Chuck Size: 12.0” x 24.0” Maximum Distance under Wheel to Top of Chuck: 8.7” Table Load Capacity w/Chuck: 1,100 lbs. Maximum Table Travel: 28.0” Maximum Cross Travel: 13.0” Automatic Downfeed Increment:.0001’ -.010” Grinding Wheel Size: 14.0” X ...more
16" Baileigh #DP-1000VS, variable speed drill press, 6" travel spindle, 2 HP, 150-3000 RPM, #3MT, 14.75" x 11.375" table
Category: Single Spindle Drill Presses
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Baileigh
Model: DP-1000VS
Maximum Drilling Capacity in Mild Steel: 1” Table Size: 14.75” x 11.375” Spindle Travel: 6.0” Spindle Horsepower: 2.0 Hp Spindle Speeds: 150 – 3,000 RPM Spindle Nose to Table (Max): 26.5” Spindle Taper: 3MT Voltage: 230/1/60 ONLY Machine Weight: 542 lbs.
13"/18" x 36" Clausing #Colchester-8013, Gap Bed Engine Lathe, 3 HP, 1800 RPM, 220 V.
Category: Sliding & Gap Bed Lathes
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Clausing
Model: COLCHESTER-8013
Swing Over Bed Ways: 13.0” Swing in Gap: 18.0” Swing Over Cross Slide: 8.0” Distance Between Centers: 36.0” Spindle Bore: 1.562” Spindle Nose: L-0 Tapered Spindle Horsepower: 3/1.5 Hp Spindle Speed: (16) 40 – 1,800 RPM Tailstock Taper: 3 MT Voltage: 220/3/60 Only Machine Weight: ...more
3" CSM (Chiao Sheng) #CNC75TNCPB, hydraulic tube & pipe bender, 3" OD, 102.44" hydraulic mandrel, center line radius, PLC controller, hydraulic diameter clamp
Category: Tube and Pipe Benders
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Csm
Model: CNC75TNCPB
Maximum OD Capacity, Tube & Pipe: 3” Diameter Maximum Thickness of Wall: 0.118” Center Line Radius (Range): 1.576” ~ 11.82” Mandrel Working Distance (Max): 102.44” Input Voltage: 220VAC / 3 PH Shipping Weight (Approx.): 3,000 lbs.
Wire EDM Machine
2 Results
Fanuc #Robocut-1iB/SAWF, CNC wire Electrical Discharge Machine, Fanuc 180is-WB, 5-Axis, automatic wire threading, submerged cutting
Category: Wire EDM Machine
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Fanuc
Model: ROBOCUT-1IB/SAWF
Maximum Workpiece Dimensions: 40.5” x 28” x 12.2” Maximum Workpiece Weight: 3,550 lbs. Machine Range: 21.7” x 14.6” x 12.2” U/V Travel: +/- 2.364” Resolution:.000004” Wire Diameter:.004” -.012” (.010” Guides) Max. Workpiece AWF Height: 12.0” Wire ...more
Fanuc #Robocut-1iE-SAWF, CNC wire Electrical Discharge Machine, 23.6" x 15.7" x 12.2" capacity, .004"-.012" wire diameter, Fanuc 31i-WA, automatic wire threading,
Category: Wire EDM Machine
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Fanuc
Model: ROBOCUT-1IE-SAWF
Maximum Workpiece Dimensions: 43” x 32” x 12”, Maximum Workpiece Weight: 3,350 lbs. Machine Range: 23.6” x 15.7” x 12.2” U/V Travel: +/- 3.93” Resolution:.000004” Wire Diameter:.004” -.012” (.010” Guides) Max. Workpiece AWF Height: 12.0” Wire ...more
